Configuration Aseptic Pneumatic SS304 SS316 Divert Seat Valve

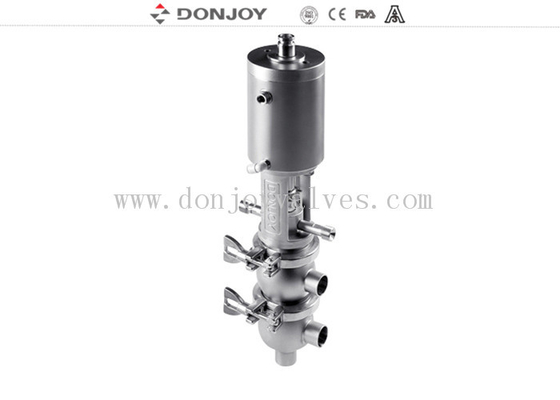

Large Image : Configuration Aseptic Pneumatic SS304 SS316 Divert Seat Valve

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	carton box or wooden box
Delivery Time:	according to order
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	1000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Media:	Liquid	Operate Mode:	Pneumatic
Size:	DN25 - DN100 Or 1" - 4"	Max Pressure:	10 Bar
Structure:	Single Seat Valve	Temperature:	-10℃ To 120℃
Compressured Air:	5-7bar
Highlight:	SS316 Divert Seat Valve , SS304 Divert Seat Valve , SS316 angle seat valve

DONJOY stainless steel 304 316 hygienic sterilization configuration aseptic pneumatic divert seat valve

Specification

Product Name	DONJOY stainless steel 304 316 hygienic sterilization configuration aseptic pneumatic divert seat valve
Material of valve body	SS304 / 316L
Material of seal ring	EPDM
Max. working pressure	10 bar
Max. working temperature	120°C
Size	DN25 - DN100 or 1" - 4"
Connection	Threaded, welded, clamped
Standard	DIN, SMS, RJT, 3A
Operating mode	Manual, Pneumatic, Positioner
Certificate	FDA, CE, ISO
Double stop pneumatic actuator	To adjust the regulator to slow the moving speed of actuator, anti - shocking and lengthen the lifetime
Body seat	double seats
Body type	222type,221type,212type,211type,111type,121type,122type,112type
Feature	CIP/SIP cleaning
Installation	With double stop regulator

Features
The material connected with others: AISI 316L / 1.4404
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Options
Gasket: NBR / MVQ / FPM
The pneumatic actuator of double-acting
Inductive position sensor
C - TOP control head
Position sensor

Air consumption (L/One cycle)

Size	Spring/iar	air/air
85	0.12	0.24
113	0.21	0.42
132	0.45	0.9
180	1.00	2.00

Product drawings

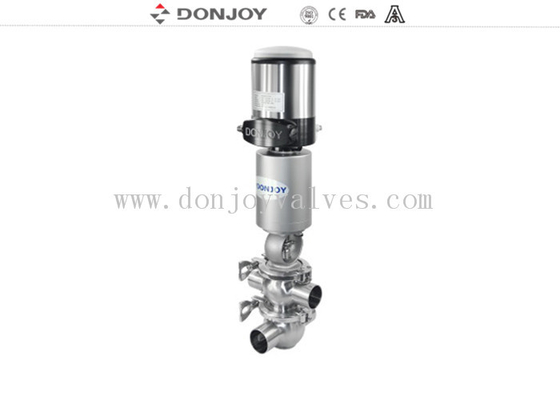

Configuration Aseptic Pneumatic SS304 SS316 Divert Seat Valve 0

Configuration Aseptic Pneumatic SS304 SS316 Divert Seat Valve 1

Configuration Aseptic Pneumatic SS304 SS316 Divert Seat Valve 2
