400mm Tank Manhole Cover

400mm Tank Manhole Cover

400mm Tank Manhole Cover

SUS304 Tank Manhole Cover

400mm round manhole cover

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE/FDA/ISO/3A

Model Number:

NO.ERK211

Contact Us

Request A Quote
Product Details
Brand:
DONJOY
SIZE:
400mm
Pressure:
Non- Pressure
Connection:
Weled, Flange
Polished:
Mirror, Matt
Type:
Round
Handle:
Stainless Steel
Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD54-USD500PC
Packaging Details
Carton, Wooden Case
Delivery Time
5-8 Working Days
Payment Terms
T/T,L/C, Credit Card
Supply Ability
100PCS/Day
Product Description

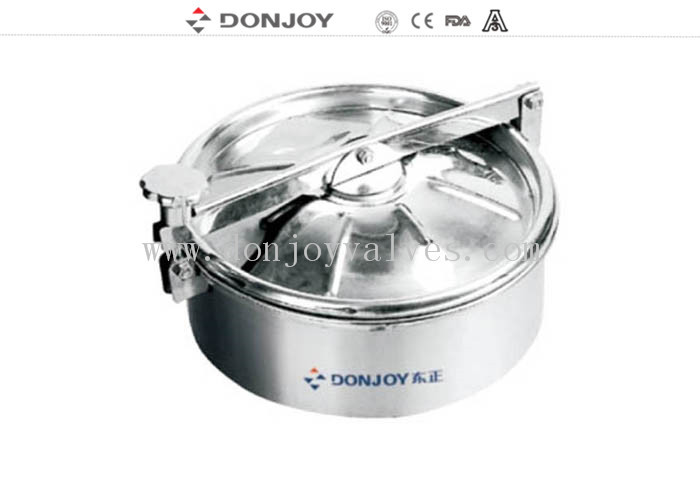

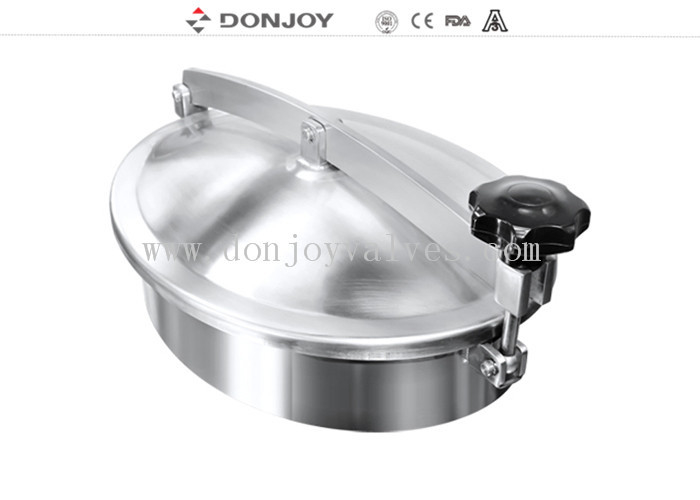

400mm Non-pressure Round Tank Manhole Cover Mirror / Matt Polished with stainless steel handle



Drawing

400mm Tank Manhole Cover 0

400mm Tank Manhole Cover 1

400mm Tank Manhole Cover 2

Tag:
Stainless steel vessels Manhole Cover.
Tank top Cover, Tank side Cover

Quick Detail

Name:

Tank Manhole Cover, Stainless Steel
Manway

Height: 100mm,150mm, 120mm or customer requirement

Type:

Round without Pressure

Polished: Mirror, Mattr,
Ra≤0.8μm,Ra≤0.5μm,320Grit, 180Grit

Size:

φ150,200,250,300,350,400,450,500,600 etc

Place of Origin:

Wenzhou,China


Thickness: 2.0mm,2.5mm,3.0mm
Materials: 1.4301/1.4404,SUS304/SUS316L,
OEM&ODM service: Available
Handle: Plastic, Stainless Steel


Application:
Non-pressure type manhole cover is widely used in food, wine-producing, beverage, and pharmacy industries and so on. Apply to all kinds of atmospheric container or tank to prevent the leakage. And it is Installation on the top of the vessel, tank etc.


Specification

Product Name:

Tank non-pressure manhole cover

Material:

AISI304, AISI316L

Size:

200,220,300,350,400,430,450,500,600,800

Finish:

Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

Connection:

Welded, Flange

Standard:

DIN,3A,SMS,ISO

Certificate:

CE, ISO9001/2008, 3A

Application scope:

Dairy, food, beer, beverage, pharmacy,
cosmetic,Oil,Waste water etc

Packaging Details:

Shrink wrapped - carton - pallet . Or as per the request
of customers


Working Principle:
Non-pressure type manhole cover is joined together to the tank by the hinge, it also can let non-pressure type manhole cover free open and close tightness at the range of 120 degrees by the handle, so it can be easy for the serviceman to check and to operate.


Design standard:
The difference between non-pressure and pressure type manhole cover is the former can only use under normal pressure, so it generally has only one fixed handwheel device, but the sealing is good enough.


Product display
400mm Tank Manhole Cover 3
