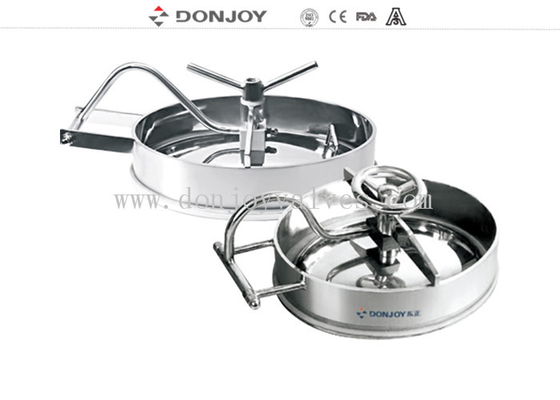

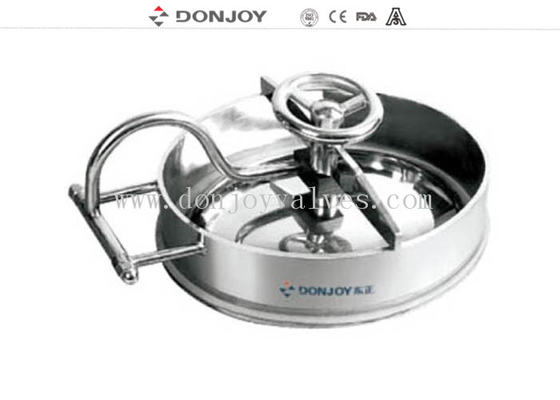

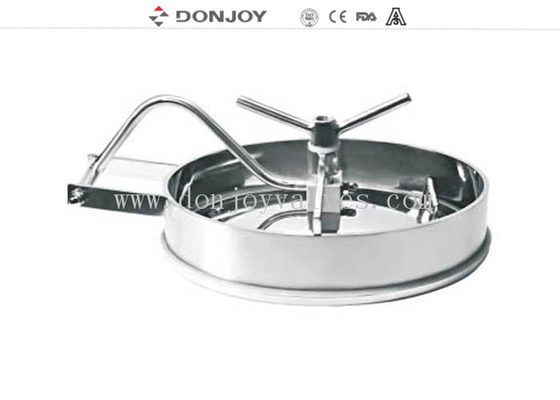

Ss316 Elliptical Pressure Tank Manhole Cover 635mm*525mm

Ss316 Elliptical Pressure Tank Manhole Cover 635mm*525mm

    • Ss316 Elliptical Pressure Tank Manhole Cover 635mm*525mm
    • Ss316 Elliptical Pressure Tank Manhole Cover 635mm*525mm
    • Ss316 Elliptical Pressure Tank Manhole Cover 635mm*525mm
  • Ss316 Elliptical Pressure Tank Manhole Cover 635mm*525mm

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A
    Model Number: NO.ERK311

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton, Wooden Case
    Delivery Time: 5-30 working days
    Payment Terms: T/T,L/C, Credit Card
    Supply Ability: 100pcs/Day
    Contact Now
    Detailed Product Description
    Brand: DONJOY Dimension: 435mm*335mm,530mm*430mm,535mm*435mm,635mm*525mm,
    Stanadard: DIN,3A,SMS,ISO Connection: Weled
    Polished: Mirror, Matt Height: 75-80mm,90-100mm,80-90mm,100-120mm,130-160mm
    High Light:

    ss316 tank manhole cover

    ,

    elliptical tank manhole cover

    ,

    635mm*525mm tank manhole cover

    Stainless Steel 316 Elliptical Pressure Tank Manway with Stainless steel Wheel Inward Opening Manhole Cover


    Quick Detail
    Manhole Cover,Elliptical Manway
    Demission:435mm*335mm,530mm*430mm,535mm*435mm,635mm*525mm
    Height:75-80mm,90-100mm,80-90mm,100-120mm,130-160mm
    Type: Elliptical man hole cover
    Handle: Stainless Steel wheel



    Specifications

    Product Name:

    Tank elliptical pressure manway

    Material:

    AISI304, AISI316L

    Size:

    435mm*335mm,530mm*430mm,535mm*435mm,635mm*525mm

    Finish:

    Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

    Connection:

    Welded

    Standard:

    DIN,3A,SMS,ISO

    Certificate:

    CE, ISO9001/2008, 3A

    Application scope:

    Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste

    water etc

    Packaging Details:

    Shrink wrapped - carton - pallet . Or as per the request of customers



    Drawing

    Ss316 Elliptical Pressure Tank Manhole Cover 635mm*525mm 0

    Size H L1 L2 T
    435*335 75 435 335 8
    530*430 100 530 430 10
    635*525 160 635

    525

    10

    Unit: mm



    Size Tolerance
    200-350 ±1.2
    400-600 ±2

    Unit :mm


    Technical Information:
    Gasket: EPDM,NBR,SILICONE,FPM in accordance with FDA177.1600
    Working Pressure:2-5Bar
    Fineness: inner and outer fineness of mirror Ra≤0.8μm, inner and outer mechanical polish and electrical polish Ra 0.2μm, the external surface can be gross polished or sub-gross polished.
    Application:dairy , food , chemical ,beverage ,pharmaceuticals ,water treatment ,beer etc .It is used as cap on the top of the vessel,tank etc



    Manhole cover optional

    1.Non-pressure round manway

    2.Round pressure manway

    3.Square manway

    4.Elliptical manhole cover

    5.High pressure manhole cover

    6.Pressure manhole cover with sight glass

    7.Glass pressure manway

    8.Mini type square manway


    Question:
    1. What about the delivery time of the manhole cover
    Answer: Normally Takes about 7-10 days
    2.How about the Surface
    Answer: Our standard with mirror inside and outside satin polish side.If you have requirements in Ra,please let me know it.
    3. The height of the square Manhole:
    Answer: Our standard with 65mm Height, 8mm thickness. Or if you have requirements, we also can be according it to custom.
    4.Can you do as a specific size and print our logo on it?
    Answer: Yes, We support specifications customize and personalized customization If you need more information or catalogs,please contact us freely.


    Tag: pressure manhole cover. 5Bar pressure manway, 3Bar pressure tank cover

    Ss316 Elliptical Pressure Tank Manhole Cover 635mm*525mm 1
