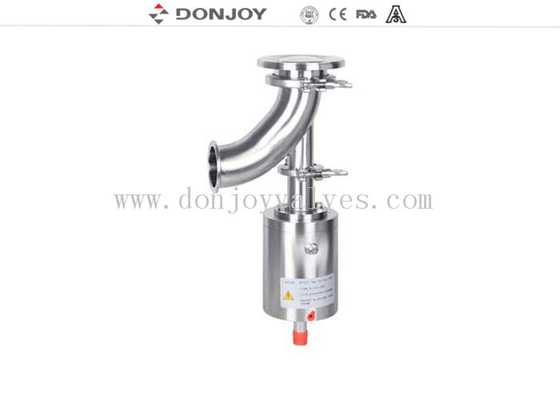

Pneumatic Elbow Single Acting SS316 Flanged Control Valve/ Donjoy Tank bottom valve

Pneumatic Elbow Single Acting SS316 Flanged Control Valve/ Donjoy Tank bottom valve

SS316 flanged control valve

0.8μm flanged control valve

DN100 flanged control valve

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE/FDA/ISO

Model Number:

NO.VKD310Q1

Contact Us

Request A Quote
Product Details
Product Name:
Tank Bottom Valve
Power:
Pneumatic
Material:
SS304/316
Size:
1"-4",DN25-DN100
Pressure:
Medium Pressure
Media:
Food, Beer, Beverage, Dairy Etc.
Internal Surface Finish:
Ra≤0.8μm
Origin:
Wenzhou,China
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
Carton, Wooden Case
Delivery Time
accoding to order
Payment Terms
T/T,L/C, Credit Card
Supply Ability
5000 Piece/Pieces per Month
Product Description

Pneumatic Elbow Single Acting SS316 Flanged Control Valve/ Donjoy Tank bottom valve


Options
1.Manual
2. Steam sterilized(if shaft sterilization is required).
3. Gaskets: NBR or FPM
4. Connections: DIN, Clamp, SMS, RJT, IDF...Flange
5. Double and single acting actuator
6. Air / Spring, Air / Air

7. C-TOP control unit

8.Position sensor

Description

Product Name:

Pneumatic elbow tank bottom valve

Valve Body Material:

SS316L/SS304

Seal Material:

NBR or FPM

Working Pressure:

10 Bar / 145PSI

Max.Working Temperature:

-10℃to +120℃(EPDM)14°F 248° F+140(SPI, max. 30min) 248°F

Available size:

1"-4" DN25-DN100

Available connection:

DIN, Clamp, SMS, RJT, IDF...Flange

Operated:

Air/Spring, Air / Air

Available structure:

Flange type,  elbow type

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Application scope:

Dairy,food processing, beverage, pharmacy, cosmetic, etc

Feature:

Suitable for good mobility medium

Design:

Dead conner minimized design


Applications
The tank bottom seat valve is a pneumatically operated single seat valve, assembled at the bottom of tank, used in diary,food processing, beverage, pharmaceutical and fine chemical industries.



Operating Principle

1. Operated by air/spring, air/air

2. Compressed air push shaft to open and close valve

3. Valve structure: Valve seat opens construction inside so that it can avoid pushing when the pipeline is over pressure



Design and features

1. 3A design

2. Complete discharge system avoids retention

3. Normally closed valve(close by spring)-standard version

4. Normally open valve (open by spring) by a 180 degree rotating of the pneumatic actuator

5. The valve seat opens into the tank to avoid accidental openings.

6. 360 degree adjustable body, even after welding the flange to the tank.

7. Open lantern for visual inspection of the shaft sealing

8. Easy disassembly by loosening the clamp

9. Connections: clamp


Certificate
Donjoy manufacture products certified by 3A,CE,FDA and so on, according to GMP, EHEDG standard. Production strictly enforces ISO9001-2008 management system.


Target of competition
Donjoy ‘s vision is to become a leading supplier in fluid control, high purity sanitary valve &pump fields, with advanced technology and excellent quality.


Application scope:
Dairy, food, beverage, cosmetics, chemical,.etc.


Packaging details:
Bubble pack for each valve, outside packing is carton or plywood cases. Or as per the request of customer.


Delivery time:
Usually within 20days after T/T down payments.


Technical data

Pneumatic Elbow Single Acting SS316 Flanged Control Valve/ Donjoy Tank bottom valve 0

Pneumatic Elbow Single Acting SS316 Flanged Control Valve/ Donjoy Tank bottom valve 1

Pneumatic Elbow Single Acting SS316 Flanged Control Valve/ Donjoy Tank bottom valve 2
