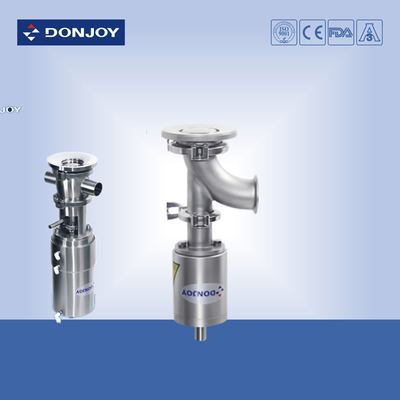

Professional sanitary Flush Tank Bottom Valve with CE FDA Certification

Professional sanitary Flush Tank Bottom Valve with CE/FDA Certification

Technical specifications
1. Size: DN25-DN100 1”-4”
2. Working temperature: -10℃to +120℃ (EPDM)14°F 248° F+140(SPI, max. 30min) 248°F
3. Max. Working pressure: 10bar / 145PSI
4. Compressed air pressure: 6-8bar / 87-116PSI
5. Air supply connections: G1/8” (BSP)

Description


Application scope:
Dairy, food, beverage,cosmetics, chemical,.etc.

Packging details:
Bubble pack for each valve, outside packing are carton or plywood cases. Or as per the request of customer.

Delivery time:
Usually within 20days after T/T down payments.

Design and features
1. 3A sanitary design
2. Complete discharge system avoids retention
3. Normally closed valve (closed by spring) -standard version
4. Normally open valve (opened by spring) by a 180 degree rotating of the pneumatic actuator
5. The valve seat opens into the tank to avoid accidental openings.
6. 360℃adjustable body, even after welding the flange to the tank
7. Open lantern for visual inspection of the shaft sealing
8. Easy disassembly by loosening the clamp
9. Connections: clamp/weld

Options
Manual
Steam sterilized(if shaft sterilisation is required).
C-top control unit
Internal surface finish: Ra ≤0.5μm
Gaskets: NBR or FPM
Connections: DIN, Clamp, SMS, RJT, IDF...Flange
Double and single acting actuator
Air / Spring, Air / Air

Target of competition
Donjoy ‘s vision is to be become leading supplier in fluid control, high purity sanitary valve &pump fields, with advanced technology and excellent quality.

Technical data

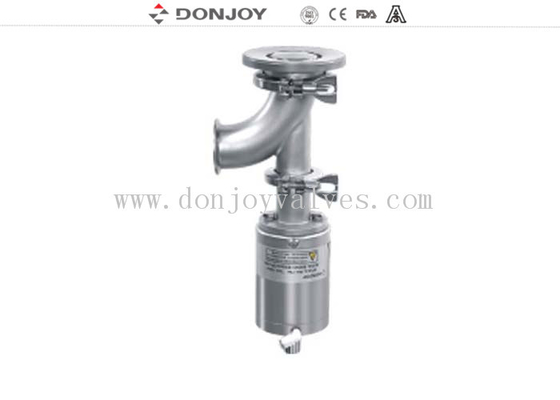

Product display
