SS304 And SS316L Stainless Steel Sanitary Manual Tank Bottom Seat Valve 90 Elbow Type

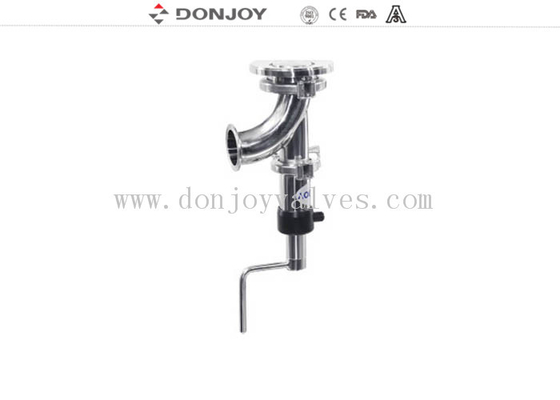

Large Image : SS304 And SS316L Stainless Steel Sanitary Manual Tank Bottom Seat Valve 90 Elbow Type

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO
Model Number:	NO.VKD310Q1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	Carton, Wooden Case
Delivery Time:	accoding to order
Payment Terms:	T/T,L/C, Credit Card
Supply Ability:	5000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Product Name:	Elbow Type Tank Bottom Valve	Power:	Manual
Material:	316L	Size:	1.5"-4"; DN40- DN100
Pressure:	Medium Pressure	Connections:	Welded /clamp /thread /flange
Gasket:	EPDM / VITION / HNBR
Highlight:	flush bottom tank valve , single seat valve

SS304 And SS316L Stainless Steel Sanitary Manual Tank Bottom Seat Valve 90 Elbow Type

Description

Product Name:	Mixing-proof Tank Bottom Valve for preventing two medium from mixing
Valve Body Material:	SS316
Working Pressure:	10 Bar / 145PSI
Max.Working Temperature:	-10℃to +120℃(EPDM)
Available size:	1.5"-4" DN40-DN100
Available connection:	DIN, Clamp, SMS, RJT, IDF...Flange
Operated:	Air/Spring, Air / Air
Application scope:	Dairy,food processing, beverage, pharmacy, cosmetic, etc

Design and features
1. 3A sanitary design
2. Complete discharge system avoids retention
3. Normally closed valve (closed by spring) -standard version
4. Normally open valve (opened by spring) by a 180 degree rotating of the pneumatic actuator
5. The valve seat opens into the tank to avoid accidental openings.
6. 360℃adjustable body, even after welding the flange to the tank
7. Open lantern for visual inspection of the shaft sealing

Operation principle
1. Operated by Air/Spring, Air / Air
2. Compressed air push shaft to open and close valve
3. Valve structure: Valve seat opens construction inside so that it can avoid pushing when pipeline is over pressure
4. Parts in contact with the products: AISI 316L,AISI 304
5. Other parts: AISI 304
6. Gaskets (standard): EPDM according to FDA 177.2600
7. Internal surface finish: Ra≤0.8μm
8. External surface finish: Mirror polish

Products drawings

SS304 And SS316L Stainless Steel Sanitary Manual Tank Bottom Seat Valve 90 Elbow Type 0
