| Place of Origin: | China |
| Brand Name: | DONJOY |
| Certification: | CE,3A,FDA |
| Model Number: | NO. |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 10-30 working days |
| Payment Terms: | T/T, LC, Credit Card |
| Supply Ability: | 20 sets 30 working days |
| Product Name: | Pneumatic Wafer Type Butterfly Valve | Materials: | 304 / 316L |
|---|---|---|---|
| Size: | 1.5 Inch - 8 Inch | Operation Mode: | Pneumatic |
| Structure: | Pneumatic Type | ||
| High Light: | EPDM Gasket Butterfly Valves,Wafer Type Butterfly Valves,Pneumatic 8 Inch Butterfly Valves |
||

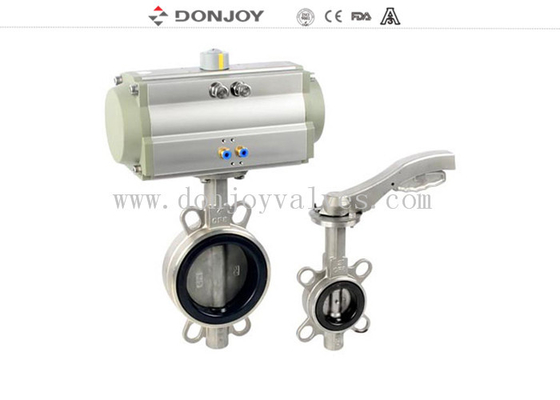

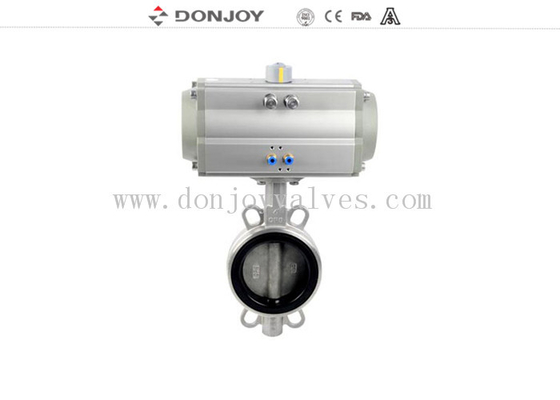

8 inch industrial stainless steel wafer type butterfly valve EPDM gasket with aluminum actuator
Specifications
|
Product Name: |
Wafer type butterfly valve |
|
Valve Body Material: |
SS304/316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Max Working Pressure: |
5Bar |
|
Max.Working Temperature: |
120 degree C |
|
Available size: |
1.5''-8'', DN40-DN200 |
|
Available connection: |
Clamp/welding/thread/special connection |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Manual,Pneumatic, Electric |
|
Handle application: |
stainless steel handle |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Installation: |
Could be installed on various valves |
|
Delivery time: |
10-30 working dats after receive payment |
Handle selection
Stainless steel handle
.
Packaging Details
Bubble pack for each valve.
Outside packings is carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
