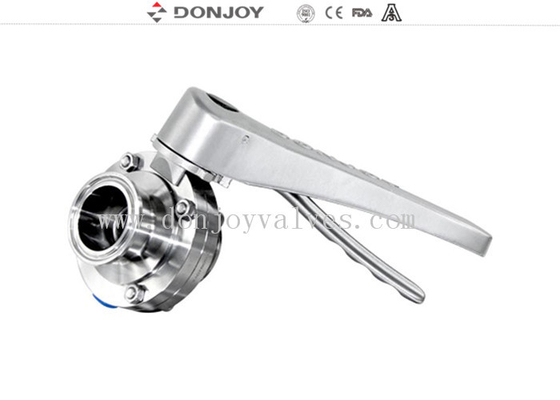

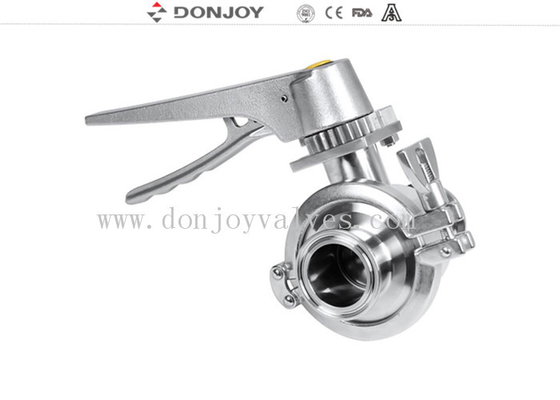

Sanitary 10 inches stainless steel clamp connection butterfly valves ss multi-position handle white vition gasket
Specifications
|
Product Name: |
Sanitary stainless steel clamp ends butterfly valve |
|
Valve Body Material: |
SS304/316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Max Working Pressure: |
10Bar |
|
Max.Working Temperature: |
120 degree C |
|
Available size: |
1''-12'', DN25-DN300 |
|
Available connection: |
Clamp/welding/thread/special connection |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Manual,Pneumatic, Electric |
|
Handle application: |
Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Installation: |
Could be installed on various valves |
|
Multi - position handle: |
Of different level which could be chosen according to your requirement |
Drawing
Technical specification
1.Max pressure:10bar 1/2",DN10-DN300,5 bar (DN200/DN300)
2.Min.pressure:0.2 bar p.abs
3.Operation temperature:-10℃ to 120 ℃ (EPDM)
4.DONJOY has more than 20 years of experience in the production of butterfly valves, to ensure the best performance and best application choice for each butterfly valve. We can provide customers with the best configuration plan.
5.The valve body and valve plate adopts the integral forging process, and the CNC cutting center is processed at one time to ensure the machining accuracy of each valve body.
6.Sealing imported from Europe, meet with FDA177.2600; 3-A-18-03
7.The butterfly valves we produce are of various styles, and the manual, pneumatic and electric are interchangeable. Each pneumatic can be equipped with a control unit, position feedback, valve positioner, and other configuration requirements for different needs. Various manual styles can be interchanged without additional accessories
Advantage
We have produced more than 2.5 million butterfly valves so far
Handle selection
Two-position handle;
Three-position handle;
Four-position pull handle;
Multi-position plastic handle;
Multi-position stainless steel handle
Connection
Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
