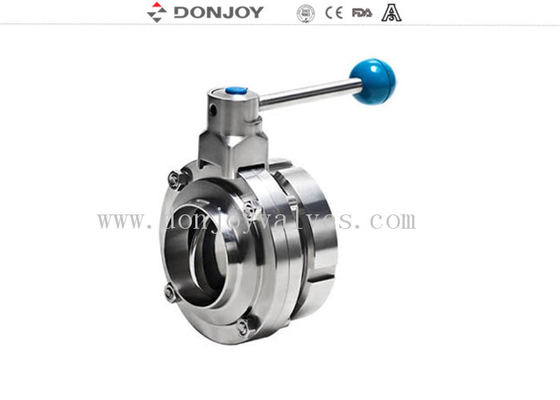

1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve

1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve

  • 1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve
  • 1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve
  • 1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve
1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve
Product Details:
Place of Origin: China
Brand Name: DONJOY
Certification: CE,3A,FDA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Delivery Time: 5-30 working days
Payment Terms: T/T, LC, Credit Card
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Product Name: SS Butterfly Valve Materials: 304 / 316L
Size: 1 Inch - 12 Inch/DN25-DN300 Operation Mode: Manual
Connection: Clamp Ends Structure: Butterfly
Level: Stainless Steel Pull Handle
High Light:

Sanitary Butterfly Tri Clamp Valve

,

Silicone Gasket Tri Clamp Valve

,

1.5" Clamp Type Butterfly Valves

Sanitary Butterfly Tri Clamp Valve with Silicone Gasket SUS304 1.5 Inch Tri Clamp Clover Type (1.5" Tube OD)

Specifications

Product Name:

Sanitary butterfly tri clamp valve with silicone gasket

Valve Body Material:

SS304/316L

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Max Working Pressure:

10Bar

Max.Working Temperature:

120 degree C

Available  size:

1''-12'', DN25-DN300

Available connection:

Clamp/welding/thread/special connection

Available standard:

3A/DIN/SMS/RJT/ISO/IDF

Operated:

Manual,Pneumatic, Electric

Handle application:

Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Installation:

Could be installed on various valves


Multi - position handle:

Of different level which could be chosen according to your requirement


Drawing
1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve 0
1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve 1


Technical specification
1.Max pressure:10bar 1/2",DN10-DN300,5 bar (DN200/DN300)
2.Min.pressure:0.2 bar p.abs
3.Operation temperature:-10℃ to 120 ℃ (EPDM)
4.DONJOY has more than 20 years of experience in the production of butterfly valves, to ensure the best performance and best application choice for each butterfly valve. We can provide customers with the best configuration plan.
5.The valve body and valve plate adopts the integral forging process, and the CNC cutting center is processed at one time to ensure the machining accuracy of each valve body.
6.Sealing imported from Europe, meet with FDA177.2600; 3-A-18-03
7.The butterfly valves we produce are of various styles, and the manual, pneumatic and electric are interchangeable. Each pneumatic can be equipped with a control unit, position feedback, valve positioner, and other configuration requirements for different needs. Various manual styles can be interchanged without additional accessories
8.Full degreasing treatment
9.All accessories are forged

Advantage
We have produced more than 2.5 million butterfly valves so far

Handle selection
Two-position handle;
Three-position handle;
Four-position pull handle;
Multi-position plastic handle;
Multi-position stainless steel handle

1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve 2
Connection
Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve 3
1.5" Silicone Gasket Sanitary Butterfly Tri Clamp Valve 4
