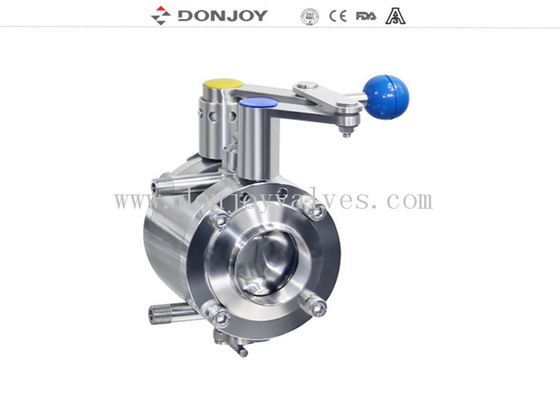

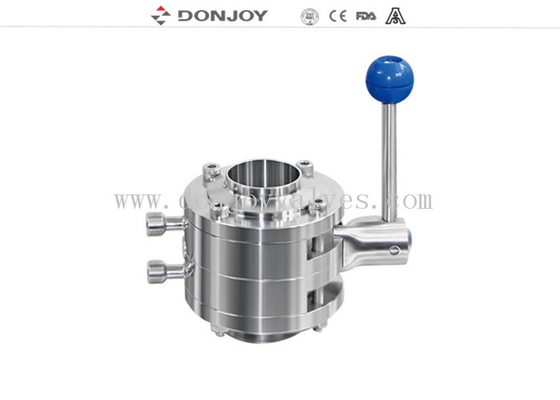

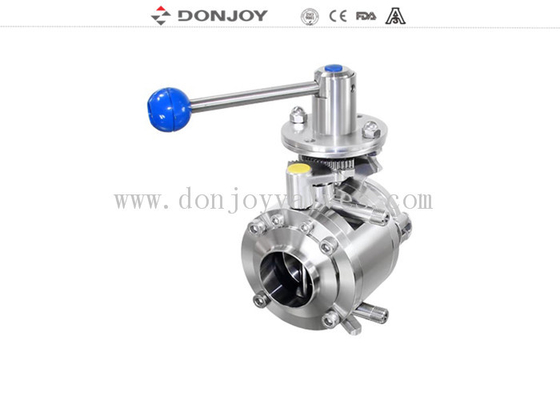

DONJOY Economy Stainless steel sanitary mixproof butterfly valve B type for home brewing
Technical Specifications:
1 valve 2 seal protection
Leakage can be drained to prevent media contamination
Valve cavity can be CIP cleaned
Leaked visible
Max.Pressure: 10Bar(DN25-DN100), 8Bar (DN125-DN150), 5Bar( DN200-DN300)
Working Temperature: -10C° to +130 Degree( EPDM)
Size:DN25 - DN100, 1" - 4"
Operating: Pneumatic/manual interchangeable
Control box:C-TOP
Seal:EPDM (standard) FPM/SILICON/NBR,FDA177.2600
Specifications:
|
Product Name: |
Welding manual mixproof butterfly valve B type |
|
Valve Body Material: |
SS304/316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
MaxWorking Pressure: |
10Bar |
|
Max.Working Temperature: |
120 degree C |
|
Available size: |
DN25-DN100, 1"-4" |
|
Available connection: |
Clamp/welding/thread/special connection |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Manual,Pneumatic, Electric |
|
Handle application: |
Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Model of plastic multi - position handle: |
NO. VSB04 / NO.VSB06 / NO.VSB08 |
|
Installation of handle: |
On one side of valve |
Operating Principles
1.The butterfly Valve can be Operated automatically Through actuator or manually with the handle
2.The handle blocks the valve in the Open or Closed Position, Certainly, there are the other postion avalibalbe
3.The actuator push the piston of axial movement into 90Degree so that it controls butterfly valve.
Design and Features
Application
The mixproof butterfly valve as a process element for the separation of media is suitable for a variety of applications:
1 In CIP systems for separating CIP media
2. In flush-out processes
3. In water management
4. As pipe section shut-off valve for separating media
5. In CIP/Gas management (breweries)
6. At storage tanks for separating product/CIP
7. As CIP return valve in a valve matrix
8. Preferably suitable for liquid and gaseous media whtout suspended matter/particles.
Connection
Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
Operating Torque(N.M)
|
DN25/1” |
DN40/1.5” |
DN50/2” |
2.5” |
DN65 |
3” |
DN80 |
DN100/4” |
DN125 |
DN150 |
|
3 |
4 |
5 |
10 |
12 |
14 |
18 |
25 |
40 |
55 |
Various handle:
1. Pull Handle
2.Multi-Position Handle(Blue Plastic)
3.Multi-Position Handle (Stianless Steel) Lockable
|
Size |
L1 |
L2 |
B |
 |
|
|
DN10-DN40 |
0.5-1.5” |
126 |
20.2 |
8 |
|
|
DN50 |
2” |
133 |
22.2 |
10 |
|
|
DN65 |
2.5-3” |
144 |
22.2 |
10 |
|
|
DN80-DN100 |
3.5-4” |
160 |
22.2 |
11 |
|
|
DN125-DN150 |
5-6” |
220 |
30.2 |
14 |
|
|
DN200-DN300 |
8-12” |
284 |
30.2 |
14 |
|
Size |
L1 |
L2 |
B |
|
|
|
DN10-DN40 |
0.5-1.5” |
164 |
20.2 |
8 |
|
|
DN50-DN65 |
2”-3” |
164 |
22.2 |
10 |
|
|
DN80-DN100 |
3.5-4” |
164 |
22.2 |
11 |
|
Size |
L1 |
L2 |
B |
|
|
|
DN10-DN40 |
0.5-1.5” |
166 |
20.2 |
8 |
|
|
DN50-DN65 |
2”-3” |
166 |
22.2 |
10 |
|
|
DN80-DN100 |
3.5-4” |
166 |
22.2 |
11 |
|
|
DN125-DN150 |
5”-6” |
166 |
30.2 |
14 |
