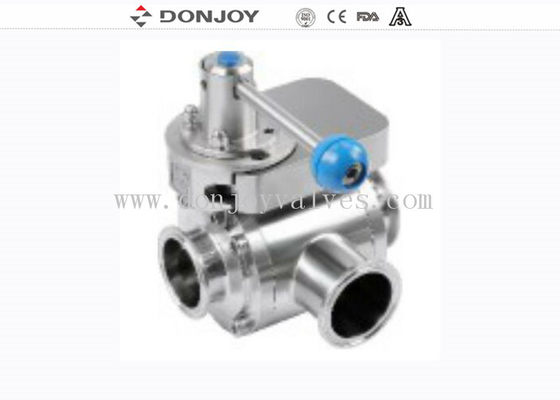

1.5 Inch Tri Clamp Ends Manual SS304 3 Way Butterfly Valves

1.5 Inch Tri Clamp Ends Manual SS304 3 Way Butterfly Valves

  • 1.5 Inch Tri Clamp Ends Manual SS304 3 Way Butterfly Valves
  • 1.5 Inch Tri Clamp Ends Manual SS304 3 Way Butterfly Valves
1.5 Inch Tri Clamp Ends Manual SS304 3 Way Butterfly Valves
Product Details:
Place of Origin: China
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO.
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Delivery Time: 5-30 working days
Payment Terms: T/T, LC, Credit Card
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Product Name: 3 Way Butterfly Valve Materials: 304 / 316L
Size: 1'' - 6'', DN25 - DN150 Operation: Manual
Connection: Clamp Ends Structure: With Pull Handle
Feature: 3 Way Type Valve Body: Butterfly
High Light:

SS304 3 Way Butterfly Valves

,

Tri Clamp Ends Butterfly Valves

,

DN150 Butterfly Valves

DONJOY stainless steel 304 manual 3 way butterfly valve tri clamp ends 1.5 inches



Specifications

Product Name:

Three-way butterfly valve with pull handle

Valve Body Material:

SS304/316L

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Pressure:

Vacuum to 10Bar

Temperature:

-20 degree to 130 degree,depending on the seal material

Available  size:

1''-6'', DN25-DN150

Available connection:

Clamp/welding/thread/special connection

Available standard:

3A/DIN/SMS/RJT/ISO/IDF

Operated:

Manual,Pneumatic, Electric

Handle application:

Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position

stainless steel handle

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Structure:

3 ports with 1 handle

Feature:

The valve body of various connections could be displaced.



Drawing

1.5 Inch Tri Clamp Ends Manual SS304 3 Way Butterfly Valves 0

1.5 Inch Tri Clamp Ends Manual SS304 3 Way Butterfly Valves 1

1.5 Inch Tri Clamp Ends Manual SS304 3 Way Butterfly Valves 2

Synchronous three-way butterfly valve:

One drive device can realize L type and T type three-way applications, opening and closing synchronization, low torque,long life, non-retention,

no dean angles, very flexible function combination,and it is efficient, economical and simple

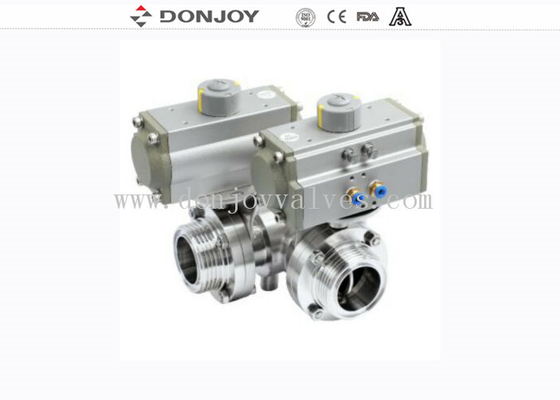

Asynchronous three way butterfly valve:

Multiple drive devices,each drive independently and freely control the valve



Handle selection
Two-position handle;
Three-position handle;
Four-position pull handle;
Multi-position plastic handle;
Multi-position stainless steel handle;


Connection
Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.


Delivery details
Usually within 20 days after receiving T/T down payment.


Description
Please check the picture below for detailed information.



FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in a plywood case or carton package for small parts.
If delivery by sea,the package is wooden box.



Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery

T/T in advance, 50% as deposit, and finish 50% balance payment before delivery

100% TT in advance



Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.



Q4. How about your delivery time?
A: Generally, it will take 3 to 40 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.



Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery



1.5 Inch Tri Clamp Ends Manual SS304 3 Way Butterfly Valves 3



1.5 Inch Tri Clamp Ends Manual SS304 3 Way Butterfly Valves 4

1.5 Inch Tri Clamp Ends Manual SS304 3 Way Butterfly Valves 5
