Manual SS316L DN50 Pneumatic 3 Way Butterfly Valves

Manual SS316L DN50 Pneumatic 3 Way Butterfly Valves

    • Manual SS316L DN50 Pneumatic 3 Way Butterfly Valves
    • Manual SS316L DN50 Pneumatic 3 Way Butterfly Valves
  • Manual SS316L DN50 Pneumatic 3 Way Butterfly Valves

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Delivery Time: 5-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 500pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 3 Way Butterfly Valve Materials: 304 / 316L
    Size: 1'' - 6'', DN25 - DN150 Operation: Manual
    Connection: Clamp Ends Structure: Pneumatic Type
    Feature: 3 Way Type Valve Body: Butterfly
    High Light:

    SS316L 3 Way Butterfly Valve

    ,

    DN50 3 Way Butterfly Valves

    ,

    FDA Pneumatic Butterfly Valves

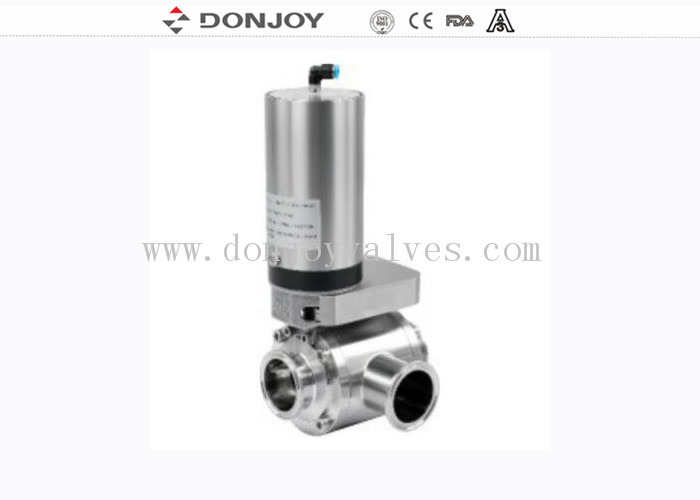

    DONJOY stainless steel 304 Pneumatic 3 way butterfly valve tri clamp ends DN50

    Specifications

    Product Name:

    Pneumatic Three-way butterfly valve

    Valve Body Material:

    SS304/316L

    Seal Material:

    EPDM (standard) FPM/SILICON/NBR, FDA177.2600

    Pressure:

    Vacuum to 10Bar

    Temperature:

    -20 degree to 130 degree,depending on the seal material

    Available  size:

    1''-64', DN25-DN100

    Available connection:

    Clamp/welding/thread/special connection

    Available standard:

    3A/DIN/SMS/RJT/ISO/IDF

    Operated:

    Manual,Pneumatic, Electric

    Handle application:

    Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position

    stainless steel handle

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc

    Structure:

    3 ports with 1 handle

    Feature:

    The valve body of various connections could be displaced.



    Drawing

    Manual SS316L DN50 Pneumatic 3 Way Butterfly Valves 0

    Manual SS316L DN50 Pneumatic 3 Way Butterfly Valves 1

    Manual SS316L DN50 Pneumatic 3 Way Butterfly Valves 2



    Type

    1.Manual three way butterfly valve

    2.Pneumatic three way butterfly valve

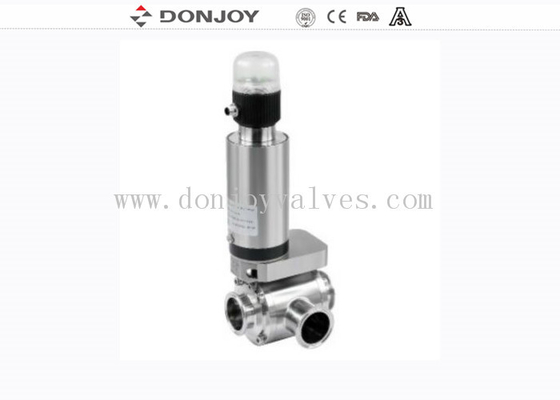

    3.Pneumatic three way butterfly valve+feedback device

    4.Pneumatic three way butterfly valve+controller

    5.Pneumatic three way butterfly valve + valve positioner



    Synchronous three-way butterfly valve:

    One drive device can realize L type and T type three-way applications, opening and closing synchronization, low torque,long life, non-retention,

    no dean angles, very flexible function combination,and it is efficient, economical and simple



    Asynchronous three way butterfly valve:

    Multiple drive devices,each drive independently and freely control the valve


    Connection
    Clamped, welded and threaded etc.
    Packaging Details
    Bubble pack for each valve.
    Outside packing is carton or plywood cases.
    Or as per the request of customers.


    Delivery details
    Usually within 20 days after receiving T/T down payment.


    Description
    Please check the picture below for detailed information.



    FAQ

    Q1. What is your terms of packing?
    A: Generally, we pack our goods in a plywood case or carton package for small parts.
    If delivery by sea,the package is wooden box.



    Q2. What is your terms of payment?
    A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery

    T/T in advance, 50% as deposit, and finish 50% balance payment before delivery

    100% TT in advance



    Q3. What is your terms of delivery?
    A: EXW, FOB, CIF, DDU.



    Q4. How about your delivery time?
    A: Generally, it will take 3 to 40 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



    Q5. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings.



    Q6.Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery



    Manual SS316L DN50 Pneumatic 3 Way Butterfly Valves 3



    Manual SS316L DN50 Pneumatic 3 Way Butterfly Valves 4

    Manual SS316L DN50 Pneumatic 3 Way Butterfly Valves 5
