    Detailed Product Description
    Product Name: SS Pneumatic Tank Bottom Diaphramg Valve Materials: SS316L / 1.4404
    Size: 1'' - 4'', DN25 - DN100 Operation: Pneumatic
    Connection: Weld Gasket: EPDM + PTFE
    Structure: Three Ports With One Or Two Control Valve Application: Be Installed On Tank
    High Light:

    Bottom Sanitary Diaphragm Valve

    ,

    Pneumatic Tank Sanitary Diaphragm Valve

    ,

    SS316L Sanitary Diaphragm Valve

    SS316L Pneumatic Tank Bottom Sanitary Diaphragm Valve with EPDM/PTFE FDA Gasket



    Description:

    Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygiene andaseptic processes in the pharmaceutical industries.

    The valve is excellent for flow control as well as open/close control

    The diaphragm valves are better in feature of flow in comparison with other valves.
    It is eaiser to clean up and better to process the substance with particles.
    The phenomenon of air pocket is rare during application of flow control.



    Specifications

    Product Name:

    Pneumatic Tank Bottom Valve with Stainless Steel  Actuator


    Diaphragm

    Single diaphragm:sillcone/EPDM/FPM gasket

    One piece adhesive diaphragm: PTFE+EPDM

    Two pieces: PTFE+EPDM

    Mini-type: single (EPDM/ SILICONE/ FPM)

    Double(PTFE+EPDM)

     Max.Working Temperature:

     -30degree c to 130 degree c (depending on diaphragm)

     Max.Working Pressure:

    6 bar to 8 bar(depending on diaphragm)

     Valve body

    Casting body or forging body 1.4404/316L

     Available size:

    DN25-DN100, 1 inch- 4 inch

     Available connection:

    Clamp / welding / special connection

     Available standard:

    3A /BPE / DIN / ISO / IDF

     Operation:

    Manual, Pneumatic

     Available structure:

    tank bottom valve, tank bottom valve with sampling valve

     Control:

    Smart valve positioner / C-TOP control / position sensor

     Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

     Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc


    Structure

    Three ports with two control valves

    Three ports with one control valves

    Body type

    MG-32A,MG-31A,M-32B



     Various configuration of Diaphragm valve
    Pneumatic Operation

    1.Stainless steel actuator
    2. Plastic actuator

    3. IL-TOP positioner

    4. C-TOP controller

    5. Positioner sensor

    Manual Operation
    6. Plastic Handle
    7. Stainless steel handle
    Valve Body Material
    8. Body: Casting / Forging
    Valve positioner Technical specifications:

    Size:1"-4",DN20-DN100

    Power supply:DC 24V

    Signal input:0/4-20mA, 0-5/10V(standard)

    Output feedback:4-20mA, 0-10V(option)

    Bus: DEVICE NET BUS

    Actuator:plastic and stainless steel

    grade: IP67



    Product drawing

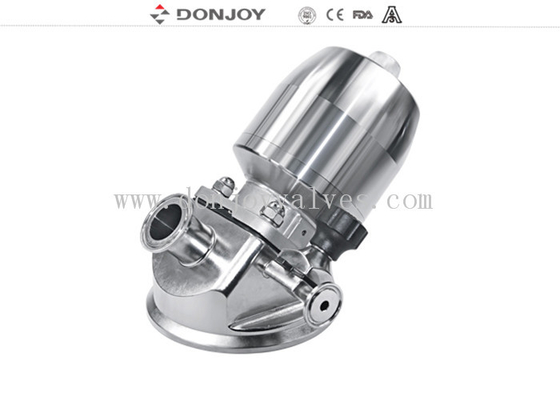

    SS316L  Sanitary  Pneumatic Tank Bottom Diaphragm Valve 0



    SS316L  Sanitary  Pneumatic Tank Bottom Diaphragm Valve 1
    Product display

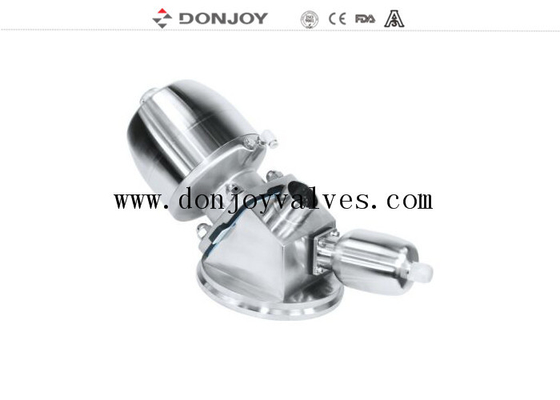

    SS316L  Sanitary  Pneumatic Tank Bottom Diaphragm Valve 2
    Tag: Diaphragm valve, Pneumatic valve, Tank bottom valve
