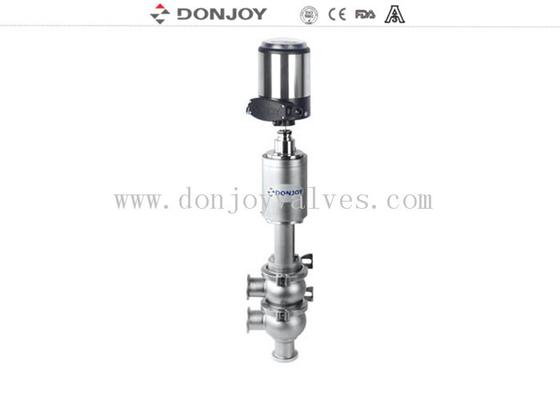

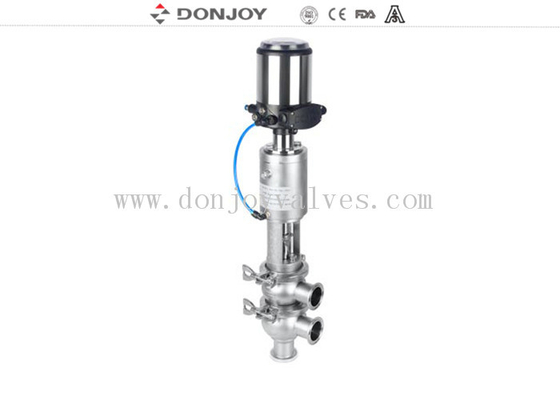

TL Type 316L Sanitary Reversing Seat Valve With Control Head

TL Type 316L Sanitary Reversing Seat Valve With Control Head

    • TL Type 316L Sanitary Reversing Seat Valve With Control Head
    • TL Type 316L Sanitary Reversing Seat Valve With Control Head
  • TL Type 316L Sanitary Reversing Seat Valve With Control Head

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: 21 Type

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: carton box
    Delivery Time: according to order
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 1000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Material: SS304 / 316L Media: Water Etc.
    Operate Mode: Pneumatic Size: DN25 - DN150 Or 1" - 6"
    Pressure: Medium Pressure Valve Seat: Single Seat
    Structure: With Pneumatic Actuator Surface Finish: Sandblast Or Mirror Polishing
    High Light:

    Sanitary Reversing Seat Valve

    ,

    316L Reversing Seat Valve

    ,

    TL Type Reversing Seat Valve

    316L sanitary reversing Single seat valve TL Tpye with control head



    Specification

    Product Name:

    sanitary reversing seat valve with pneumatic actuator

    Valve Body Material:

    304 / 316L

    Seal Material:

    EPDM (standard) FPM/SILICON/NBR, FDA177.2600

    Max Working Pressure:

    10 bar

    Max.Working Temperature:

    130°C

    Available size:

    DN25 - DN150 or 1" - 6"

    Available connection:

    Clamp / welding / thread / special connection

    Available standard:

    3A / DIN / SMS / RJT / ISO / IDF

    Operated:

    Pneumatic

    Design

    The stem can be completely cleaned

    Stem wash

    Stem can be sterilized by cleaning fluid or steam

    Function

    Have all function of standard divert seat valve

    Body seat

    Single seat

    Structure

    Aseptic type

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO



    Application

    ● pneumatic divert seat valve with control unit is a hygienic single seat pneumatically operated valve which has been widely used in the food processing industry, beverage production of pharmaceutical and fine chemical industries.
    ● The seat valve automatically operated by a single or double acting pneumatic actuators with compressed air to push the shaft to locate the valve open or closed position.
    ● single-acting cylinder actuators rotate 180 degrees to achieve a valve normally open and normally closed.

    Technical specifications

    ● Size: DN25 / 1 "to DN100 / 4"
    ● Temperature: 130 ℃
    ● Pressure: 10bar
    ● air supply: 4-7bar
    ● Material: ASTM 304 / 1.4301,316L / 1.4404
    ● Seal: EPDM, FPM, HNBR, FDA177.2600
    ● Processing: Ra <0.8μm
    ● Certificate: 3-A-53-06, PED / 97/23 / EC, FDA177.2600
    Control unit:
    ● Power: DC 24V ± 10%
    ● Single acting (standard), double acting (option)
    ● Self-tuning Valve position feedback function
    ● Supports analog signal (4-20mA) & electrical (DC24V) Output
    ● Support for AS-I BUS
    ● Supports manual and automatic operation

    Material
    The material connected with others: AISI 316L / 1.4404
    The material in other part: AISI 304
    Seal ring: EPDM FDA 177.2600
    Inernal surface finish: Ra ≤ 0.8μm
    External surface finish: CNC fine machining


    Certificate
    3A/54-02 (1580),PED/97/23/EC,FDA.177.2600, ISO



    Drawing

    TL Type 316L Sanitary Reversing Seat Valve With Control Head 0

    Conbine of the valve body

    TL Type 316L Sanitary Reversing Seat Valve With Control Head 1

    TL Type 316L Sanitary Reversing Seat Valve With Control Head 2

    TL Type 316L Sanitary Reversing Seat Valve With Control Head 3

    TL Type 316L Sanitary Reversing Seat Valve With Control Head 4

    If you need more information please contact us directly
