T Type Pneumatic Actuator Divert Reversing Seat Valve

T Type Pneumatic Actuator Divert Reversing Seat Valve

  • T Type Pneumatic Actuator Divert Reversing Seat Valve
  • T Type Pneumatic Actuator Divert Reversing Seat Valve
T Type Pneumatic Actuator Divert Reversing Seat Valve
Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: Tee Type
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: carton box
Delivery Time: according to order
Payment Terms: T/T, LC, Credit Card
Supply Ability: 1000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Material: SS304 / 316L Media: Water Etc.
Operate Mode: Pneumatic Size: DN25 - DN150 Or 1" - 6"
Pressure: Medium Pressure Valve Seat: Single Seat
Structure: With Pneumatic Actuator Surface Finish: Sandblast Or Mirror Polishing
High Light:

Divert Reversing Seat Valve

,

Pneumatic Actuator Reversing Seat Valve

,

T Type Reversing Seat Valve

Divert Seat Reversing Stainless Steel Pharmaceutical Pneumatic Valve T type with Il-Top



Specification

Item Stainless Steel Pneumatic Divert Seat Reversing Valve
Size DN25-DN100,1"-4"
Working temperature -10ºC to 120ºC EPDM, (140ºC for SIP,max 30min)
Working pressure 10 bar, 145 psi
Compressed air pressure 5.0-7.0 bar
Air connection G1/8" (BSP)
Internal surface finish Ra<0.8um
External surface finish Sandbalst or mirror polish
Material AISI316L/AISI304
Gasket (standard) EPDM in compliance with FDA 177.2600
Gasket (option) FPM in compliance with FDA 177.2600
Connections DIN, SMS, RJT, IDF
Normal pneumatic operation Single acting pneumatic actuator
Optional pneumatic operation Double acting pneumatic actuator
Option 2 External position sensor
Option 3 Steam barrier (if shaft sterilisation is required)
Option 4 Body jacket insulation
Option 5 Valve position regulator
Option 6 Double stop actuator
Option 7 Diaphragm type valve cavity
Option 8 C-TOP control unit.

Application

● pneumatic divert seat valve with control unit is a hygienic single seat pneumatically operated valve which has been widely used in the food processing industry, beverage production of pharmaceutical and fine chemical industries.
● The seat valve automatically operated by a single or double acting pneumatic actuators with compressed air to push the shaft to locate the valve open or closed position.
● single-acting cylinder actuators rotate 180 degrees to achieve a valve normally open and normally closed.

Technical specifications

● Size: DN25 / 1 "to DN100 / 4"
● Temperature: 130 ℃
● Pressure: 10bar
● air supply: 4-7bar
● Material: ASTM 304 / 1.4301,316L / 1.4404
● Seal: EPDM, FPM, HNBR, FDA177.2600
● Processing: Ra <0.8μm
● Certificate: 3-A-53-06, PED / 97/23 / EC, FDA177.2600
Control unit:
● Power: DC 24V ± 10%
● Single acting (standard), double acting (option)
● Self-tuning Valve position feedback function
● Supports analog signal (4-20mA) & electrical (DC24V) Output
● Support for AS-I BUS
● Supports manual and automatic operation

Material
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining


Certificate
3A/54-02 (1580),PED/97/23/EC,FDA.177.2600, ISO



Drawing

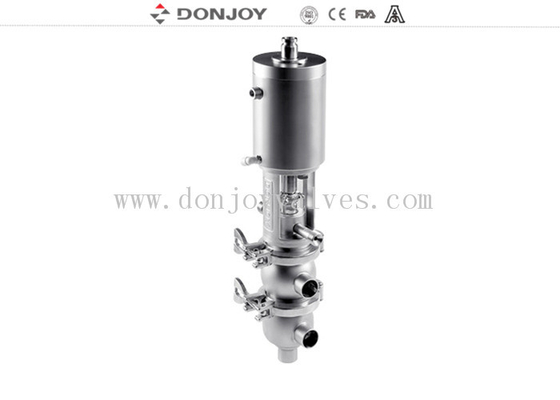

T Type Pneumatic Actuator Divert Reversing Seat Valve 0

Conbine of the valve body

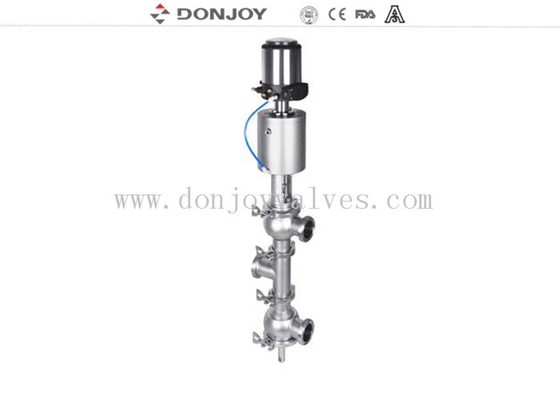

T Type Pneumatic Actuator Divert Reversing Seat Valve 1

T Type Pneumatic Actuator Divert Reversing Seat Valve 2

T Type Pneumatic Actuator Divert Reversing Seat Valve 3

T Type Pneumatic Actuator Divert Reversing Seat Valve 4

If you need more information please contact us directly

Tag: Donjoy seat valve, Reversing valve, Shut off valve
