Pneumatic reversing Seat Valve/ Donjoy over charge valves

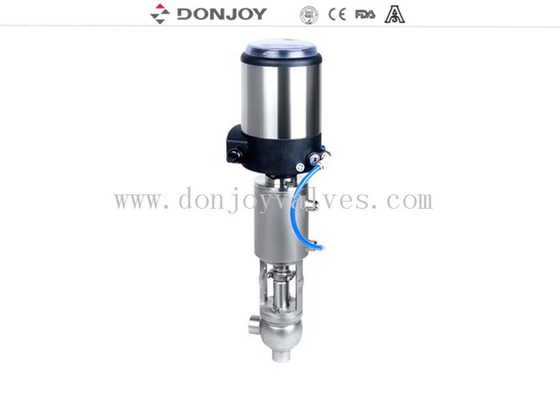

Large Image : Pneumatic reversing Seat Valve/ Donjoy over charge valves

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	20 Type ( L type )

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	carton box
Delivery Time:	according to order
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	1000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Material:	SS304 / 316L	Media:	Water Etc.
Size:	Mini Type 1/2", 3/4"	Pressure:	Medium Pressure
Valve Seat:	Single Seat	Structure:	With Pneumatic Actuator
Surface Finish:	Sandblast Or Mirror Polishing	Operation:	DC24V
Highlight:	SS304 Single Seat Valve , DC24V Single Seat Valve , Control Head Single Seat Valve

Pneumatic reversing Seat Valve/ Donjoy over charge valves

★★SPECIFICATION:

Item	Stainless Steel Pneumatic Divert Seat Reversing Valve
Size	Mini Type 1/4"-3/4"
Working temperature	-10ºC to 120ºC EPDM, (140ºC for SIP,max 30min)
Working pressure	10 bar, 145 psi
Compressed air pressure	5.0-7.0 bar
Air connection	G1/8" (BSP)
Internal surface finish	Ra<0.8um
External surface finish	Sandbalst or mirror polish
Material	AISI316L/AISI304
Gasket (standard)	EPDM in compliance with FDA 177.2600
Gasket (option)	FPM in compliance with FDA 177.2600
Connections	DIN, SMS, RJT, IDF
Normal pneumatic operation	Single acting pneumatic actuator
Optional pneumatic operation	Double acting pneumatic actuator
Option 2	External position sensor
Option 3	Steam barrier (if shaft sterilisation is required)
Option 4	Body jacket insulation
Option 5	Valve position regulator
Option 6	Double stop actuator
Option 7	Diaphragm type valve cavity
Option 8	C-TOP control unit.

Application

● pneumatic divert seat valve with control unit is a hygienic single seat pneumatically operated valve which has been widely used in the food processing industry, beverage production of pharmaceutical and fine chemical industries.
● The seat valve automatically operated by a single or double acting pneumatic actuators with compressed air to push the shaft to locate the valve open or closed position.
● single-acting cylinder actuators rotate 180 degrees to achieve a valve normally open and normally closed.

Technical specifications

● Size: Mini Type 1/4"-3/4"
● Temperature: 130 ℃
● Pressure: 10bar
● air supply: 4-7bar
● Material: ASTM 304 / 1.4301,316L / 1.4404
● Seal: EPDM, FPM, HNBR, FDA177.2600
● Processing: Ra <0.8μm
● Certificate: 3-A-53-06, PED / 97/23 / EC, FDA177.2600
Control unit:
● Power: DC 24V ± 10%
● Single acting (standard), double acting (option)
● Self-tuning Valve position feedback function
● Supports analog signal (4-20mA) & electrical (DC24V) Output
● Support for AS-I BUS
● Supports manual and automatic operation

Certificate
3A/54-02 (1580),PED/97/23/EC,FDA.177.2600, ISO

Drawing

Pneumatic reversing Seat Valve/ Donjoy over charge valves 0

Tag : Change over valve, Shut off valve, Reversing Valve, Single Seat Valve

Drawing

Conbine of the valve bod you need more information please contact us directg: Donjoy seat valve,versing valve, Shut off valve
