Pneumatic Divert L Type 316L 1/2" Reversing Seat Valve

Pneumatic Divert L Type 316L 1/2" Reversing Seat Valve

1/2" Reversing Seat Valve

Pneumatic Divert Reversing Seat Valve

SS316L Reversing Seat Valve

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

20 Type ( L type )

Contact Us

Request A Quote
Product Details
Material:
SS304 / 316L
Media:
Water Etc.
Operate Mode:
Pneumatic
Size:
1/2"-3/4"
Pressure:
Medium Pressure
Valve Seat:
Single Seat
Structure:
With Pneumatic Actuator
Connection:
Tri Clamp, Weld, Flange
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton box
Delivery Time
according to order
Payment Terms
T/T, LC, Credit Card
Supply Ability
1000 Piece/Pieces per Month
Product Description

316L 1/2" L Type control Change over valve, Reversing seat valve



★★SPECIFICATION:



Item Stainless Steel Pneumatic Divert Seat Reversing Valve
Size 1/2"-3/4"
Working temperature -10ºC to 120ºC EPDM, (140ºC for SIP,max 30min)
Working pressure 10 bar, 145 psi
Compressed air pressure 5.0-7.0 bar
Air connection G1/8" (BSP)
Internal surface finish Ra<0.8um
External surface finish Sandbalst or mirror polish
Material AISI316L/AISI304
Gasket (standard) EPDM in compliance with FDA 177.2600
Gasket (option) FPM in compliance with FDA 177.2600
Connections DIN, SMS, RJT, IDF
Normal pneumatic operation Single acting pneumatic actuator
Optional pneumatic operation Double acting pneumatic actuator
Option 2 External position sensor
Option 3 Steam barrier (if shaft sterilisation is required)
Option 4 Body jacket insulation
Option 5 Valve position regulator
Option 6 Double stop actuator
Option 7 Diaphragm type valve cavity
Option 8 C-TOP control unit.





Application

● pneumatic divert seat valve with control unit is a hygienic single seat pneumatically operated valve which has been widely used in the food processing industry, beverage production of pharmaceutical and fine chemical industries.
● The seat valve automatically operated by a single or double acting pneumatic actuators with compressed air to push the shaft to locate the valve open or closed position.
● single-acting cylinder actuators rotate 180 degrees to achieve a valve normally open and normally closed.

Technical specifications

● Size: 1/2"-3/4"
● Temperature: 130 ℃
● Pressure: 10bar
● air supply: 4-7bar
● Material: ASTM 304 / 1.4301,316L / 1.4404
● Seal: EPDM, FPM, HNBR, FDA177.2600
● Processing: Ra <0.8μm
● Certificate: 3-A-53-06, PED / 97/23 / EC, FDA177.2600
Control unit:
● Power: DC 24V ± 10%
● Single acting (standard), double acting (option)
● Self-tuning Valve position feedback function
● Supports analog signal (4-20mA) & electrical (DC24V) Output
● Support for AS-I BUS
● Supports manual and automatic operation

External surface finish: CNC fine machining


Certificate
3A/54-02 (1580),PED/97/23/EC,FDA.177.2600, ISO



Drawing

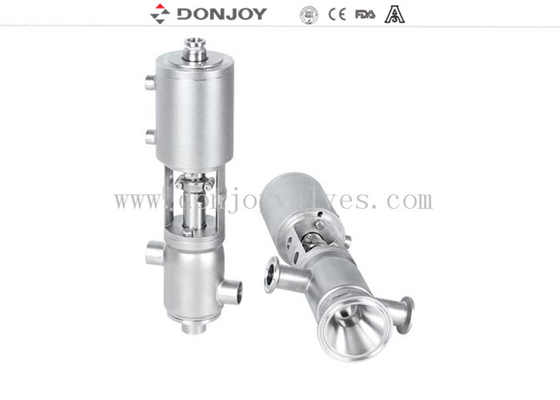

Pneumatic Divert L Type 316L 1/2" Reversing Seat Valve 0

Conbine of the valve body

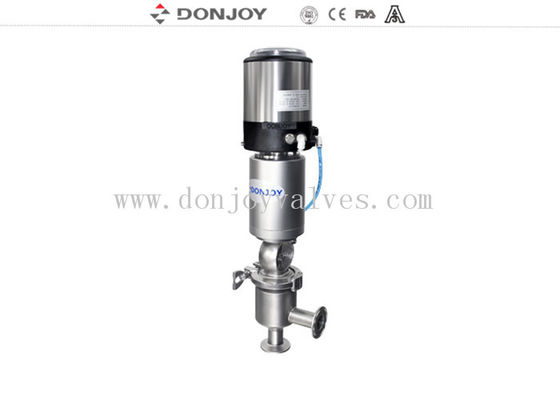

Pneumatic Divert L Type 316L 1/2" Reversing Seat Valve 1

Pneumatic Divert L Type 316L 1/2" Reversing Seat Valve 2

Pneumatic Divert L Type 316L 1/2" Reversing Seat Valve 3

Pneumatic Divert L Type 316L 1/2" Reversing Seat Valve 4

If you need more information please contact us directly
