Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
30 Type ( L type
Contact Us

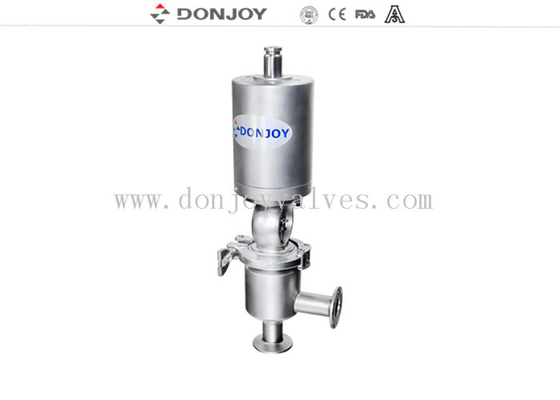

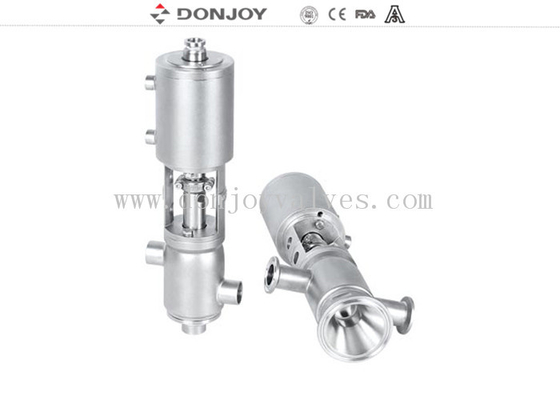

316L 1/2" L Type control Change over valve, Reversing seat valve
★★SPECIFICATION:
| Item | Stainless Steel Pneumatic Divert Seat Reversing Valve |
| Size | 1/2"-3/4" |
| Working temperature | -10ºC to 120ºC EPDM, (140ºC for SIP,max 30min) |
| Working pressure | 10 bar, 145 psi |
| Compressed air pressure | 5.0-7.0 bar |
| Air connection | G1/8" (BSP) |
| Internal surface finish | Ra<0.8um |
| External surface finish | Sandbalst or mirror polish |
| Material | AISI316L/AISI304 |
| Gasket (standard) | EPDM in compliance with FDA 177.2600 |
| Gasket (option) | FPM in compliance with FDA 177.2600 |
| Connections | DIN, SMS, RJT, IDF |
| Normal pneumatic operation | Single acting pneumatic actuator |
| Optional pneumatic operation | Double acting pneumatic actuator |
| Option 2 | External position sensor |
| Option 3 | Steam barrier (if shaft sterilisation is required) |
| Option 4 | Body jacket insulation |
| Option 5 | Valve position regulator |
| Option 6 | Double stop actuator |
| Option 7 | Diaphragm type valve cavity |
| Option 8 | C-TOP control unit. |
● pneumatic divert seat valve with control unit is a hygienic single seat pneumatically operated valve which has been widely used in the food processing industry, beverage production of pharmaceutical and fine chemical industries.
● The seat valve automatically operated by a single or double acting pneumatic actuators with compressed air to push the shaft to locate the valve open or closed position.
● single-acting cylinder actuators rotate 180 degrees to achieve a valve normally open and normally closed.
Mini divert seat valve is particularly suitable for the filling machine equipment and can replace the traditional type of rotary valve.Guarantee of lifetime for 1.5 million operattion
◆Size:1/2"-3/4",DN15-DN20
◆Material:304/316L
◆Seal-in-one design
◆Meet the high frequency opens and closes
◆No dead angle designed to meet the requirements of 3A-85-00
◆Seal: FDA177.2600
◆Connection : Clamp, weld, thread, DIN,SMS,ISO
● Certificate: 3-A-53-06, PED / 97/23 / EC, FDA177.2600
Control unit:
● Power: DC 24V ± 10%
● Single acting (standard), double acting (option)
● Self-tuning Valve position feedback function
● Supports analog signal (4-20mA) & electrical (DC24V) Output
● Support for AS-I BUS
● Supports manual and automatic operation
External surface finish: CNC fine machining
Drawing
Conbine of the valve body
If you need more information please contact us directly
Tag: Donjoy seat valve, Reversing valve, Shut off valve
