Detailed Product Description
Operation: Pneumatic Size: DN40 - DN100 Or 1.5" - 4"
Type: E-C Body Conbination: P30
Gasket: EPDM/ VITION/NBR Material: 316L
Connection: Welding Pressure Test: PED
High Light:

Double Seat Mixproof Valve

,

SS316L Mixproof Valve

,

DN100 Mixproof Valve

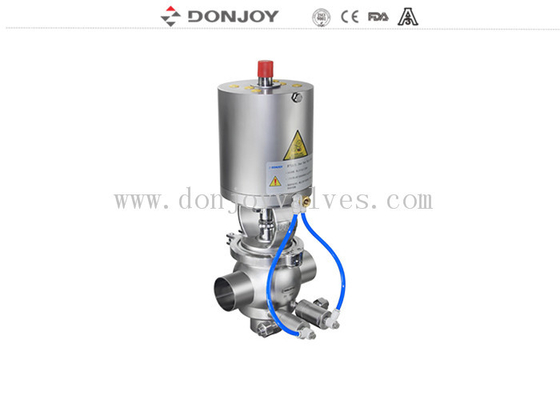

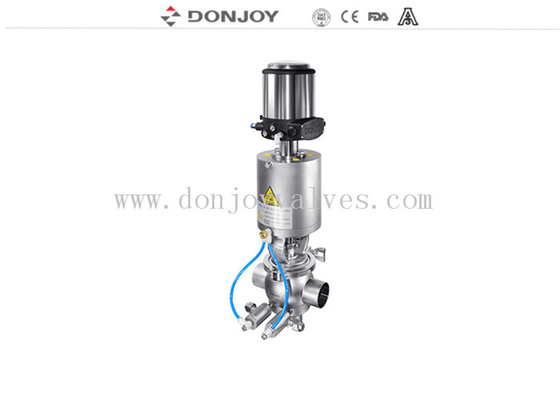

SS316L Double Seat Mixproof Valve with Ctop with CIP and SIP, E-C Series


Specification

Product wetted parts AISI 316L
Other stainless steel parts AISI 304
Seat Material (Default) EPDM, FDA177.2600
Seat Material (Option) FPM (Viton), FDA177.2600
End Connections butt-welded, tri-clamp, Flange
Max. Working Pressure 145psi (10bar)
Min. working pressure absolute vacuum
Working Temperature 14°F to 266°F (-10 to 130°C), 284°F (140°C) for short time sterilisation.
Internal Finish Ra 32μin (0.8μm) as default, Ra 16μin (0.4μm) as best.
External Finish sandblast, or others upon request.
Pneumatic Actuator Types Normally Closed (NC) – Air to open and spring to close;
Normally Open (NO) – Air to close and spring to open;
Air to Air (AA) – Air to open, air to close.
Actuator air pressure 79-102 psi (5.5 bar-7 bar)
Units for intelligent control and indication C-top control
IL-top control (Positioner)
Electric connection
AS-I bus connection



Design Features

● External CIP supply
● Default with normally closed pneumatic actuator
● Compact and robust design, forged spherical bodies
● Pressure balanced design
● One-piece Body & Clamped Body for choose from
● A wide selection of different body combinations.
● Easy disassembly by releasing the clamp
● Cleaning/Sterilization Parts for Options
● 100% hydraulic tested / 100% inspected


Applications

Pneumatic double seat valve is designed to meet when there are two different product flows through the same valve, both guarantee to prevent fluid mixing and be convenient for monitoring the working condition.The valve is used in dairy products, beverages, beer, and other high purity requirements of the process piping systems.
◆This valve is normally closed(NC) by remotely being controlled through compressed air .This valve is companied with two small pneumatic valves(Normally open) to monitor of the valve seal leakage
◆Plue(upper stem inside of a changever valve) has two seals, which forms a leakage chamber between each other. The leakage medium flows into the chamber and discharges through detector valve. Supplying air to actuator can make the valve clean in place. During cleaning, fluid flows directly to the plug. This valve is unsensitive to water hammer effect


Operating principles
●This valve is normally closed (NC), remotely controled through compressed air . This valve is companied with two small pneumatic valves, one for monitoring, another one for CIP.
● Plug (upper stem inside of a divert valve) has two seals which form a leakage chamber between each other. The leaked medium flow into the chamber, discharges through detector valve. Supply air to actuator can make the valve clean in place (see figure 2).
● Under cleaning, fluid flow directly to the plug. This valve is unsensitive to water hammer effect.

E-C Welding DN100 SS316L Double Seat Mixproof Valve 0

Drawing

E-C Welding DN100 SS316L Double Seat Mixproof Valve 1

E-C Welding DN100 SS316L Double Seat Mixproof Valve 2
Valve Body conbine
E-C Welding DN100 SS316L Double Seat Mixproof Valve 3

Function Selection

E-C Welding DN100 SS316L Double Seat Mixproof Valve 4

Also use for Manifold ,Examples of A Standard Manifold

E-C Welding DN100 SS316L Double Seat Mixproof Valve 5

E-C Welding DN100 SS316L Double Seat Mixproof Valve 6
Tags :  Double seal valve, Mixing proof valve , Donjoy Valve
