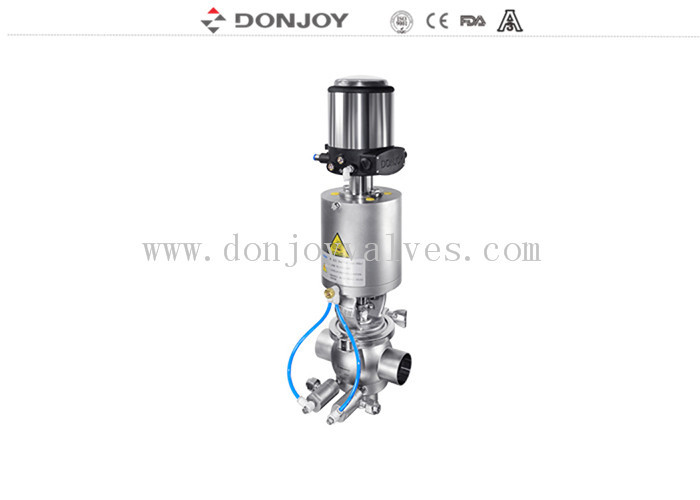

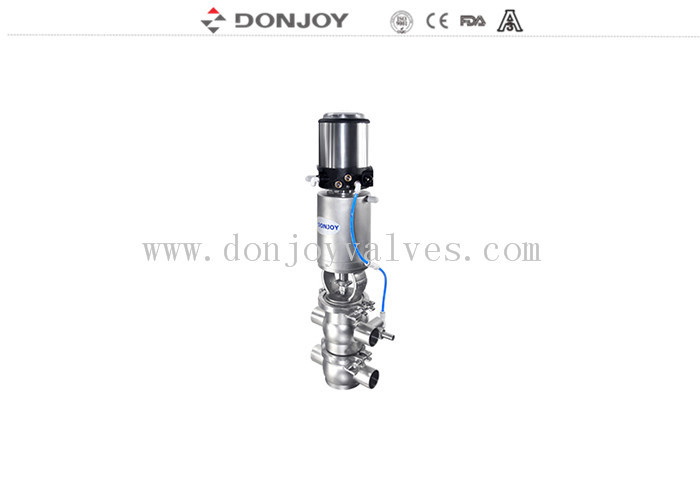

Welding DN100 Proportional Control Head Mixproof Valve

Welding DN100 Proportional Control Head Mixproof Valve

Welding DN100 Proportional Control Head Mixproof Valve

Product Details:

Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO.VFP101Q1-21022

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: carton box
Delivery Time: according to order
Payment Terms: T/T, LC, Credit Card
Supply Ability: 1000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Operation: Pneumatic Size: DN40 - DN100 Or 1.5" - 4"
Type: E-C Series Body Conbination: P22
Gasket: EPDM/ VITION/NBR Material: 316L
Connection: Welding Pressure Test: PED
High Light:

Proportional Control Head Mixproof Valve

,

Welding Mixproof Valve

,

Pressure Balanced Mixproof Valve

External CIP Mixproof Valve with Proportional control head, E-C Series


Specification

Product wetted parts AISI 316L
Other stainless steel parts AISI 304
Seat Material (Default) EPDM, FDA177.2600
Seat Material (Option) FPM (Viton), FDA177.2600
End Connections butt-welded, tri-clamp, Flange
Max. Working Pressure 145psi (10bar)
Min. working pressure absolute vacuum
Working Temperature 14°F to 266°F (-10 to 130°C), 284°F (140°C) for short time sterilisation.
Internal Finish Ra 32μin (0.8μm) as default, Ra 16μin (0.4μm) as best.
External Finish sandblast, or others upon request.
Pneumatic Actuator Types Normally Closed (NC) – Air to open and spring to close;
Normally Open (NO) – Air to close and spring to open;
Air to Air (AA) – Air to open, air to close.
Actuator air pressure 79-102 psi (5.5 bar-7 bar)
Units for intelligent control and indication C-top control
IL-top control (Positioner)
Electric connection
AS-I bus connection



Design Features

● External CIP supply
● Default with normally closed pneumatic actuator
● Compact and robust design, forged spherical bodies
● Pressure balanced design
● One-piece Body & Clamped Body for choose from
● A wide selection of different body combinations.
● Easy disassembly by releasing the clamp
● Cleaning/Sterilization Parts for Options
● 100% hydraulic tested / 100% inspected


Applications

Pneumatic double seat valve is designed to meet when there are two different product flows through the same valve, both guarantee to prevent fluid mixing and be convenient for monitoring the working condition.The valve is used in dairy products, beverages, beer, and other high purity requirements of the process piping systems.
◆This valve is normally closed(NC) by remotely being controlled through compressed air .This valve is companied with two small pneumatic valves(Normally open) to monitor of the valve seal leakage
◆Plue(upper stem inside of a changever valve) has two seals, which forms a leakage chamber between each other. The leakage medium flows into the chamber and discharges through detector valve. Supplying air to actuator can make the valve clean in place. During cleaning, fluid flows directly to the plug. This valve is unsensitive to water hammer effect


Operating principles
●This valve is normally closed (NC), remotely controled through compressed air . This valve is companied with two small pneumatic valves, one for monitoring, another one for CIP.
● Plug (upper stem inside of a divert valve) has two seals which form a leakage chamber between each other. The leaked medium flow into the chamber, discharges through detector valve. Supply air to actuator can make the valve clean in place (see figure 2).
● Under cleaning, fluid flow directly to the plug. This valve is unsensitive to water hammer effect.

Welding DN100 Proportional Control Head Mixproof Valve 0

Drawing

Welding DN100 Proportional Control Head Mixproof Valve 1

Welding DN100 Proportional Control Head Mixproof Valve 2
Valve Body conbine
Welding DN100 Proportional Control Head Mixproof Valve 3

Function Selection

Welding DN100 Proportional Control Head Mixproof Valve 4

Also use for Manifold ,Examples of A Standard Manifold

Welding DN100 Proportional Control Head Mixproof Valve 5

Welding DN100 Proportional Control Head Mixproof Valve 6
