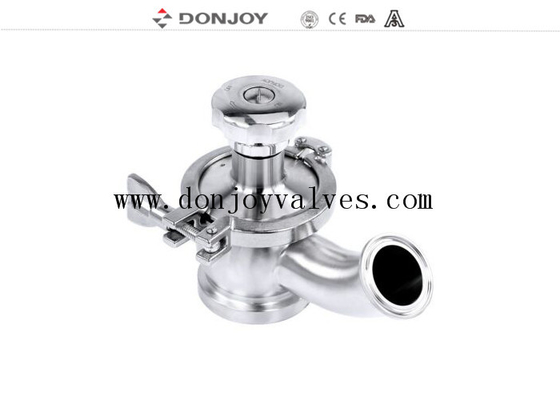

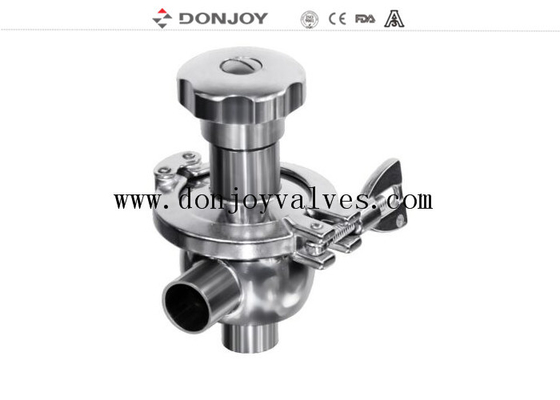

316l Radial Diaphragm Valve Asepco Tank Bottom Valve For Cosmetics

316l Radial Diaphragm Valve Asepco Tank Bottom Valve For Cosmetics

316L Radial Diaphragm Valve

Asepco Tank Bottom Valve

Cosmetics Sanitary Diaphragm Valve

Place of Origin:

China

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.Vgj210s1

Contact Us

Request A Quote
Product Details
Product Name:
Tank Bottom Diaphragm Valve
Materials:
SS316L / 1.4404
Size:
3/4"-2.5"
Connection:
Threaded ( BSP / BSPT / NPT ),clamp,weld
Gasket:
Sillcone / EPDM
Manual:
SS Hand Wheel , Plastic Hand Wheel
Pneumatic:
SS Actuator , Plastic Actuator
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

Re316L Aseptic Radial tank bottom diaphragm valve for cosmetic and food

Applications
Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.
The valve is excellent for flow control as well as open/close control.
The diaphragm valves are better in feature of flow in comparison with other valves.
It is eaiser to clean up and better to process the substance with particles.
The phenomenon of air pocket is rare during application of flow control.

Specifications

Product Name:

Tank bottom diaphragm valve

Valve Body Material:

SS316L

Seal Material:

EPDM

Max Working Pressure:

6Bar

Max.Working Temperature:

-10 to 120 degree

Available  size:

3/4"-2.5",DN20-DN65

Available connection:

Clamp / welding / thread / special connection

Available standard:

3A / BPE / DIN / ISO / IDF

Operation

Manual, pneumatic

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc


●Mainly used in pharmaceutical, biotechnology, health care, cosmetics and food industry etc.
●In the pharmaceutical industry, the valve can be used as process control valves, dosing valves, sampling valves and sterile drain valve, etc.
●In the food industry, the valve is often used as the guiding device, such as sampling valve, dosing valve (such as adding CO2/Nitrogen to beer, add seasoning to drink). Radial diaphragm valves, mainly manual and pneumatic valve body, internal polished finish Ra is less than or equal to 0.5um, to meet the requirements of bio pharmaceutical industry.
●Size:3/4"-2.5",DN20-DN65
●Working temperature:-10℃-120℃(EPDM/Silcon)
●Max.Pressure:6bar
●operation:Manual / pneumatic interchangeable
●Operating Pressure:5bar-6bar
●Outlet connection: Clamp, weld,Special interface
●New diaphragm design
●Maintenance is simple, safe, easy to operate
●Self emptying function
●Dead angle minimization
●Excellent value KV
●CIP/SIP Sterilizing and cleaning


Product drawing
 316l Radial Diaphragm Valve Asepco Tank Bottom Valve For Cosmetics 0
