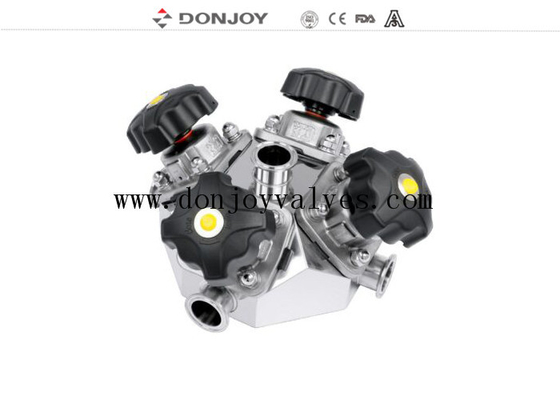

DONJOY 54A Type Multiport FDA epdm diaphragm valve with plastic handle
54A type means : 4 Valve body and 5 port
Applications:
Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.
The valve is excellent for flow control as well as open/close control.
The diaphragm valves are better in feature of flow in comparison with other valves. It is eaiser to clean up and better to process the substance with particles. The phenomenon of air pocket is rare during application of flow control.
Valve Body:
Forging body blank is through a piece of stainless steel ingot, in the forging process, along with the high temperature forging provide, through extrusion blank shape change, through the forging after body dendity higher, the structure is more uniform, no sand hole and other impurities. Then through the processing center carry on the high precision machining.
Casting body is made by the mould paraffin wax model, paraffin wax model infiltratiion in ceramic, to let the whole body wax mold surface form a layer of strong ceramic. Melt wax modl, then into the melting of the stainless steel solution, after cooling knock off the appearance of ceramic, blank body is made up. Casting size is very accurate, the outward apperance is smmoth, clean and tidy.
Round steel body chooses ultrapure materials, cut into squares material directly by CNC cutting equipment, To a five axis CNC machining center for precision machining.
Specifications
Product Name: |
316L Stainless Steel Multipass Pneumatic Diaphragm Valve with ss Actuator Controller |
Valve Body Material: |
round steel valve body 1.4404/316L |
Max.WorkingTemperature: |
-30 to 150 degree C(depending on diaphragm) |
Available size: |
1/4”-3/4”, DN6-DN15 |
Available connection: |
Clamp/weld/thread/special connection |
Available standard: |
3A/BPE/DIN/ISO/IDF |
Operation mode: |
Pneumatic operation |
Special composition: |
multipass structure |
Structure: |
Round steel valve body with multi-port. |
Availably structure: |
Straight, tee, U-type, tank bottom |
Control: |
Smart valve positioner / C-TOP control / position sensor |
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
Packaging Details: |
Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers. |
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Description
Various configuration of Diaphragm valve
1. Diaphragm valve with Pisitioner/Process Controller (IL-TOP)
2. Diaphragm valve with Control Unit (C-Top)
3. Valve position Regulator
4. Stainless steel acuator
5. Plastic actuator
6. Body: Casting / Forging/round steel valve body
Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.

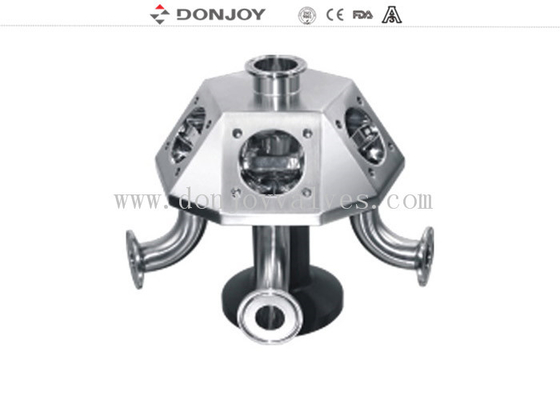

Valve body
Please check the detailed information below for the valve body of diaphragm valve.
Operation
Tags: Donjoy Diaphragm valves, Multil port diaphragm valve, Phamacy valve
