Detailed Product Description
Product Name: Multiport Diaphragm Valve Materials: SS316L/1.4404
Size: 1"-3" DN25-DN80 Operation: Stainless Steel Actuator
Connection: Welding Gasket: EPDM+PTFE
Direction Of Actuator: Opposite Direction
High Light:

Multiport Pneumatic Diaphragm Valve


Welding Pneumatic Diaphragm Valve


DN80 Pneumatic Diaphragm Valve

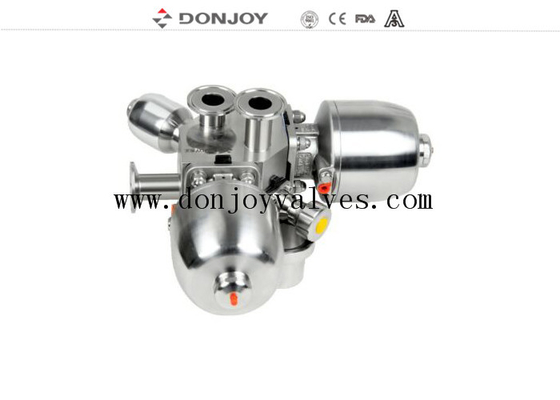

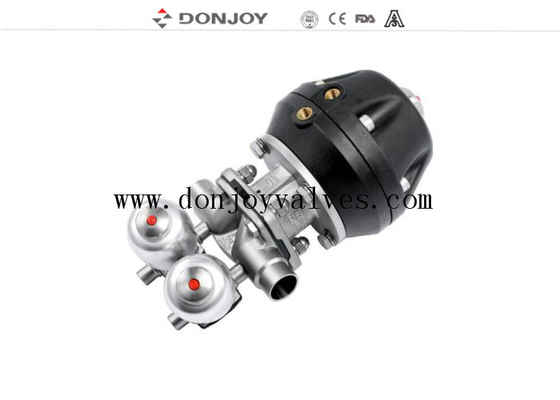

DONJOY Welding Combined Multiport Diaphragm Valve with FDA EPDM/PTFE

Product Name:

SS Sanitary Multiport Pneumatic Diaphragm Valve for
pharmaceutical industry

Valve Body Material:


Seal Material:

Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces

MaxWorking Pressure:

10 Bar

Max.Working Temperature:

130 degree C

Availably  size:

1"-3" DN25-DN80

Availably connection:

Clamp/weld/thread/special connection

Availably standard:




Availably structure:

Straight, tee, U-type, tank bottom


Smart valve positioner / C-TOP control / position sensor


3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Instruction manual:

Chinese - English bilingual

Direction of port:

As per actual situation

 Various configuration of Diaphragm valve
 1.      Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
 2.      Diaphragm valve with Control Unit(C-Top)
 3.      Valve position Regulator
 4.      Position Sensor Module
 5.      Plastic Handle
 6.      Stainless steel handle
 7.      Stianless steel acutor
 8.      Electric Diaphragm valve
 9.      Plastic Acutor
 10.    Body: Casting / Forging


Operating Principles

1. The diaphragm provide the body seal as well as the seat seal. There are no paths to the outside environment, so it suitable for aseptic processes

2. When the valve is closed a pressure pad which supports the diaphragm moves towards the sealing face on the body.When the pressure plate moves the diaphragm flexes and is forced down onto the seat area in the centre of the body thus closing of the flow path through the body.

3. The inter relationship of body to the pressure plate prevents over compression of the diaphragm

4. The valve can be manual operation and pneumatic operation control tops of solenoid valves


Cetificate of Diaphragm valve

1.All synthetic resin and additive are comply with FDA Certification.

2.Material chemical composition, physical properties and manufacturing process are documented.

3.3-a consistency the authentication


5.EN 10204-3.1


Diaphragm of the valve

1. EPDM+PTFE( Adhesive)Diaphragm tablet have high chemical resistance, high stability, good flexibity, long life, high sealing, no code degeneration, and not effected by temperature fluctuations excellent performance, whether it is thermal cycle, cold cycle, or steam disinfection system.

Sepcification: 1-3", DN20-DN80

Temperature :-20 to 120degree


2. EPDM+PTFE (Seperate) It can reduces the diaphragm tolerance and proling the service life of the diaphragm

Sepcification: 1-4", DN20-DN100

Temperature :-20 to 150degree


3 Single seal (EPDM/SILICONE/FPM), Rubber diaphragm embedded a layer of vulcanized fiber layer enhance its mechanical properties, then diaphragm in pressure and temperature hase high seal stability, reinforcing fiber hardening in stainless steel bolt, so as to ensure better rubber and metal bond together. So it is suitable for use in vacuum environment.

Sepcification: 1-4", DN20-DN100

Temperature :-10 to 120degree


4. Mini type diaphragm gasket ( EPDM, SILICONE,FPM, EPDM+PTFE)

Sepcification: 1/4"-3/4", DN6-DN15

Temperature :-20 to 150degree


Surface Treatment :

1.For mechanical polished : Inner Ra<0.5μm, Outside : From 1-4" Sandblasting, Below 1" with mirror polished

Valve conbination

GMP VALVE : Mainly used in high pure water or other distribution system of water point vertical tube road, which can effectively reduce pipe line deadleg. one of the valve placed in a vertical positon the export is a no bacterial breeding or process cross infection sample mouth when the vealve open


SAP VALVE: Mainly used in a horizontal pipeline system, host valve placed in a horizontal position, and maintain a certain self-emptying angle, then passage hole in the lowest discharge point of the host valve waterway.
