    Detailed Product Description

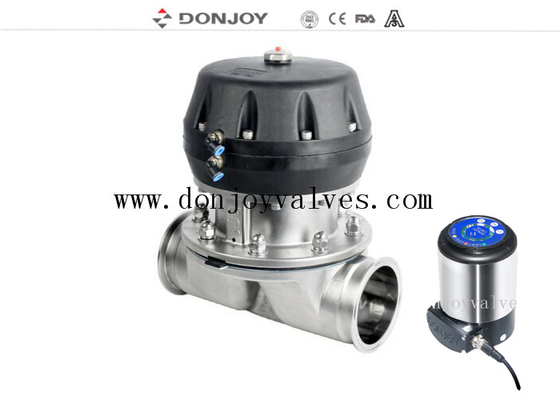

    Product Name: Pneumatic Direct Way Diaphragm Valve Materials: SS316L / 1.4404
    Size: 1'' - 4'', DN25 - DN100 Operation: Plastic Actuator
    Connection: Clamp / Weld / Thread Gasket: EPDM + PTFE
    Valve Position: Optional Combination Pneumatic: Single Acting/Double Acting
    High Light:

    Proportional Sanitary Diaphragm Valve


    Directly Connection Sanitary Diaphragm Valve


    DN25 Sanitary Diaphragm Valve

    Sanitary Diaphragm proportional valve with directly connection
    Sanitary Diaphragm Valve with Plastic pneumatic actuator
    Multi-function pneumatic diaphragm valve
    Double location cylinder pneumatic diaphragm valve


    Product Name:

    Stainless Steel SS316L Casting body Pneumatic Membrane Diaphragm Valve

     Valve Body Material:


    Seal Material:

    Single sillcone gasket
    / Adhesive PTFE+EPDM
    /Two pieces PTFE+EPDM

    MaxWorking Pressure:

    8 Bar

     Max.Working Temperature:

    150 degree C

    Availably  size:

    1''-4'', DN20-DN100

    Availably connection:

    Clamp/weld/thread/special connection

    Availably standard:




    Availably structure:

    Straight, tee, U-type, tank bottom


    Smart valve positioner / C-TOP control / position sensor


    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc

    Valve body:

    Forging or casting


    Flexible with various valve seat

     Various configuration of Diaphragm valve

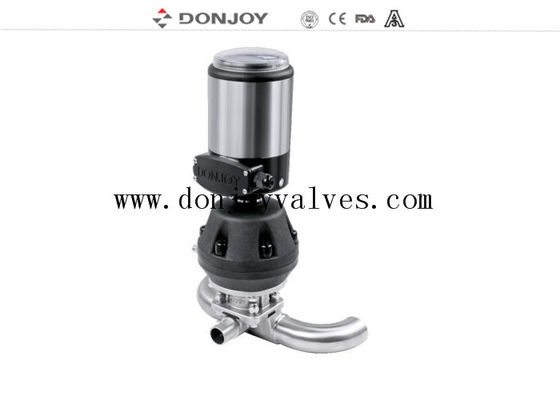

    1.      Didaphragm valve with Pisitioner/Process Controller (IL-TOP)

    2.      Diaphragm valve with Control Unit (C-Top)

    3.      Valve position Regulator

    4.      Position Sensor Module

    5.      Plastic Handle

    6.      Stainless steel handle

    7.      Stianless steel acutor

    8.      Electric Diaphragm valve

    9.      Plastic Acutor

    Proportional Sanitary Diaphragm Valve With Directly Connection 0

    10.    Body: Casting / Forging


    Valve body:
    Forging body blank is through a piece of stainless steel ingot, in the forging process, along with the high temperature forging provide, through extrusion blank shape change, through the forging after body density higher, the structure is more uniform, no sand hole and other impurities. Then through the processing centre carry on the high precision maching.

    Casting body is made by the mould paraffin wax model, paraffin wax model infitration in ceramic, to let the whole body wax mold surface form a layer of strong ceramic. Melt wax mold, then into the melting of the stainless steel solution, after cooling knock off the appearance of ceramic, blank body is made uo.Casting size is very accurate, the outward appearance is a smooth, clean and tidy.


    Diaphragm valve Gasket
    1. EPDM/ Silicone
    2.EPDM+PTFE Ahersive
    3.EPDM/EPDM Seperate

    Proportional Sanitary Diaphragm Valve With Directly Connection 1

    Cetificate of Diaphragm valve

    1.All synthetic resin and additive are comply with FDA Certification.

    2.Material chemical composition, physical properties and manufacturing process are documented.

    3.3-a consistency the authentication


    5.EN 10204-3.1


    Operating Principles

    1. The diaphragm provide the body seal as well as the seat seal. There are no paths to the outside environment, so it suitable for aseptic processes

    2. When the valve is closed a pressure pad which supports the diaphragm moves towards the sealing face on the body.When the pressure plate moves the diaphragm flexes and is forced down onto the seat area in the centre of the body thus closing of the flow path through the body.

    3. The inter relationship of body to the pressure plate prevents over compression of the diaphragm

    4. The valve can be manual operation and pneumatic operation control tops of solenoid valves




    Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.


    The valve is excellent for flow control as well as open/close control.

    The diaphragm valves are better in feature of flow in comparison with other valves. It is eaiser to clean up and better to process the substance with particles. The phenomenon of air pocket is rare during application of flow control.


    Multi-port diaphragm valve combination

    SPA configuration and GMP configuration
    Proportional Sanitary Diaphragm Valve With Directly Connection 2
    Proportional Sanitary Diaphragm Valve With Directly Connection 3

    Product drawings
     Proportional Sanitary Diaphragm Valve With Directly Connection 4

    Surface Ra
    Proportional Sanitary Diaphragm Valve With Directly Connection 5
