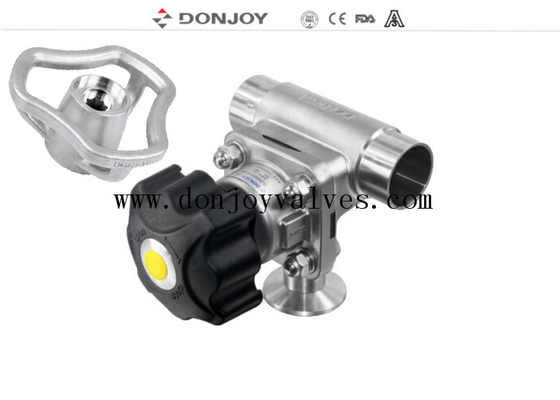

Manual DN40 3 Way Bio Pharmaceutical Diaphragm Valve With Plastic Handle

Manual DN40 3 Way Bio Pharmaceutical Diaphragm Valve With Plastic Handle

  • Manual DN40 3 Way Bio Pharmaceutical Diaphragm Valve With Plastic Handle
  • Manual DN40 3 Way Bio Pharmaceutical Diaphragm Valve With Plastic Handle
Manual DN40 3 Way Bio Pharmaceutical Diaphragm Valve With Plastic Handle
Product Details:
Place of Origin: China
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO.T-H
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Contact Now
Detailed Product Description
Product Name: Pneumatic Radial Diaphramg Valve With Cylindrical Port Conveying Port: 1 Or 2
Logo: Donjoy Or Customized Feature: Regulating Fluid
Position Of Actuator: Be Downward Max Pressure: 6bar
High Light:

Bio Pharmaceutical Diaphragm Valve

,

3 Way Pharmaceutical Diaphragm Valve

,

DN40 Pharmaceutical Diaphragm Valve

DN40 Manual 3 way Bio pharmaceutical diaphragm valve with plastic handle


Specifications

Product Name:

Pneumatic Radial Diaphragm Valve for phamacy hygienic process

Valve Body Material:

SS316L

Seal Material:

Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM

MaxWorking Pressure:

6 Bar

Max.Working Temperature:

120 degree C

Availably  size:

3/4''-2.5'', DN20-DN65

Availably connection:

Clamp/weld/thread/special connection

Availably standard:

3A/BPE/DIN/ISO/IDF

Operated:

Manual,Pneumatic

Availably structure:

Straight, tee, U-type, tank bottom

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Logo of product:

With "DONJOY" or customized

Combination of valve and actuator:

Flexible combination on valve body


Description
Various configuration of Diaphragm valve
1.      Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
2.      Diaphragm valve with Control Unit(C-Top)
3.      Valve position Regulator
4.      Position Sensor Module
5.      Plastic Handle
6.      Stainless steel handle
7.      Stianless steel acutor
8.      Electric Diaphragm valve
9.      Plastic Acutor
Manual DN40 3 Way Bio Pharmaceutical Diaphragm Valve With Plastic Handle 0
Certificate
3A / 54-02 (1580), PED / 97 / 23 / EC, FDA. 177. 2600

Diaphragm valve Gasket
1. EPDM/ Silicone
2.EPDM+PTFE Ahersive
3.EPDM/EPDM Seperate
Manual DN40 3 Way Bio Pharmaceutical Diaphragm Valve With Plastic Handle 1

Product drawing
Valve Body
Manual DN40 3 Way Bio Pharmaceutical Diaphragm Valve With Plastic Handle 2
Manual DN40 3 Way Bio Pharmaceutical Diaphragm Valve With Plastic Handle 3
Surface Ra
Manual DN40 3 Way Bio Pharmaceutical Diaphragm Valve With Plastic Handle 4
Body :
Casting/ Forging
Manual DN40 3 Way Bio Pharmaceutical Diaphragm Valve With Plastic Handle 5

Packaging
Bubble pack for each valve. Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery
Usually within 20 days after receiving T/T down payment.
