SS316L Pharmacy Sanitary Diaphragm Valve With SS Handle

SS316L Pharmacy Sanitary Diaphragm Valve With SS Handle

Pharmacy Sanitary Diaphragm Valve

SS316L Sanitary Diaphragm Valve

SS Handle Sanitary Diaphragm Valve

Place of Origin:

China

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

CGMOS1

Contact Us

Request A Quote
Product Details
Brand:
DONJOY
Suitable Temperature:
-10 To 120 Degree (EPDM)
Operation:
Stainless Steel Handwheel
Gasket Optional:
EPDM/ SILICONE/ FPM/ EPDM+PTFE
Surface Polishing:
Ra<0.8um
Original:
China
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box
Delivery Time
10-30 working days
Payment Terms
T/T, LC, Credit Card
Supply Ability
30 sets 20 working dyas
Product Description

SS316L Phamacy Diaphragm Valve with SS Handle FDA Membrane



Specifications

Product Name:

One year warranty stainless steel sanitary manual diaphragm valve with FDA membrane

Valve Body Material:

SS316L

Seal Material:

Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM

MaxWorking Pressure:

10 Bar

Max.Working Temperature:

150 degree C

Availably  size:

1”-4”, DN20-DN100

Availably connection:

Clamp/weld/thread/special connection

Availably standard:

3A/BPE/DIN/ISO/IDF

Operated:

Manual/Pneumatic/Electronic

Availably structure:

Straight, tee, U-type, tank bottom

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Leading design:

Dead conner < 3D

Certificate

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600



Description

Various configuration of Diaphragm valve

1.      Didaphragm valve with Pisitioner/Process Controller(IL-TOP)

2.      Diaphragm valve with Control Unit(C-Top)

3.      Valve position Regulator

4.      Position Sensor Module

5.      Plastic Handle

6.      Stainless steel handle

7.      Stianless steel acutor

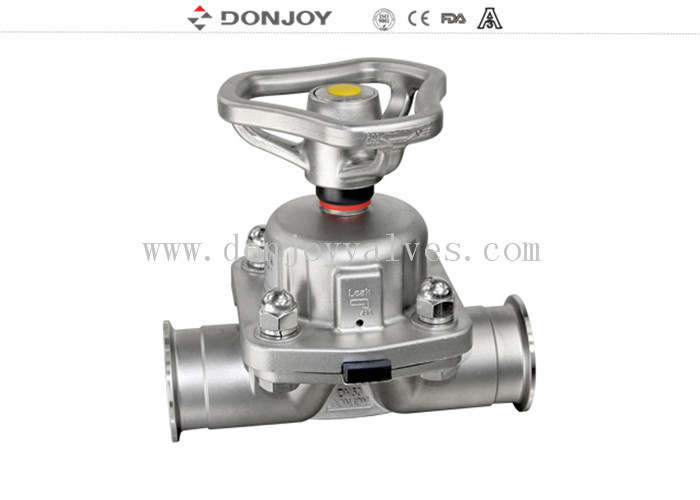

SS316L Pharmacy Sanitary Diaphragm Valve With SS Handle 0

Valve body:
Forging body blank is through a piece of stainless steel ingot, in the forging process, along with the high temperature forging provide, through extrusion blank shape change, through the forging after body density higher, the structure is more uniform, no sand hole and other impurities. Then through the processing centre carry on the high precision maching.

Casting body is made by the mould paraffin wax model, paraffin wax model infitration in ceramic, to let the whole body wax mold surface form a layer of strong ceramic. Melt wax mold, then into the melting of the stainless steel solution, after cooling knock off the appearance of ceramic, blank body is made uo.Casting size is very accurate, the outward appearance is a smooth, clean and tidy.



Operating Principles

1. The diaphragm provide the body seal as well as the seat seal. There are no paths to the outside environment, so it suitable for aseptic processes

2. When the valve is closed a pressure pad which supports the diaphragm moves towards the sealing face on the body.When the pressure plate moves the diaphragm flexes and is forced down onto the seat area in the centre of the body thus closing of the flow path through the body.

3. The inter relationship of body to the pressure plate prevents over compression of the diaphragm

4. The valve can be manual operation and pneumatic operation control tops of solenoid valves

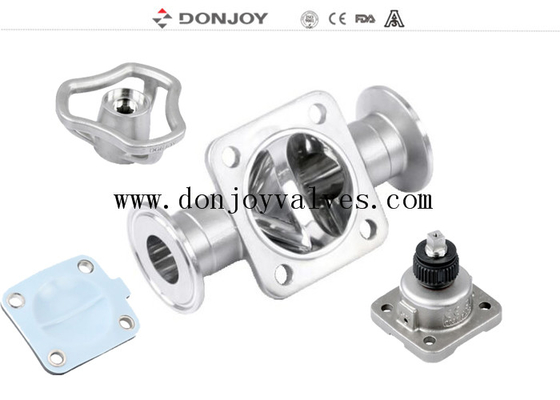

Drawing



SS316L Pharmacy Sanitary Diaphragm Valve With SS Handle 1

SS316L Pharmacy Sanitary Diaphragm Valve With SS Handle 2

Cetificate of Diaphragm valve

1.All synthetic resin and additive are comply with FDA Certification.

2.Material chemical composition, physical properties and manufacturing process are documented.

3.3-a consistency the authentication

4.CE-PED/97/23/EC

5.EN 10204-3.1



Applications:

Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.



The valve is excellent for flow control as well as open/close control.

The diaphragm valves are better in feature of flow in comparison with other valves. It is eaiser to clean up and better to process the substance with particles. The phenomenon of air pocket is rare during application of flow control.



Multi-port diaphragm valve combination


SPA configuration and GMP configuration
SS316L Pharmacy Sanitary Diaphragm Valve With SS Handle 3
SS316L Pharmacy Sanitary Diaphragm Valve With SS Handle 4

Tag: sanitary valves, Phamacy valve, Diaphrgm valve
