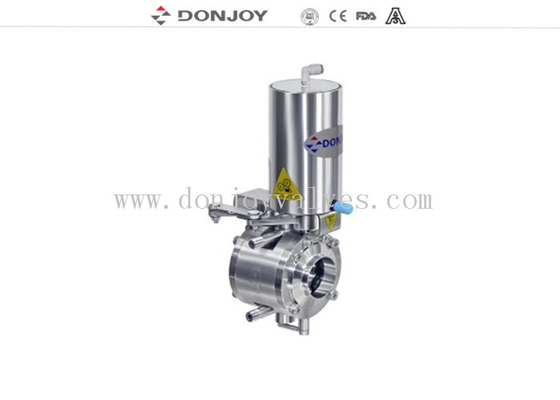

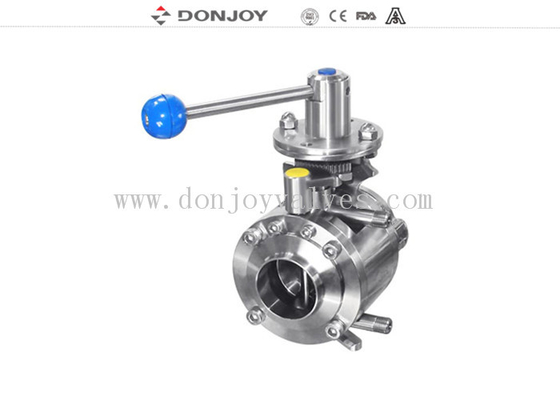

DN65 Donjoy Double Seat Butterfly Valves B Type With Valve Chamber Can Be Flushed

DN65 Donjoy Double Seat Butterfly Valves B Type With Valve Chamber Can Be Flushed

    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VDF4010Q1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box or wooden box
    Delivery Time: 5-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 1000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Sanitary Butterfly Valve Materials: 304/316L
    Size: DN50-DN100,2"-4" Operation: Manual Pull Handle
    Max Pressure: 10Bar Gasket: EPDM, SILICONE,VITION
    High Light:

    DN65 Double Seat Butterfly Valves

    ,

    Donjoy Double Seat Butterfly Valves

    ,

    10Bar Sanitary Butterfly Valve

    DN65 Donjoy  Double seat butterfly valve B type with valve chamber can be flushed



    Internal leakage can be ovserved

    valve chamber can be flushed

    Zero risk of contanination


    Details
    Gasket: NBR, MVQ, FPM, EPDM
    Connection: SMS, RJT, DIN,3A,ISO, Triclamp , thread, Flange, Welding
    Operation: Manual, Pneumatic actuator, Contorl head, Position Sensor
    Specifications

    Product Name:

    Donjoy Double seat butterfly valve B type with valve chamber can be flushed

    Valve Body Material:

    SS316L

    Seal Material:

    EPDM (standard) FPM/SILICON/NBR, FDA177.2600

    Max Working Pressure:

    10Bar

    Max.Working Temperature:

    120 degree C

    Available  size:

    DN50-DN100,2"-4"

    Available connection:

    Clamp/welding/thread/special connection

    Available standard:

    3A/DIN/SMS/RJT/ISO/IDF

    Operated:

    Manual,Pneumatic, Electric

    Handle application:

    Two-position handle / three-position handle / four-position pull handle / multi-position plastic handle / multi-position stainless steel handle

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

    Application scope:

    Dairy,food, beverage, pharm

    Grade of handle:

    3 - grade



    Application:

    The mixproof butterfly valve as a process element for the separation of media is suitable for a variety of applications

    In CIP systems, for separating CIP media

    • In flush-out processes
    • In water management
    • As pipe section shut-off valve for separating media
    • In CIP/gas management (breweries)
    • At storage tanks for separating product/CIP
    • As CIP return valve in a valve matrix
    • Preferably suitable for liquid and gaseous media withoutsuspended matter/particles

    Drawing of valve
    DN65 Donjoy Double Seat Butterfly Valves B Type With Valve Chamber Can Be Flushed 0
    Packaging Details
    Bubble pack for each valve.
    Outside packing is carton or plywood cases.
    Or as per the request of customers.

    Delivery details
    Usually within 20 days after receiving T/T down payment.

    Tag : Donjoy Valves, Double seat valve, Mixing proof butterfly valves
