Place of Origin:
China
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
NO.
Contact Us

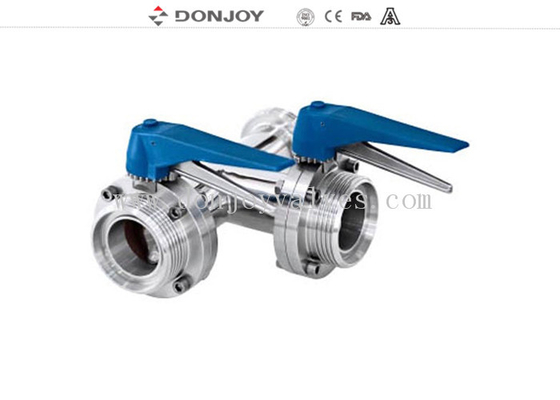

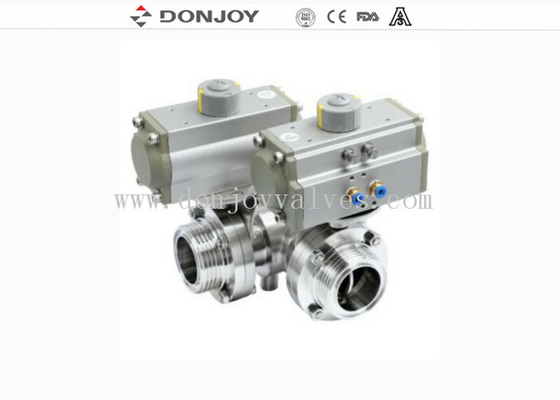

DN 50 Thread three-way butterfly valve with Aluminum Actuator for Food grade processing
Specifications
|
Product Name: |
DN 50 Thread three-way butterfly valve with Aluminum Actuator for Food grade processing |
|
Valve Body Material: |
SS304/316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
MaxWorking Pressure: |
5Bar |
|
Max.Working Temperature: |
120 degree C |
|
Available size: |
1''-4'', DN25-DN100 |
|
Available connection: |
Clamp/welding/thread/special connection |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Manual,Pneumatic, Electric |
|
Handle application: |
Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Structure: |
3 ports with 2 handle |
|
Feature: |
The valves body of various connection could be displaced. |
Features of sanitary butterfly valve:
1. Both the rubber sealing ring and valve plate of the butterfly valve adopt imported parts to ensure the performance and service life of the butterfly valve.
2. Using high-precision numerical control lathe to fine-turn the valve body to ensure the reliable interchangeability of the butterfly valve and avoid the trouble of changing the rubber and not guaranteeing its performance.
3. The valve stem is inlaid with nylon bushings, which reduces friction and thus opens flexibly and easily.
4. The steel parts are all made of stainless steel, and the rubber is made of food rubber, which has high sanitary quality.
5. The diameter of the valve body is equal to the inner diameter of the pipe. When opening, the narrow and streamlined valve plate is in the same direction as the fluid, with large flow and low resistance, and no material accumulation.
6. The handle adopts pull type and pull type, which can bear large operating torque and is not easy to be broken.
7. The opening and closing range is 0~90 degrees, and it can be fixed at every 15 degrees position. It is adjustable, opens and closes quickly, and is easy to operate.
8. The valve body adopts detachable connection, simple structure and convenient maintenance.
9. The shape is light and beautiful, the surface is bright and not sticky, and there is no burr.
10. After strict strength and sealing tests, the quality is guaranteed.
11. According to standards: ISO, DIN, IDF, SMS, 3A, etc.
Operation selection as follows
Drawing of butterfly valve
Delivery details
Usually within 20 days after receiving T/T down payment.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in a plywood case or carton package for small parts.
If delivery by sea,the package is wooden box.
Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery
T/T in advance, 50% as deposit, and finish 50% balance payment before delivery
100% TT in advance
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 40 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
