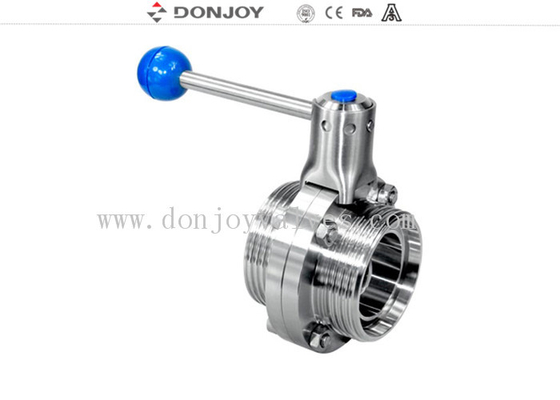

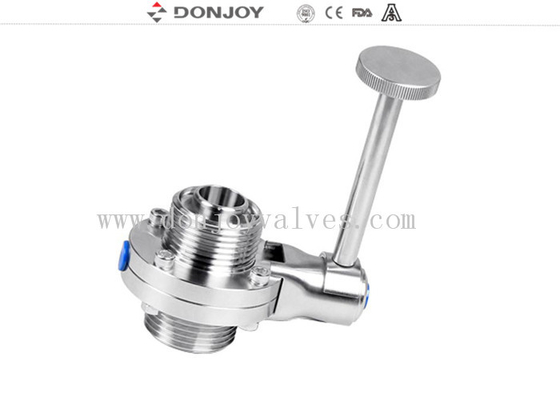

SS316L RJT Thread Manual Butterfly Valves With Long Pull Handle

SS316L RJT Thread Manual Butterfly Valves With Long Pull Handle

    • SS316L RJT Thread Manual Butterfly Valves With Long Pull Handle
    • SS316L RJT Thread Manual Butterfly Valves With Long Pull Handle
  • SS316L RJT Thread Manual Butterfly Valves With Long Pull Handle

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VDF130S1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Delivery Time: 5-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 1000pcs per month
    Contact Now
    Detailed Product Description
    Materials: 304 / 316L Size: DN10 - DN300, 1/2" - 12"
    Operation: Plastic Multi - Position Handle Connection Mode: Threaded Etc.
    Structure: Multi - Position Handle And Butterfly Valve Appication: Food,Milk, Beer...
    Gasket: Silicone
    High Light:

    RJT Thread Manual Butterfly Valves

    ,

    SS316L Manual Butterfly Valves

    ,

    DN300 Manual Butterfly Valves

    SS316L RJT Thread Manual Butterfly Valves with long pull handle
    Technical Specifications
    Max.Pressure: 10Bar(DN25-DN100), 8Bar (DN125-DN150), 5Bar( DN200-DN300)
    Min. Pressure:0.2Bar
    Working Temperature: -10C° to +120 Degree( EPDM)


    Specifications

    Product Name:

    RJT Hex Nut/Thread Manual Butterfly valve SS316L/304,
    Female/Male Butterfly Valve

    Valve Body Material:

    SS304/316L

    Seal Material:

    EPDM (standard) FPM/SILICON/NBR, FDA177.2600

    MaxWorking Pressure:

    5Bar

    Max.Working Temperature:

    120 degree C

    Available  size:

    DN10-DN300, 1/2"-12"

    Connection

    Thread, Flange, Weld, Clamp..


    Body: Made of forged material.Fully precision machined by CNC machine..
    Connection: clamp end and weld end Male end, female end are available from 1/2", 3/4" up to 4".
    Disk: Made of forged material.Fully precision machined by CNC machine.
    Material grade:304, 316L
    Size range:From 1/2", 3/4" up to 12".
    Seal(Gasket): EPDM, SILICON, VITON
    Design and FeaturesCompact and robust Design
    Available sizes DN25-DN300(1/2"-12")
    Multi-Position handle is suitable up to DN100/4"
    Pull hand is suitable up to DN25-DN300(1/2"-12") PED97/23EC FDA.177.2600
    The valve body can be changeable with any kind of connection

    Description
    Our Butterfly valve body could be offered with Clamp end, Weld end, Male end, female end.
    The different handle of 4 positions, 12 position and other styles that you inquired or actuator for your widely used. Butterfly valve body and disk are all made from full CNC machined, high polished that demanded with the high quality in the developed country around the world.

    Application
    Butterfly valve, no matter manually or automatically, can be used in food-processing,pharmacy and chemical industries.It is necessary you specify at the time of order heat numbers and MTR's are required.
    Material Test Reports (MTR's) are available to document all heat numbers.

    Operating Torque(N.M)

    DN25/1"

    DN40/1.5"

    DN50/2"

    2.5"

    DN65

    3"

    DN80

    DN100/4"

    DN125

    DN150

    3

    4

    5

    10

    12

    14

    18

    25

    40

    55


    Drawing of RJT Butterfly valves
    SS316L RJT Thread Manual Butterfly Valves With Long Pull Handle 0


    Packing Details
    Bubble pack for each valve.
    Outside packing is carton or plywood cases.
    Or as per the request of customers.

    Delivery details
    Usually within 20 days after receiving T/T down payment.
    If you need more information, Please do not hesitate to contact us.


    Tag :Donjoy Sanitary valve, Butterfly valves.  Food grade valves
