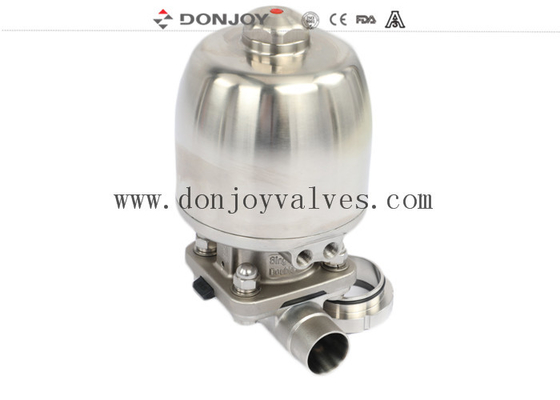

BPE 3 Way Sanitary Diaphragm Valves For Phamcy SS316L DONJOY Membrane

BPE 3 Way Sanitary Diaphragm Valves For Phamcy SS316L DONJOY Membrane

  • BPE 3 Way Sanitary Diaphragm Valves For Phamcy SS316L DONJOY Membrane
BPE 3 Way Sanitary Diaphragm Valves For Phamcy SS316L DONJOY Membrane
Product Details:
Place of Origin: China
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO.T-H
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Contact Now
Detailed Product Description
Product Name: Pneumatic Radial Diaphramg Valve With Cylindrical Port Conveying Port: 1 Or 2
Logo: Donjoy Or Customized Feature: Regulating Fluid
Position Of Actuator: Be Downward Max Pressure: 6bar
High Light:

BPE 3 Way Diaphragm Valves

,

Sanitary Diaphragm Valves For Phamcy

,

SS316L Sanitary Diaphragm Valves

BPE 3 way Diaphragm valves for Phamcy /SS316L DONJOY membrane valve

Specifications

Product Name:

BPE 3 way Diaphragm valves for Phamcy /SS316L DONJOY membrane valve

Valve Body Material:

SS316L

Seal Material:

Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM

MaxWorking Pressure:

6 Bar

Max.Working Temperature:

120 degree C

Availably  size:

3/4''-2.5'', DN20-DN65

Availably connection:

Clamp/weld/thread/special connection

Availably standard:

3A/BPE/DIN/ISO/IDF

Operated:

Manual,Pneumatic

Availably structure:

Straight, tee, U-type, tank bottom

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Logo of product:

With "DONJOY" or customized

Combination of valve and actuator:

Flexible combination on valve body


Description
Various configuration of Diaphragm valve
1.      Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
2.      Diaphragm valve with Control Unit(C-Top)
3.      Valve position Regulator
4.      Position Sensor Module
5.      Plastic Handle
6.      Stainless steel handle
7.      Stianless steel acutor
8.      Electric Diaphragm valve

9.      Plastic actuator
 BPE 3 Way Sanitary Diaphragm Valves For Phamcy SS316L DONJOY Membrane 0



Usage of Diaphragm Valves

The diaphragm valve can be used with corrosive liquids at low temperatures and pressures. These valves can be used for potable water, air, sludge, chemicals, as well as low-velocity slurries and effluents. They can be installed near pumps and bends, as well as vertical pipelines.

Common Applications of Diaphragm Valves

Diaphragm valves are widely used in many industries due to their affordability, effectiveness, and variety. There are a host of possible applications for diaphragm valves, but here are some of the most common:

Advantages of Diaphragm Valves

  • This valve has the best corrosion resistance or abrasion resistance that we could find.
  • There is no steam leakage.
  • They are suitable for use with hazardous chemicals and radioactive fluids.
  • Food and pharmaceutical processing use these valves since they won't allow contamination of the flow medium.
  • The valves are simple in construction and easy to operate.


Certificate
3A / 54-02 (1580), PED / 97 / 23 / EC, FDA. 177. 2600

Diaphragm valve Gasket
1. EPDM/ Silicone
2.EPDM+PTFE Ahersive
3.EPDM/EPDM Seperate
BPE 3 Way Sanitary Diaphragm Valves For Phamcy SS316L DONJOY Membrane 1

Product drawing
Valve Body
BPE 3 Way Sanitary Diaphragm Valves For Phamcy SS316L DONJOY Membrane 2
BPE 3 Way Sanitary Diaphragm Valves For Phamcy SS316L DONJOY Membrane 3
Surface Ra
BPE 3 Way Sanitary Diaphragm Valves For Phamcy SS316L DONJOY Membrane 4
Body :
Casting/ Forging
BPE 3 Way Sanitary Diaphragm Valves For Phamcy SS316L DONJOY Membrane 5

Packaging
Bubble pack for each valve. Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery
Usually within 20 days after receiving T/T down payment.
