| Place of Origin: | CHINA |
| Brand Name: | DONJOY |
| Certification: | CE,3A,FDA |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $400 - 1,200 / Piece |
| Packaging Details: | carton box |
| Delivery Time: | according to order |
| Payment Terms: | T/T, LC, Credit Card |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Material: | SS304 / 316 | Media: | Water Etc. |
|---|---|---|---|
| Operate Mode: | Pneumatic | Size: | DN25 - DN150 |
| Pressure: | Medium Pressure | Valve Seat: | Single Seat |
| Product Name: | Reversing Valve | Ra: | Could Reach ≤0.5μm |
| High Light: | Sanitary Reversing Pneumatic Divert Seat Valve,316L Stainless Steel Divert Seat Valve,DN150 Reversing Divert Seat Valve |
||

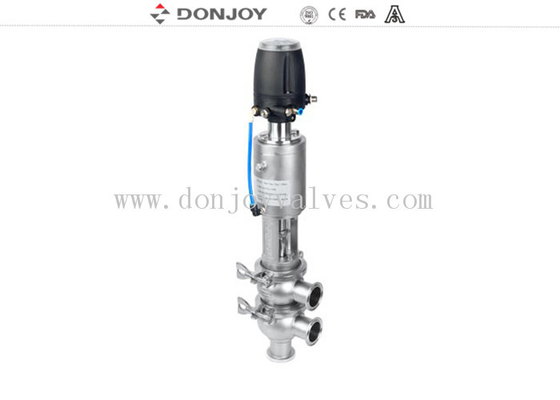

304 Pneumatic Valves Double Seat Divert Seat 316L Divert Seat Valve Stainless Steel Sanitary Reversing Valve
Quick detail
Aseptic Reversing Seat Valve
Aseptic Regulating Seat Valve
Aseptic Divert Seat Valve
Specification
|
Product Name: |
sanitary aseptic reversing valve with pneumatic actuator for conveying fluid |
|
Valve Body Material: |
Stainless steel |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Max Working Pressure: |
10 bar |
|
Max.Working Temperature: |
130°C |
|
Available size: |
DN25 - DN150 or 1" - 6" |
|
Available connection: |
Clamp/welding/thread/special connection |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Pneumatic operation |
|
Structure |
Aseptic type |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic etc |
|
Body seat |
single seat |
|
Body type |
20type,30type,11type,12type,21type,22type,31type,32type |
|
Feature of seal: |
Elastic compression, friction - free |
Feature
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining
Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Product drawings
