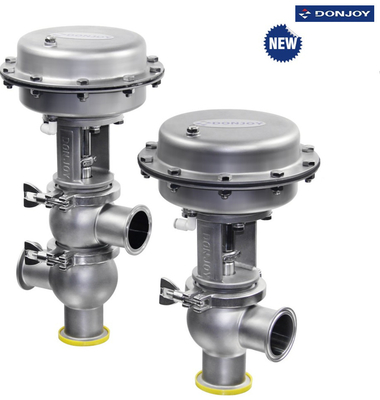

Sanitary Mainifold Mixproof Reversing Seat Valve Food Grade SS316 DN150

Sanitary Mainifold Mixproof Reversing Seat Valve Food Grade SS316 DN150

Sanitary Mainifold Mixproof Reversing Seat Valve Food Grade SS316  DN150

Product Details:

Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $400 - 1,200 / Piece
Packaging Details: carton box
Delivery Time: according to order
Payment Terms: T/T, LC, Credit Card
Supply Ability: 1000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Material: SS304 / 316 Media: Water Etc.
Operate Mode: Pneumatic Size: DN25 - DN150
Pressure: Medium Pressure Valve Seat: Single Seat
Product Name: Reversing Valve Ra: Could Reach ≤0.5μm
High Light:

Sanitary Mainifold Mixproof Valve

,

SS316 Reversing Seat Valve

,

Food Grade Reversing Seat Valve

Food Grade SS316 Sanitary Mainifold Mixproof Valve


Quick detail
Aseptic Reversing Seat Valve
Aseptic Regulating Seat Valve
Aseptic Divert Seat Valve



Specification

Product Name:

sanitary aseptic reversing valve with pneumatic actuator for

conveying fluid

Valve Body Material:

Stainless steel

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Max Working Pressure:

10 bar

Max.Working Temperature:

130°C

Available size:

DN25 - DN150 or 1" - 6"

Available connection:

Clamp/welding/thread/special connection

Available standard:

3A/DIN/SMS/RJT/ISO/IDF

Operated:

Pneumatic operation

Structure

Aseptic type

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Application scope:

Dairy, food, beverage, pharmacy, cosmetic etc

Body seat

single seat

Body type

20type,30type,11type,12type,21type,22type,31type,32type

Feature of seal:

Elastic compression, friction - free



Feature
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining


Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor


Product drawings

Sanitary Mainifold Mixproof Reversing Seat Valve Food Grade SS316  DN150 0
