3Way T type Sanitary Diaphragm Valve for Phamacy

3Way T type Sanitary Diaphragm Valve for Phamacy

  • 3Way T type Sanitary Diaphragm Valve for Phamacy
  • 3Way T type Sanitary Diaphragm Valve for Phamacy
3Way T type Sanitary Diaphragm Valve for Phamacy
Product Details:
Place of Origin: China
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO. MINI-VGM0S2, NO.T-K
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Contact Now
Detailed Product Description
Product Name: Tee Diaphragm Valve Max Size: DN100
Gasket: EPDM+PTFE/ EPDM Structure: T Port
Max Temp: -30 To 150 Degree C(depending On Diaphragm) Max Pressure: 10bar/146psi

3Way T type Sanitary Diaphragm Valve for Phamacy

3 Way diaphragm valve

Zero Leg diaphramg valve

T-diaphragm valve

Manual/ Pneumatic operation


Specifications

Product Name:

SS316L T type Three - way plastic manual Sanitary Diaphragm Valve

Valve Body Material:

SS316L

Seal Material:

Single sillcone /EPDM gasket ,Adhesive PTFE+EPDM
Two pieces PTFE+EPDM

Max Working Pressure:

10 Bar

Max.Working Temperature:

150 degree C

Material requirement:

Sanitary level

Available  size:

1"-4", DN25-DN100

Available connection:

Clamp/weld/thread/special connection

Available standard:

3A/BPE/DIN/ISO/IDF

Available structure:

Straight, tee, U-type, tank bottom

Control:

Smart valve positioner / C-TOP control / position sensor

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc


Applications
Manually operated diaphragm valve is specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.
The valve is excellent for flow control as well as for open/close duties.
The diaphragm valve is better in feature of flow in comparison with other valves. It si eaiser to clean up and better to process the sunstance with particles. The phenomenon of air pocket is rare during application of flow control.


Valve Body
Forging body

Forging body blank is through a piece of stainless steel ingot, in the forging process, along with the high temperature forging provide, through extrusion blank shape change, through the forging after body dendity higher, the structure is more uniform, no sand hole and other impurities. Then through the processing center carry on the high precision machining.
Casting body
Casting body is made by the mould paraffin wax model, paraffin wax model infiltratiion in ceramic, to let the whole body wax mold surface form a layer of strong ceramic. Melt wax modl, then into the melting of the stainless steel solution, after cooling knock off the appearance of ceramic, blank body is made up. Casting size is very accurate, the outward apperance is smmoth, clean and tidy.


Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

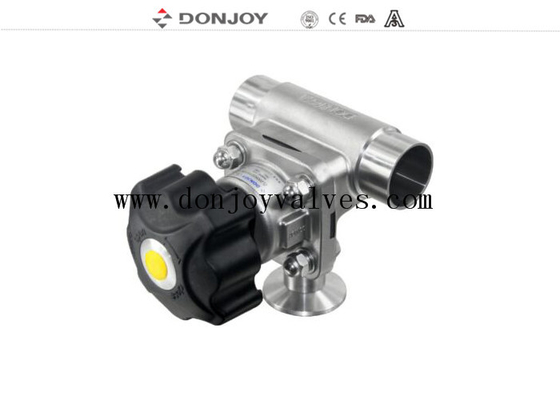

Photos of SS316L T type Three - way plastic manual Sanitary

Diaphragm Valve
