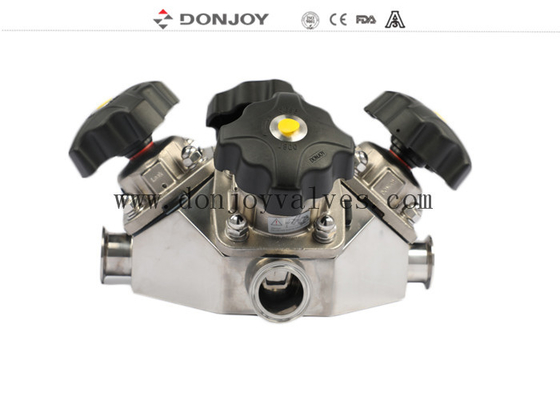

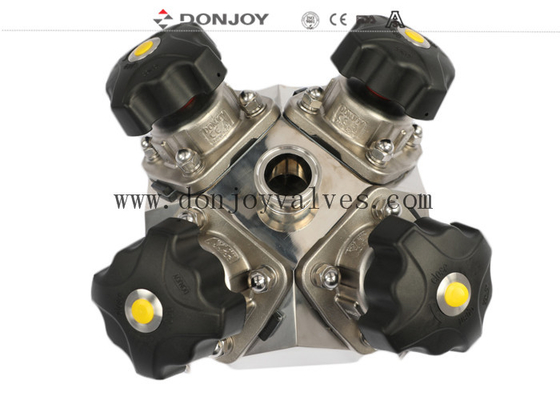

316L DONJOY Multiport phamacy Diaphragm Valve with 54A Type

316L DONJOY Multiport phamacy Diaphragm Valve with 54A Type

  • 316L DONJOY  Multiport phamacy Diaphragm Valve with 54A Type
  • 316L DONJOY  Multiport phamacy Diaphragm Valve with 54A Type
316L DONJOY  Multiport phamacy Diaphragm Valve with 54A Type
Product Details:
Place of Origin: China
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO.M-54A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Contact Now
Detailed Product Description
Product Name: Multiport Diaphragm Valve Materials: SS316L / 1.4404
Size: 1'' - 4'', DN25 - DN100 Operation: Manual Or Pneumatic
Gasket: EPDM + PTFE/ EPDM Feature: Round Steel Valve Body
Structure: Multi - Directional Brand: DONJOY

DONJOY 316L Multiport phamacy Diaphragm Valve with 54A Type

Sanitary valves

Donjoy diaphragm valves



Specifications

Product Name:

316L Stainless Steel Multipass Pneumatic Diaphragm Valve

with ss Actuator Controller

Valve Body Material:

round steel valve body 1.4404/316L

Max.WorkingTemperature:

-30 to 150 degree C(depending on diaphragm)

Available  size:

1/4”-3/4”, DN6-DN15

Available connection:

Clamp/weld/thread/special connection

Available standard:

3A/BPE/DIN/ISO/IDF

Operation mode:

Pneumatic operation

Special composition:

multipass structure

Structure:

Round steel valve body with multi-port.

Availably structure:

Straight, tee, U-type, tank bottom

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Packaging Details:

Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.



Applications:

Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.

The valve is excellent for flow control as well as open/close control.

The diaphragm valves are better in feature of flow in comparison with other valves. It is eaiser to clean up and better to process the substance with particles. The phenomenon of air pocket is rare during application of flow control.



Valve Body:

Forging body blank is through a piece of stainless steel ingot, in the forging process, along with the high temperature forging provide, through extrusion blank shape change, through the forging after body dendity higher, the structure is more uniform, no sand hole and other impurities. Then through the processing center carry on the high precision machining.

Casting body is made by the mould paraffin wax model, paraffin wax model infiltratiion in ceramic, to let the whole body wax mold surface form a layer of strong ceramic. Melt wax modl, then into the melting of the stainless steel solution, after cooling knock off the appearance of ceramic, blank body is made up. Casting size is very accurate, the outward apperance is smmoth, clean and tidy.



Round steel body chooses ultrapure materials, cut into squares material directly by CNC cutting equipment, To a five axis CNC machining center for precision machining.


Description

Various configuration of Diaphragm valve

1.      Diaphragm valve with Pisitioner/Process Controller (IL-TOP)

2.      Diaphragm valve with Control Unit (C-Top)

3.      Valve position Regulator

4.      Stainless steel acuator

5.      Plastic actuator

6.      Body: Casting / Forging/round steel valve body



Packaging Details

Bubble pack for each valve.

Outside packing are carton or plywood cases.

Or as per the request of customers.



Delivery details

Usually within 20 days after receiving T/T down payment.



Valve body

Please check the detailed information below for the valve body of diaphragm valve.

316L DONJOY  Multiport phamacy Diaphragm Valve with 54A Type 0

Operation

316L DONJOY  Multiport phamacy Diaphragm Valve with 54A Type 1





Tags: Donjoy Diaphragm valves,  Multil port diaphragm valve,  Phamacy valve
