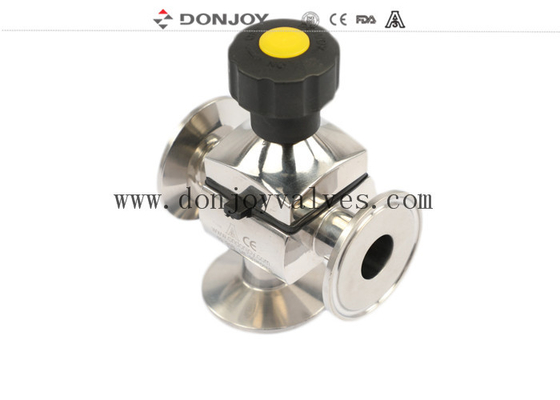

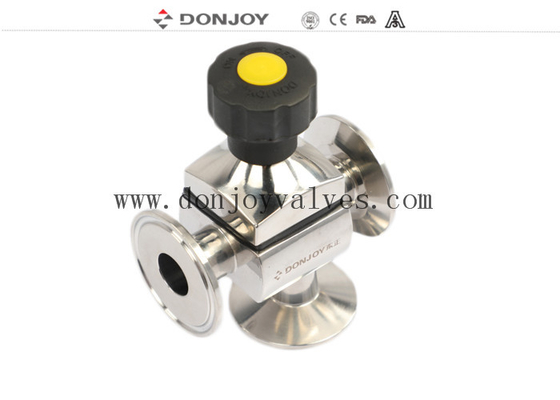

SS316L 1/2" Sanitary Diaphragm Valve L Type With No Dead Leg

SS316L 1/2" Sanitary Diaphragm Valve L Type With No Dead Leg

No Dead Leg Sanitary Diaphragm Valve

SS316L Sanitary Diaphragm Valve

1/2" Sanitary Diaphragm Valve

Place of Origin:

China

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.T-H

Contact Us

Request A Quote
Product Details
Product Name:
Donjoy Diaphragm Valve
Connection:
Tri Clamp
Brand:
DONJOY
Feature:
Regulating Fluid
Operation:
Manual
Max Pressure:
6bar
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

SS316L 1/2" Sanitary Diaphragm Valve L Type With No Dead Leg
3 way diaphragm valve

L type diaphragm valves

Multi port diaphragm valves

Donjoy diaphragm valves


Specifications

Product Name:

Pneumatic Radial Diaphragm Valve for phamacy hygienic process

Valve Body Material:

SS316L

Seal Material:

Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM

MaxWorking Pressure:

6 Bar

Max.Working Temperature:

120 degree C

Availably  size:

3/4''-2.5'', DN20-DN65

Availably connection:

Clamp/weld/thread/special connection

Availably standard:

3A/BPE/DIN/ISO/IDF

Operated:

Manual,Pneumatic

Availably structure:

Straight, tee, U-type, tank bottom

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Logo of product:

With "DONJOY" or customized

Combination of valve and actuator:

Flexible combination on valve body


Description
Various configuration of Diaphragm valve
1.      Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
2.      Diaphragm valve with Control Unit(C-Top)
3.      Valve position Regulator
4.      Position Sensor Module
5.      Plastic Handle
6.      Stainless steel handle
7.      Stianless steel acutor
8.      Electric Diaphragm valve
9.      Plastic Acutor
SS316L 1/2" Sanitary Diaphragm Valve L Type With No Dead Leg 0
Certificate
3A / 54-02 (1580), PED / 97 / 23 / EC, FDA. 177. 2600

Diaphragm valve Gasket
1. EPDM/ Silicone
2.EPDM+PTFE Ahersive
3.EPDM/EPDM Seperate
SS316L 1/2" Sanitary Diaphragm Valve L Type With No Dead Leg 1

Product drawing
Valve Body
SS316L 1/2" Sanitary Diaphragm Valve L Type With No Dead Leg 2
SS316L 1/2" Sanitary Diaphragm Valve L Type With No Dead Leg 3
Surface Ra
SS316L 1/2" Sanitary Diaphragm Valve L Type With No Dead Leg 4
Body :
Casting/ Forging
SS316L 1/2" Sanitary Diaphragm Valve L Type With No Dead Leg 5

Packaging
Bubble pack for each valve. Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery
Usually within 20 days after receiving T/T down payment.
