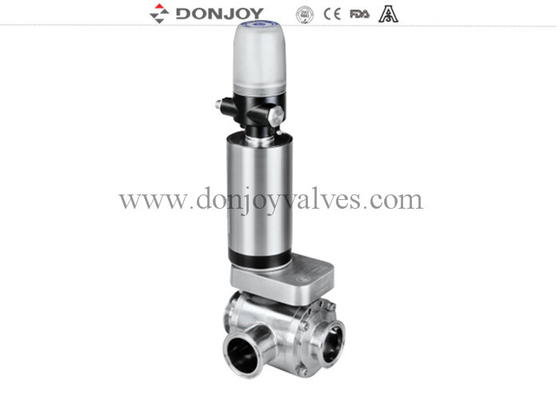

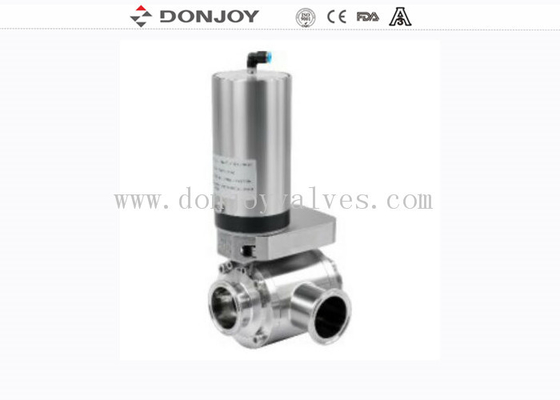

Donjoy SS316L DN65 Pneumatic 3 Way Butterfly Valves With T Type

Donjoy SS316L DN65 Pneumatic 3 Way Butterfly Valves With T Type

T Type Pneumatic Butterfly Valves

DN65 Pneumatic Butterfly Valves

SS316L Butterfly Valves

Place of Origin:

China

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.

Contact Us

Request A Quote
Product Details
Product Name:
3 Way Butterfly Valve
Materials:
304 / 316L
Size:
1'' - 6'', DN25 - DN150
Operation:
Manual
Connection:
Clamp Ends
Structure:
Pneumatic Type
Feature:
3 Way Type
Valve Body:
Butterfly
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box
Delivery Time
5-30 working days
Payment Terms
T/T, LC, Credit Card
Supply Ability
500pcs per month
Product Description

Donjoy SS316L DN65 Pneumatic 3 Way Butterfly Valves with T type

Specifications

Product Name:

Pneumatic Three-way butterfly valve

Valve Body Material:

SS304/316L

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Pressure:

Vacuum to 10Bar

Temperature:

-20 degree to 130 degree,depending on the seal material

Available  size:

1''-64', DN25-DN100

Available connection:

Clamp/welding/thread/special connection

Available standard:

3A/DIN/SMS/RJT/ISO/IDF

Operated:

Manual,Pneumatic, Electric

Handle application:

Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position

stainless steel handle

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Structure:

3 ports with 1 handle

Feature:

The valve body of various connections could be displaced.



Drawing

Donjoy SS316L DN65 Pneumatic 3 Way Butterfly Valves With T Type 0

Donjoy SS316L DN65 Pneumatic 3 Way Butterfly Valves With T Type 1

Donjoy SS316L DN65 Pneumatic 3 Way Butterfly Valves With T Type 2



Type

1.Manual three way butterfly valve

2.Pneumatic three way butterfly valve

3.Pneumatic three way butterfly valve+feedback device

4.Pneumatic three way butterfly valve+controller

5.Pneumatic three way butterfly valve + valve positioner



Synchronous three-way butterfly valve:

One drive device can realize L type and T type three-way applications, opening and closing synchronization, low torque,long life, non-retention,

no dean angles, very flexible function combination,and it is efficient, economical and simple



Asynchronous three way butterfly valve:

Multiple drive devices,each drive independently and freely control the valve


Connection
Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.


Delivery details
Usually within 20 days after receiving T/T down payment.


Description
Please check the picture below for detailed information.



FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in a plywood case or carton package for small parts.
If delivery by sea,the package is wooden box.



Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery

T/T in advance, 50% as deposit, and finish 50% balance payment before delivery

100% TT in advance



Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.



Q4. How about your delivery time?
A: Generally, it will take 3 to 40 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.



Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
