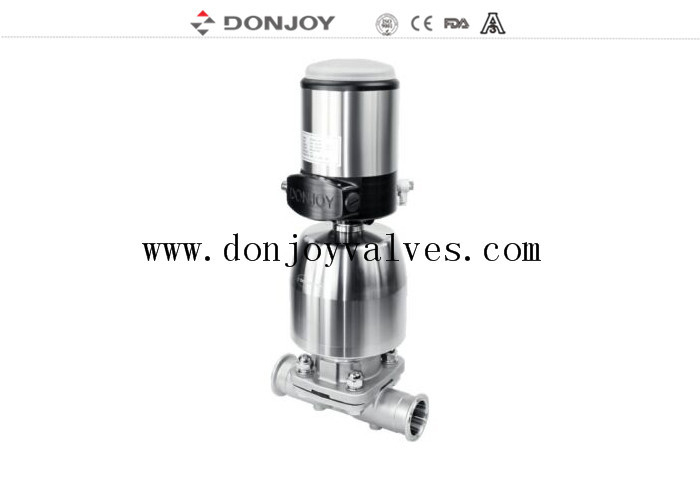

Stainless Steel Pneumatic 2 Way Diaphragm Valve With Proportional Control

Large Image : Stainless Steel Pneumatic 2 Way Diaphragm Valve With Proportional Control

Product Details:

Place of Origin:	China
Brand Name:	Donjoy
Certification:	CE,3A,FDA
Model Number:	No.VGM01+NO.ZZ-H

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	carton box
Delivery Time:	10-30 working days
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	30 sets 20 working dyas

Contact Now

Detailed Product Description

Product Name:	2 Way Diaphragm Valve	Suitable Temperature:	-10 To 120 Degree (EPDM)
Operation:	Stainless Steel Handwheel	Gasket Optional:	EPDM/ SILICONE/ FPM, EPDM+PTFE
Surface Polishing:	Ra<0.6um	Material:	Stainless Steel
Highlight:	stainless steel 2 way diaphragm valve , Pneumatic 2 way diaphragm valve , stainless steel pneumatic diaphragm valve

Stainless Steel pneuamtic 2 way diaphragm valve with Proportional control

Specifications

Product Name:	Stainless Steel pneuamtic 2 way diaphragm valve with Proportional control
Valve Body Material:	SS316L
Seal Material:	Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM
MaxWorking Pressure:	10 Bar
Max.Working Temperature:	150 degree C
Availably size:	1”-4”, DN20-DN100
Availably connection:	Clamp/weld/thread/special connection
Availably standard:	3A/BPE/DIN/ISO/IDF
Operated:	Manual/Pneumatic/Electronic
Availably structure:	Straight, tee, U-type, tank bottom
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Leading design:	Dead conner ＜ 3D
Certificate	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Description

Various configuration of Diaphragm valve

1. Didaphragm valve with Pisitioner/Process Controller(IL-TOP)

2. Diaphragm valve with Control Unit(C-Top)

3. Valve position Regulator

4. Position Sensor Module

5. Plastic Handle

6. Stainless steel handle

7. Stianless steel acutor

Drwaing of products

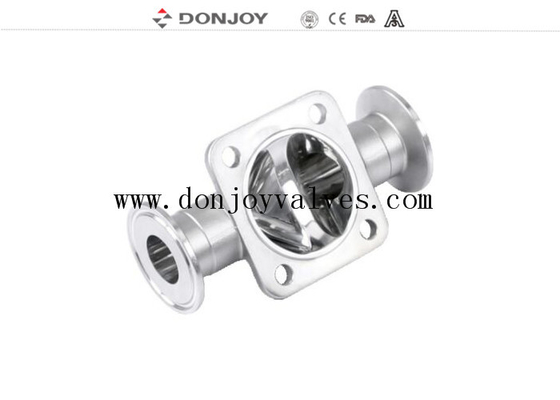

Stainless Steel Pneumatic 2 Way Diaphragm Valve With Proportional Control 0

Stainless Steel Pneumatic 2 Way Diaphragm Valve With Proportional Control 1
