Place of Origin:
China
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
CGMOS1
Contact Us

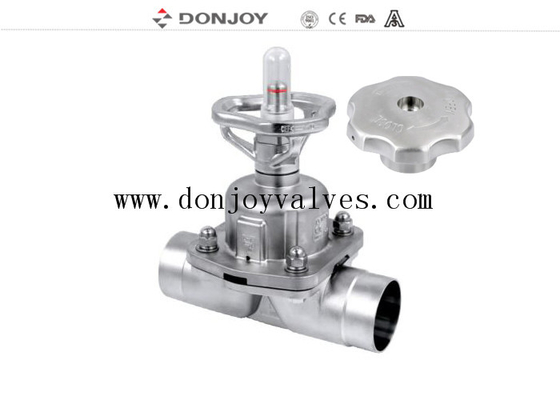

SS316L Donjoy phamacy diaphragm valve with ASME BPE standard
Specifications
|
Product Name: |
SS316L Donjoy phamacy diaphragm valve with ASME BPE standard |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM |
|
MaxWorking Pressure: |
10 Bar |
|
Max.Working Temperature: |
150 degree C |
|
Availably size: |
1”-4”, DN20-DN100 |
|
Availably connection: |
Clamp/weld/thread/special connection |
|
Availably standard: |
3A/BPE/DIN/ISO/IDF |
|
Operated: |
Manual/Pneumatic/Electronic |
|
Availably structure: |
Straight, tee, U-type, tank bottom |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Leading design: |
Dead conner ＜ 3D |
|
Certificate |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
Description

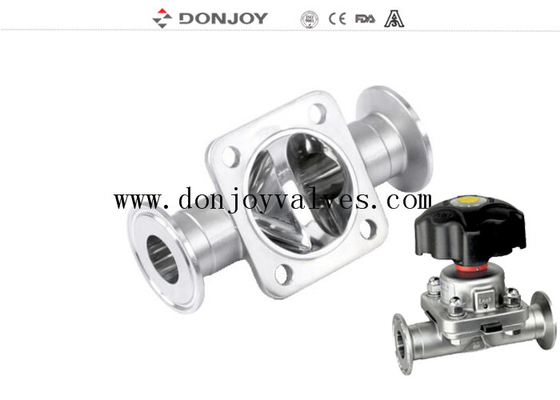

Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
2. Diaphragm valve with Control Unit(C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
Tag :Phamcy diaphragm valves, Donjoy diaphragm valve, Sanitary diaphragm valve
