Place of Origin:
China
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
NO. MINI-VGM0S2, NO.T-K
Contact Us

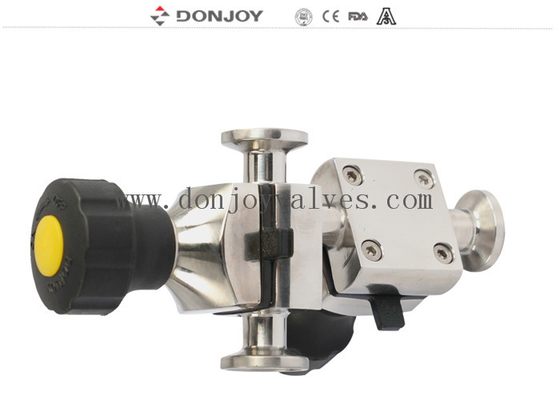

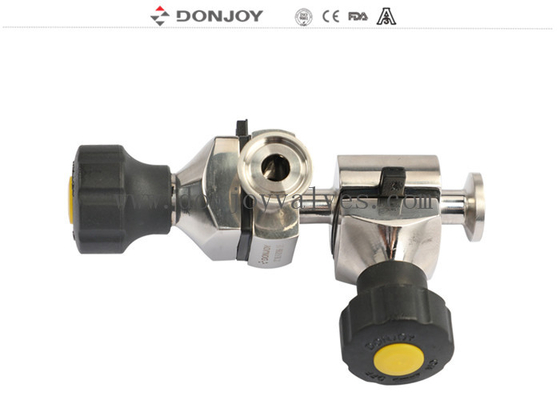

Donjoy multi port diapihragm valves/ 3way diaphragm valves
Multi port diaphragm valves
Donjoy phamacy diaphragm valves
Sanitary valves
Casting diaphragm valves
Forged diaphargm valve
Specifications
|
Donjoy multi port diapihragm valves/ 3way diaphragm valves |
Valve Body Material: |
SS316L |
Seal Material: |
Single silicone gasket/ Adhesive PTFE+EPDM/Two pieces |
Max Working Pressure: |
10 Bar |
Max.Working Temperature: |
150 degree C |
Material requirement: |
Sanitary level |
Pneumatic actuator: |
Could be selected |
Available size: |
1/4”-3/4”, DN6-DN15 |
Available connection: |
Clamp/weld/thread/special connection |
Available standard: |
3A/BPE/DIN/ISO/IDF |
Operated: |
Manual,Pneumatic |
Available structure: |
Straight, tee, U-type, tank bottom |
Control: |
Smart valve positioner / C-TOP control / position sensor |
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers. |
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Applications
Manually operated diaphragm valve is specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.
The valve is excellent for flow control as well as for open/close duties.
The diaphragm valve is better in feature of flow in comparison with other valves. It si eaiser to clean up and better to process the sunstance with particles. The phenomenon of air pocket is rare during application of flow control.
Valve Body
Forging body blank is through a piece of stainless steel ingot, in the forging process, along with the high temperature forging provide, through extrusion blank shape change, through the forging after body dendity higher, the structure is more uniform, no sand hole and other impurities. Then through the processing center carry on the high precision machining.
Casting body is made by the mould paraffin wax model, paraffin wax model infiltratiion in ceramic, to let the whole body wax mold surface form a layer of strong ceramic. Melt wax modl, then into the melting of the stainless steel solution, after cooling knock off the appearance of ceramic, blank body is made up. Casting size is very accurate, the outward apperance is smmoth, clean and tidy.
Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T deposit payment.
Size of diaphragm valve
