STUR-10 Mini Lobe Pump With 5 Leave Rotors With Tri Clamp Inlet Outlet

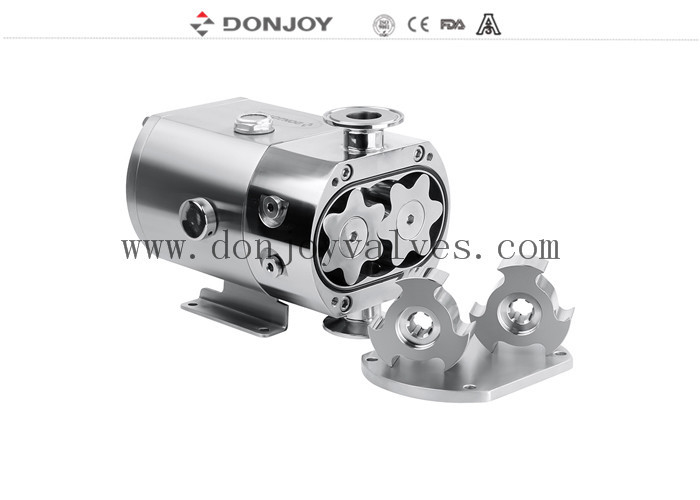

Large Image : STUR-10 Mini Lobe Pump With 5 Leave Rotors With Tri Clamp Inlet Outlet

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	STUL/R-10

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	10-30 working days
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	20 sets 30 working days

Contact Now

Detailed Product Description

Materials:	SS316L / 1.4404	Model:	STUL/R
Driver:	Electric	Connection:	Clamped/ Male/Flange
Flow Rate:	6.5-13T/h	Item Name:	Mechanical Variable Lobe Pump
Highlight:	5 leave rotors Mini Lobe pump , STUR-10 Mini Lobe pump , Tri Clamp Mini Lobe pump

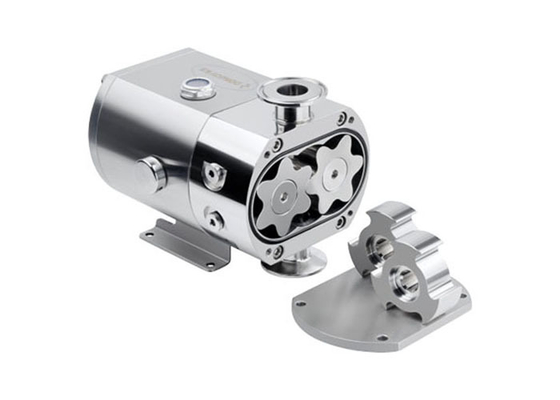

STUR-10 Mini Lobe pump with 5 leave rotors with tri clamp inlet & outlet

Specifications

Product Name:	Bare shaft Mini Lobe pump
Material:	SS304 / SS316L / 1.4301 / 1.4404
Seal Material:	SIC / SIC / VITON (Standard, FDA approval)
Max. Flow:	1.5m3/h
Max.pressure:	15bar / 217PSI
Max. working temperature:	150 C / 302 F
Max. rev:	1450 rmp
Rotor Type:	3-leaves,5 Leaves
Mechanical seal:	SIC / SiC / Viton(Standard)
Motor power:	1.5kw, 1.1KW
Feature	Movable
Voltage:	220V, 380V /440V
Motor:	ABB,SEW, SIEMENS
Surface treatment:	Inner polished
Available connection:	Clamp, Thread Butt weld, Flange
Available standard:	DIN, SMS, 3A, RJT, ISO / IDF
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Delivery details:	Normally within 20 days after receiving T/T down payment.

What different of STUL/R and TUL/R

STUR-10 Mini Lobe Pump With 5 Leave Rotors With Tri Clamp Inlet Outlet 0

Applications
This pump is deal for the transfer of viscous as well as low-wiscous media in the food processing, cosmetics and pharmaceutical Industries.

Mechanical seal Option
STUR-10 Mini Lobe Pump With 5 Leave Rotors With Tri Clamp Inlet Outlet 1

Principles
1. As the lobes rotates, the space on the suciton side increasese as one lobe is distanced from another, thus creating a partial vacuum which draws the fluid in to the pump chamber.
2. As they are rotated by the shafts,each lobe is consecutively filled and the fluid is displaced to the delivery side.The small gaps between the robes and between the lobes and the walls of the pump body ensure that the spaces are duly filled.
3. The pump housing is ompletely filled and the fluid escapes through the teeth of the lobes and is forced against the walls of the spaces. Which contributes to the pump aciton

Lobe pump technical selection table

STUR-10 Mini Lobe Pump With 5 Leave Rotors With Tri Clamp Inlet Outlet 2

Pump connection

STUR-10 Mini Lobe Pump With 5 Leave Rotors With Tri Clamp Inlet Outlet 3

MINI LOBE PUMP MOTOR

STUR-10 Mini Lobe Pump With 5 Leave Rotors With Tri Clamp Inlet Outlet 4

STUR-10 Mini Lobe Pump With 5 Leave Rotors With Tri Clamp Inlet Outlet 5

Pump Curve

STUR-10 Mini Lobe Pump With 5 Leave Rotors With Tri Clamp Inlet Outlet 6
NNEED MORE INFORMATION, PLEASE CONTACT DONJOY
