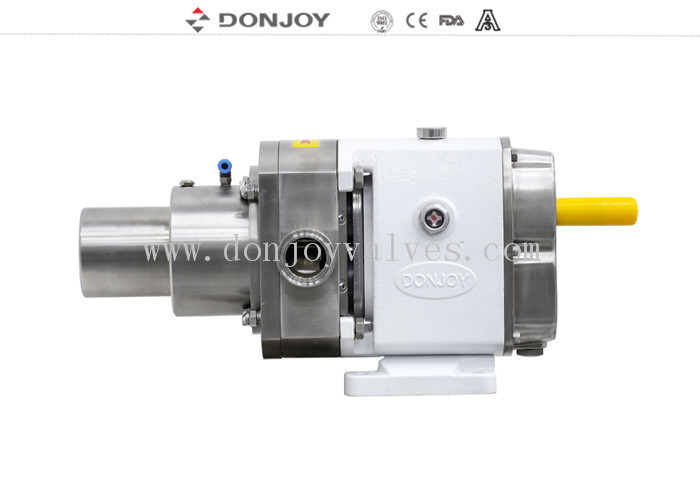

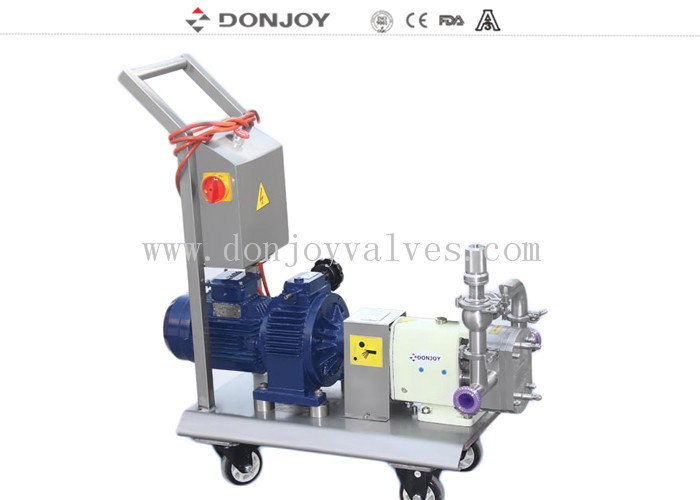

SS316L DONJOY TUL-80 rotary lobe pump with Mechanical motor and trolley

Large Image : SS316L DONJOY TUL-80 rotary lobe pump with Mechanical motor and trolley

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	TUL-80

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	10-30 working days
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	20 sets 30 working days

Contact Now

Detailed Product Description

Materials:	SS316L / 1.4404	Type:	TUL - 80
Operation:	Mechanical ABB Motor	Mechanical:	Flush Mechanical Seal / Double Seal
Connection:	3" Clamped	Power:	380v / 50HZ
Feature:	Mechanical Stepless Speed
Highlight:	self priming pump , high pressure pumps

SS316L DONJOY TUL-80 rotary lobe pump with Mechanical motor and trolley

Description
Options
1. Mechanical seal: SIC/SICE/EPDM, TC/TC,EPDM
2. Single seal, Double Mechanical Seal
3. Rotors: 2 leave rotor, 3 leave rotors, Butterfly rotors, Single Butterfly rotors
4. Voltage(v)220-240, 360-400, 420-460, 630-690
5. Relief valve at front cover r external by –pass
6. Built-in safety valve
7. End-face heat jacket
8. Complete heat jacket
9. Vertical TUR Series or Horizontal TUL Series
10. Different Drives and Fixes
11. Assembly on a stainless steel baseplate
12. Motor Type B5 motor frequency 50HZ, 60HZ

Specifications

Product Name:	SS316L TUL-80 mechanical stepless speed lobe pump with Mechanical motor for regulating fluid
Material:	SS304/SS316L/1.4301/1.4404
Max. Flow:	62m3/h / 395 GPM
Max.pressure:	12bar/ 174PSI
Max. working temperature:	150 C / 302 F
Max. rev:	1450 rmp
Rotor Type:	2-leaves, 3-leaves, butterfly, signal butterfly
Mechanical seal:	SIC/SiC/EPDM(Standard)
Motor power:	1.5kw, 2.2kw, 3kw….11kw
Sealing option:	Sanitary single mechanical seal/ Double mechanical seal with cooling system
Voltage:	110V, 220V, 380V
Motor:	ABB,SEW, 50hz/ 60hz
Surface treatment:	Inner polished and Sandblast outside
Availably connection:	Clamp, Thread Butt weld, Flange
Availably standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Electic
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc

Design and Features
1. Horizontal TUL, Vetrical TUR
2. Bare-Shaft Consturction
3. Hygienic Design of the attachement of the rotors
4. Sanitary Mechanical Seal, Easy cleaning and maintenace
5. Applied to CIP Cleaning and sic Sterlization
6. according to USA 3A Standard

Applications
This pump is deal for the transfer of viscous as well as low-wiscous media in the food processing, cosmetics and pharmaceutical Industries.

Principles
1. As the lobes rotates, the space on the suciton side increasese as one lobe is distanced from another, thus creating a partial vacuum which draws the fluid in to the pump chamber.
2. As they are rotated by the shafts,each lobe is consecutively filled and the fluid is displaced to the delivery side.The small gaps between the robes and between the lobes and the walls of the pump body ensure that the spaces are duly filled.
3. The pump housing is ompletely filled and the fluid escapes through the teeth of the lobes and is forced against the walls of the spaces. Which contributes to the pump aciton

Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

Delivery details
Usually within 20 days after receiving T/T payment
