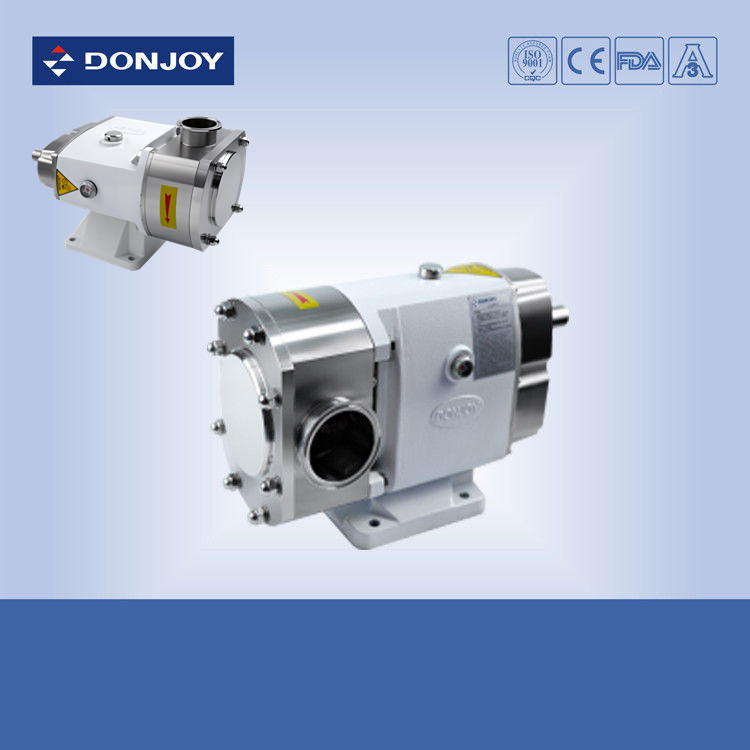

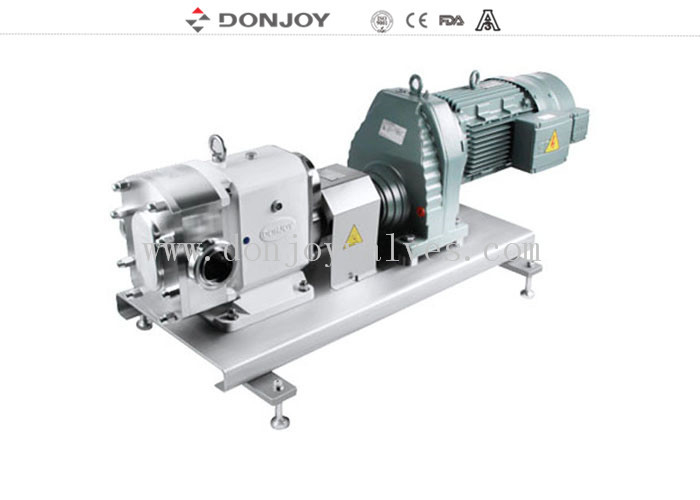

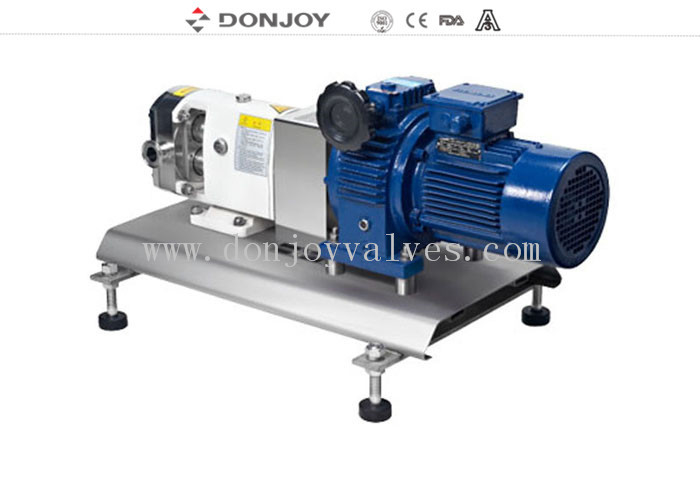

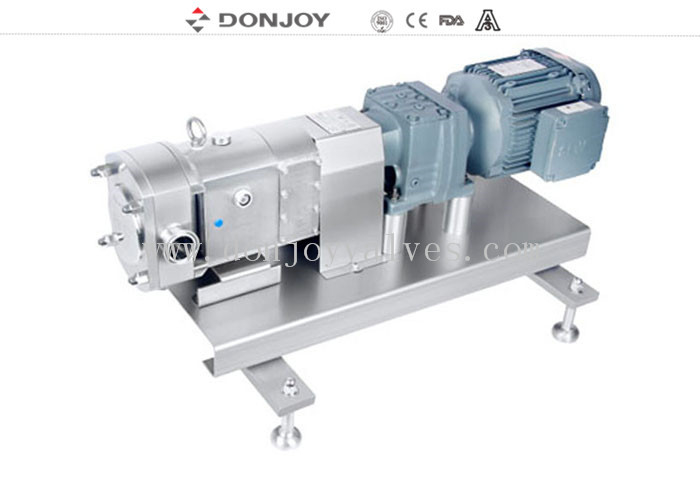

Donjoy TUL-25 horizontal rotor lobe pump with butterfly rotors and signle seal

Donjoy TUL-25 horizontal rotor lobe pump with butterfly rotors and signle seal

self priming pump

lobe rotary pump

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

TUL-25

Contact Us

Request A Quote
Product Details
Materials:
Rotor Pump Of Sanitary Grade
Type:
TUL - 25
Operation:
Mechanical ABB Motor
Mechanical:
Flush Mechanical Seal / Double Seal
Connection:
2" Clamped
Power:
380v / 50HZ
Medium:
Medicine And Fluid Etc.
Structure:

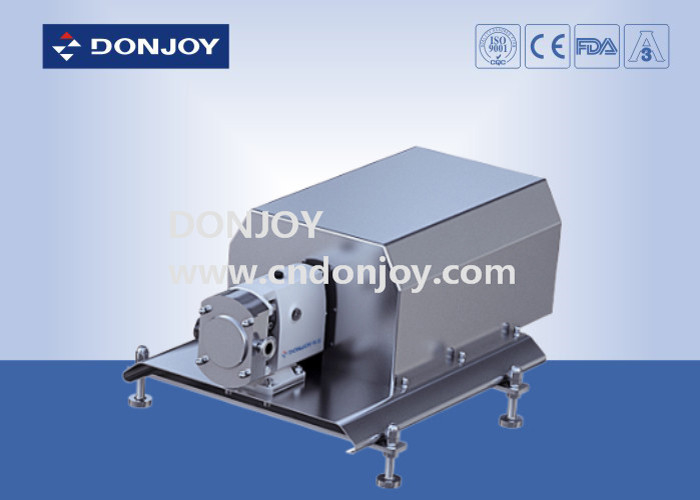

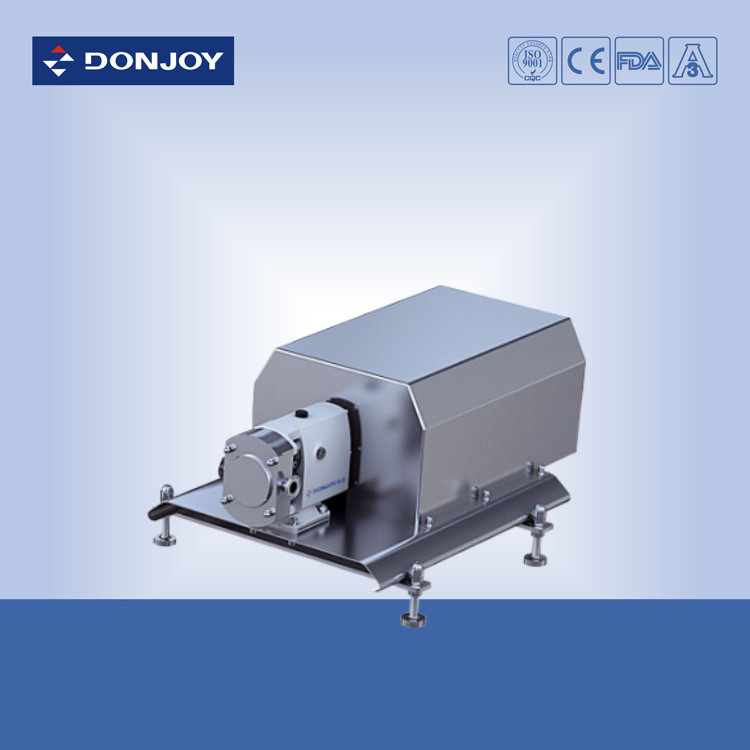

With Cover
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

Donjoy TUL-25 horizontal rotor lobe pump with butterfly rotors and signle seal



Description

Options

1. Mechanical seal: SIC/SICE/EPDM, TC/TC,EPDM

2. Single seal, Double Mechanical Seal

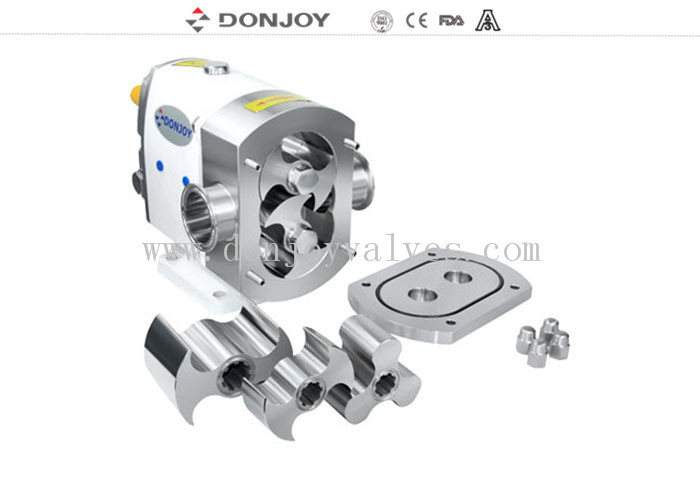

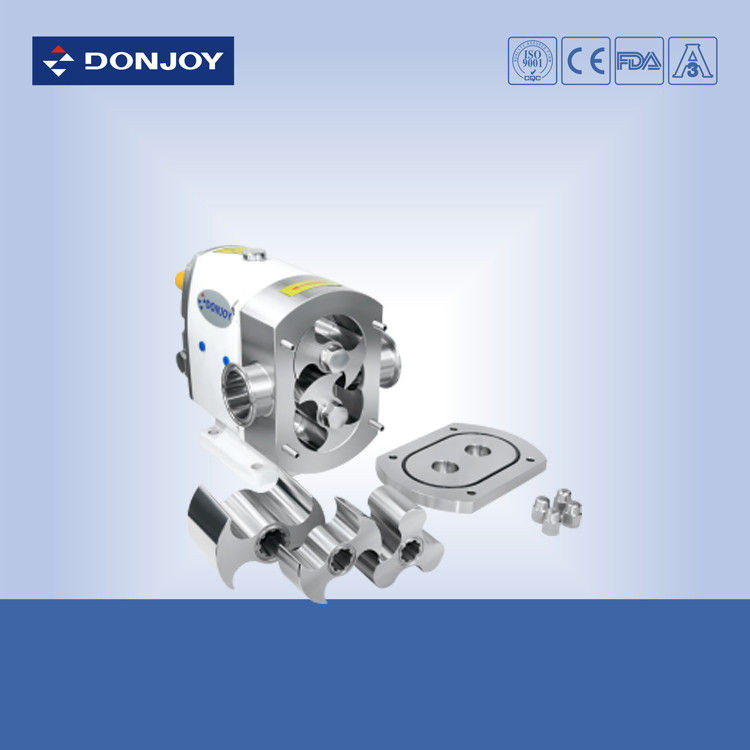

3. Rotors: 2 leave rotor, 3 leave rotors, Butterfly rotors, Single Butterfly rotors

4. Gasket: FPM(Viton),NBR, EPDM

5. Relief valve at front cover r external by –pass

6. Built-in safety valve

7. End-face heat  jacket

8. Complete heat jacket

9. Vertical TUR Series or Horizontal TUL Series

10. Connection: Clamp(DIN32676,3A,ISO),Threaad(DIN,SMS,RJT,IDF),Butt weld, Flange



Specifications

Product Name:

SS316L TUL-25  horizontal rotor pump with  protector cover  for transfer  medicine

Material:

SS304/SS316L/1.4301/1.4404

Seal Material:

SIC/SIC/EPDM (Standard, FDA approval)

Max. Flow:

62m3/h / 395 GPM

Max.pressure:

12bar/ 174PSI

Max. working temperature:

150 C / 302 F

Max. rev:

1450 rmp

Rotor Type:

2-leaves, 3-leaves, butterfly, signal butterfly

Mechanical seal:

SIC/SiC/EPDM(Standard)

Voltage:

110V, 220V, 380V

Motor:

ABB,SEW, 50hz/ 60hz

Surface treatment:

Inner polished and Sandblast outside

Availably connection:

Clamp, Thread Butt weld, Flange

Availably standard:

DIN, SMS, 3A, RJT, ISO/IDF

Operated:

Electic power

Sanitary certification:

3A, FDA, ISO9001/2008

Design: Hygienic Design of the attachement of the rotors

Application:

Flow control and regulation



Design and Features

1. Horizontal TUL, Vetrical TUR

2. Bare-Shaft Consturction

3. Hygienic Design of the attachement of the rotors

4. Sanitary Mechanical Seal, Easy cleaning and maintenace

5. Applied to CIP Cleaning and sic Sterlization

6.  according to USA 3A Standard



Applications

This pump is deal for the transfer of viscous as well as low-wiscous media in the food processing, cosmetics and pharmaceutical Industries.



Principles

1. As the lobes rotates, the space on the suciton side increasese as one lobe is distanced from another, thus creating a partial vacuum which draws the fluid in to the pump chamber.

2. As they are rotated by the shafts,each lobe is consecutively filled and the fluid is displaced to the delivery side.The small gaps between the robes and between the lobes and the walls of the pump body ensure that the spaces are duly filled.

3. The pump housing is ompletely filled and the fluid escapes through the teeth of the lobes and is forced against the walls of the spaces. Which contributes to the pump aciton



Competitive Advantage

“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
