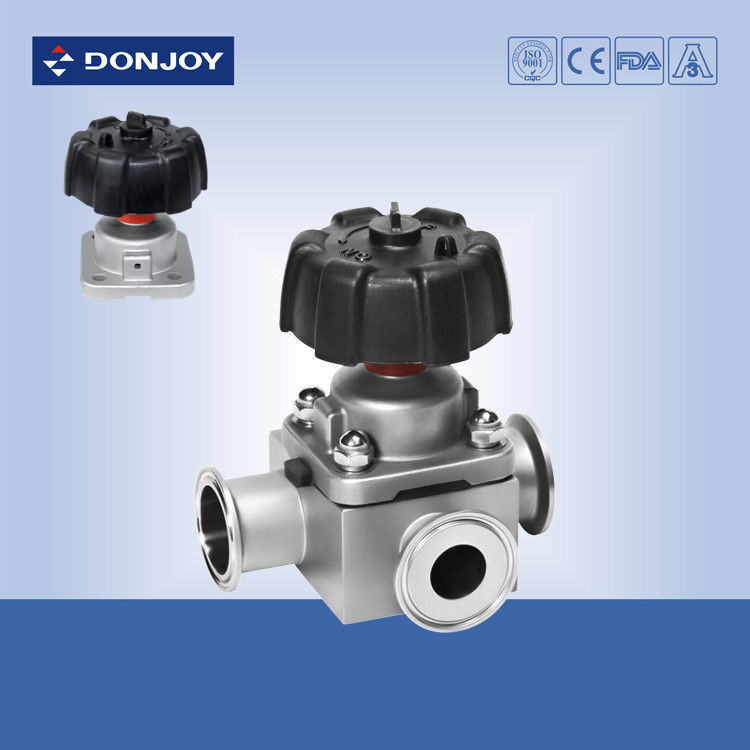

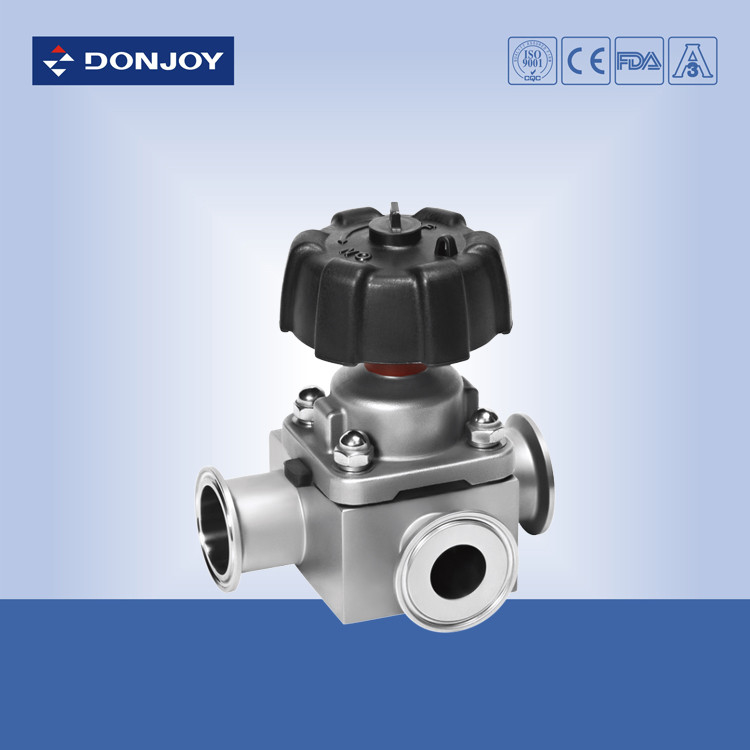

316L SS 1.5inch 3 way Clamp Sanitary Diaphragm Valve for phamacy hygienic process

316L SS 1.5inch 3 way Clamp Sanitary Diaphragm Valve for phamacy hygienic process

diaphragm check valve

3 way diaphragm valve

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Manual Sanitary Tee Diaphragm Valve
SS316L / 1.4404
1" - 4''
Plastic Handwheel
Single Silicon / EPDM + PTFE / Double Piece Of PTFE + EPDM
Multi - Combination
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

316L SS 3 way Clamp Sanitary Diaphragm Valve for phamacy hygienic process

Product Name:

3 way Diaphragm Valve

Valve Body Material:


Seal Material:

Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM

MaxWorking Pressure:


Max.Working Temperature:

150 degree C

Availably  size:

1”-4”, DN25-DN100

Availably connection:

Clamp/weld/thread/special connection




Smart valve positioner / C-TOP control / position sensor


3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Application scope:

Dairy,food, beverage, pharmacy, cosmetic etc

GMP structure:

G1.1 / G1.2 / G2.1 / G2.2

SAP structure:

S1.1 / S1.2 / S2.1 / S2.2


Diaphragm valves, no matter be operated manually or pneumatically, are specialized to be used in the sanitary and aseptic process in pharmaceutical industry.
The valve is excellent for flow control as well as for ON / OFF duties.
Compared with other valves, the diaphragm valve is more easilier to be cleaned. It could process the material with particles better. And the phenomenon of cavitation is less than before during the application of flow control.

3A / BPE / DIN / ISO / IDF
Available structure
Straight, tee, U-type, tank bottom

 Various configuration of Diaphragm valve
 1.      Didaphragm valve with Pisitioner / Process Controller (IL-TOP)
 2.      Diaphragm valve with Control Unit (C - Top)
 3.      Valve position Regulator
 4.      Position Sensor Module
 5.      Plastic Handle
 6.      Stainless steel handle
 7.      Stianless steel acutor
 8.      Electric Diaphragm valve
 9.      Plastic Acutor
10.    Body: Casting / Forging

Valve Body:

Forging body blank is through a piece of stainless steel ingot, in the forging process, alongwith the high temperature forging provide, through extrusion blank shape change, through the forging after bodydendity higher, the structure is more uniform, no sand hole and other impurities. Then through theprocessing center carry on the high precision machining.
Casting body is made by the mould paraffin wax model, paraffin wax model infiltratiion in ceramic, to letthe whole body wax mold surface form a layer of strong ceramic. Melt wax modl,then into the melting ofthe stainless steel solution, after cooling knock off the appearance of ceramic, blank body is made up.Casting size is very accurate, the outward apperance is smmoth, clean and tidy.

Diaphragm :
Single Seal : For EPDM the temperature range about -10 to 120degree, And it is suitable for use in vacuum environment

EPDM+PTFE (Adhesive) : Temperature is the same with Single sea, But For the PTFE diaphragm with high chemical resistance, High Stability, Good Flexibility, Long life,high Sealing, No cold Degeneration.It also can use for Steam disinfection System.

EPDM+PTFE(Separate), The Max Temperature can suffer 150 degree can can work in bad conditions
And when you asked the quotation and didn’t mark the request, we will provide the EPDM+PTFE(Adhesive) one

About the treatment : If for mechanical polished : Ra about 0.3 um , If electric polished : Ra about 0.25um. Also can according customer request


Advantage of our Gasket

1.The valve body and the diaphragm design have a limited set of sleeves, which can be completed without professionals

2.A raised part is designed between the valve body and the diaphragm to prevent the risk of residue

3.The manual diaphragm valve is designed with a limit function to prevent the diaphragm from being damaged due to different tightening torques

4.Fully degrease valve (clean and can be used without cleaning)

5.Manual, pneumatic, electric, interchangeable without special tools and professionals

6.We have 3A, CE Certificate, FDA. And the gasket import the Denmark.

7.Long life , Through the Test it can operation about 3 million times

 Proudct display

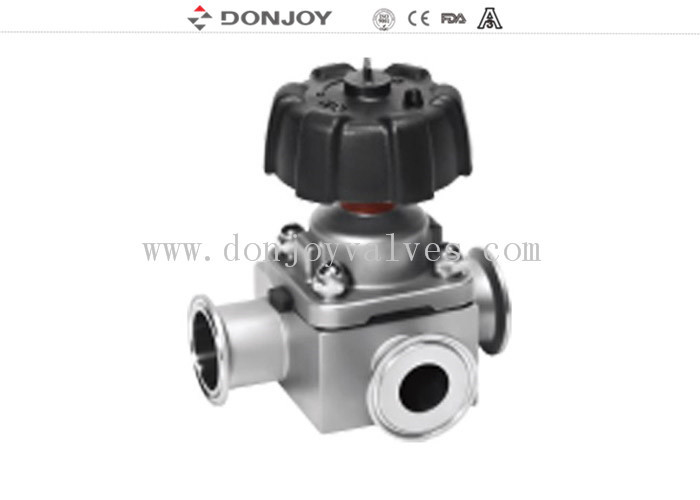

316L SS 1.5inch 3 way Clamp Sanitary Diaphragm Valve for phamacy hygienic process 0
