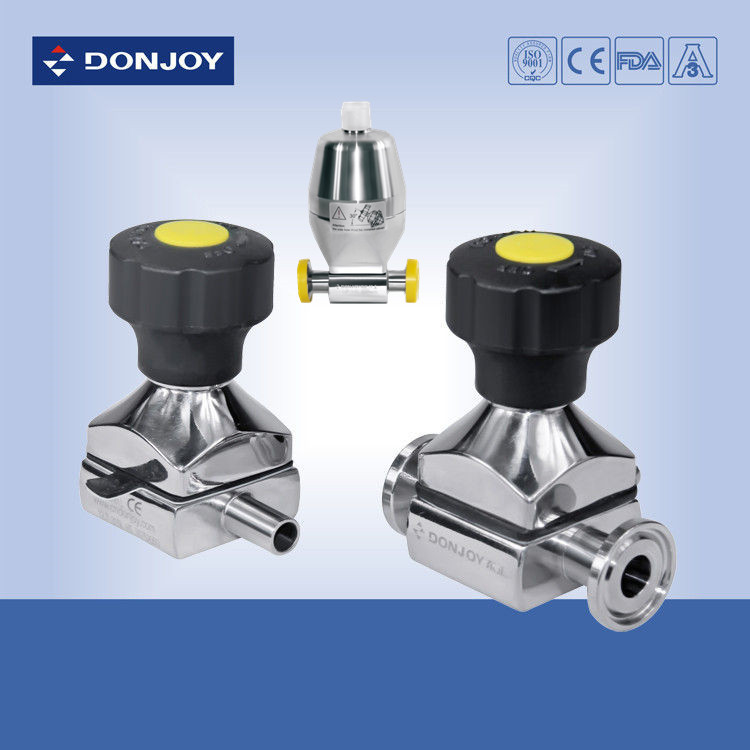

Mini Direct way Clamp Sanitary Diaphragm Valve with plastic handwheel

Large Image : Mini Direct way Clamp Sanitary Diaphragm Valve with plastic handwheel

Product Details:

Place of Origin:	China
Brand Name:	Donjoy
Certification:	CE,3A,FDA
Model Number:	NO.MINI - ZZ - K

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	carton box
Payment Terms:	T/T, LC, Credit Card

Contact Now

Detailed Product Description

Product Name:	Mini Pneumatic Diaphragm Valve With Plastic Handwheel	Suitable Temperature:	-10 To 120 Degree (EPDM)
Operation:	Plastic Handwheel	Gasket Optional:	EPDM/ SILICONE/ FPM
Surface Polishing:	Ra<0.8um	Connection:	Welding/clamp/flange/ Thread
Highlight:	diaphragm check valve , 3 way diaphragm valve

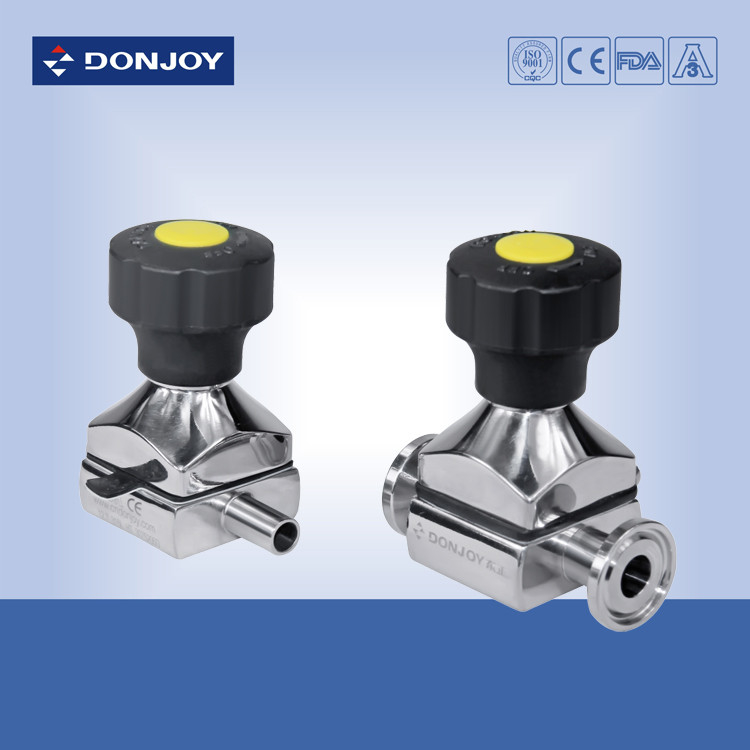

Mini Direct way Clamp Sanitary Diaphragm Valve with plastic handwheel

Specifications

Product Name:	316L SS Mini Direct way Clamp Diaphragm Valve
Valve Body Material:	SS316L
Seal Material:	Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM
MaxWorking Pressure:	8 Bar
Max.Working Temperature:	150 degree C
Availably size:	1/4”-3/4”, DN6-DN15
Availably connection:	Clamp/weld/thread/special connection
Availably standard:	3A/BPE/DIN/ISO/IDF
Operated:	Pneumatic,Manual
Availably structure:	Straight, tee, U-type, tank bottom
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Leading design:	Dead conner ＜ 3D
Various combinations:	GMP and SAP structure

Description

Various configuration of Diaphragm valve

1. Didaphragm valve with Pisitioner/Process Controller(IL-TOP)

2. Diaphragm valve with Control Unit(C-Top)

3. Valve position Regulator

4. Position Sensor Module

5. Plastic Handle

6. Stainless steel handle

7. Stianless steel acutor

8. Electric Diaphragm valve

9. Plastic Acutor

10. Body: Casting / Forging

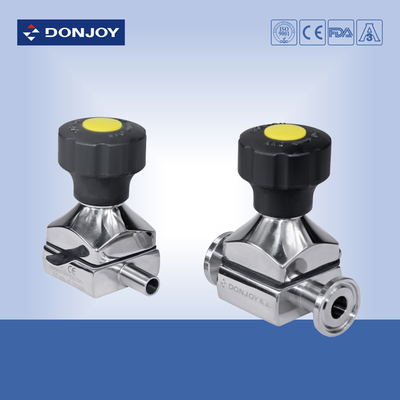

Mini - type diaphragm valve - with various combination

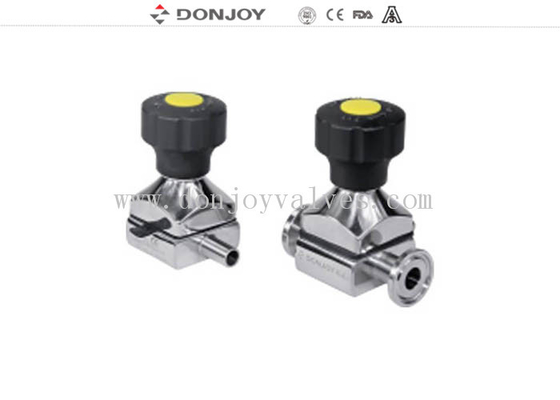

Mini Direct way Clamp Sanitary Diaphragm Valve with plastic handwheel 0
