1/4'' - 3/4'' 316L Mini - type Sanitary Diaphragm Valve with manual , pneumatic

1/4'' - 3/4'' 316L Mini - type Sanitary Diaphragm Valve with manual , pneumatic

    • 1/4'' - 3/4'' 316L  Mini - type Sanitary Diaphragm Valve with manual , pneumatic
    • 1/4'' - 3/4'' 316L  Mini - type Sanitary Diaphragm Valve with manual , pneumatic
    • 1/4'' - 3/4'' 316L  Mini - type Sanitary Diaphragm Valve with manual , pneumatic
    • 1/4'' - 3/4'' 316L  Mini - type Sanitary Diaphragm Valve with manual , pneumatic
  • 1/4'' - 3/4'' 316L  Mini - type Sanitary Diaphragm Valve with manual , pneumatic

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Mini - Type Diaphragm Valve Of Direct Way Materials: SS316L
    Size: 1/4''- 3/4'', DN6 - DN15 Operation: Manual Or Pneumatic Actuator
    Connection: Clamp / Weld / Thread Gasket: EPDM + PTFE
    Function: Small Flow Controlling And Conveying Pressure: 10bar
    High Light:

    diaphragm check valve

    ,

    sanitary sample valve

    1/4'' - 3/4'' 316L Mini - type Sanitary Diaphragm Valve with manual , pneumatic

    Tag
    Mini - type manual Sanitary Diaphragm Valve
    ​Mini - type pneumatic Sanitary Diaphragm Valve
    ​Mini - type Sanitary Diaphragm Valve


    Specifications

    Product Name:

    Mini - type Sanitary Diaphragm Valve

    Valve Body Material:

    SS316L

    Seal Material:

    Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM

    MaxWorking Pressure:

    8Bar

    Max.Working Temperature:

    150 degree C

    Availably  size:

    1/4”-3/4”, DN6-DN15

    Availably connection:

    Clamp/welding/thread/special connection

    Availably standard:

    3A/BPE/DIN/ISO/IDF

    Operated:

    Manual,Pneumatic

    Model of mini actuator:

    MNI - VGM0Q2 / MINI - VGM0Q1

    Model of mini handwheel:

    MINI - VGM0S2 / MINI - VGM0S1

    Availably structure:

    Straight, tee, U-type, tank bottom

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc


    Applications
    Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.
    The valve is excellent for flow control as well as open/close control.
    The diaphragm valves are better in feature of flow in comparison with other valves. It is eaiserto clean up and better to process the substance with particles.
    The phenomenon of air pocket is rare during application of flow control.

    Description
    Various configuration of Diaphragm valve
    1.      Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
    2.      Diaphragm valve with Control Unit(C-Top)
    3.      Valve position Regulator
    4.      Position Sensor Module
    5.      Plastic Handle
    6.      Stainless steel handle
    7.      Stianless steel acutor
    8.      Electric Diaphragm valve
    9.      Plastic Acutor
    10.    Body: Casting / Forging

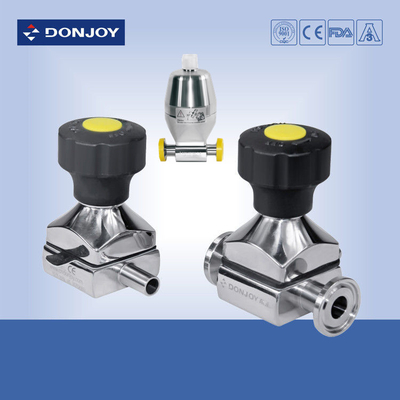

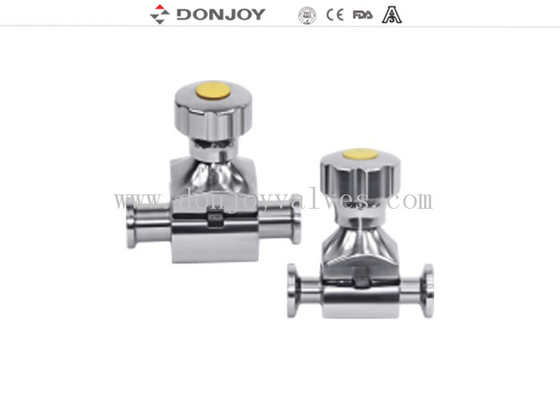

    Mini - type diaphragm valve

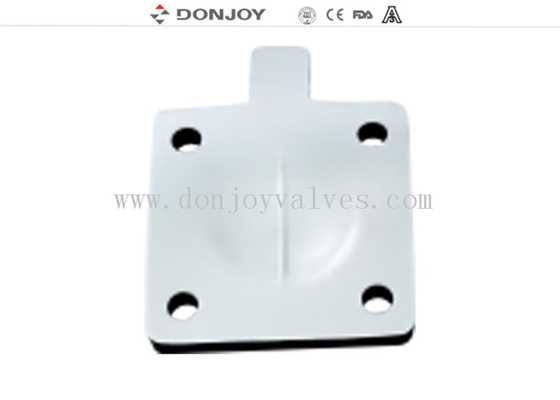

    Mini type diaphragm gasket ( EPDM, SILICONE,FPM, EPDM+PTFE)
    Sepcification: 1/4"-3/4", DN6-DN15
    Temperature :-20 to 150degree
    1/4'' - 3/4'' 316L  Mini - type Sanitary Diaphragm Valve with manual , pneumatic 0
    Cetificate of Diaphragm valve
    1.All synthetic resin and additive are comply with FDA Certification.
    2.Material chemical composition, physical properties and manufacturing process are documented.
    3.3-a consistency the authentication
    4.CE-PED/97/23/EC
    5.EN 10204-3.1

    Surface Treatment :
    1.For mechanical polished : Mirror inside and outside
    1/4'' - 3/4'' 316L  Mini - type Sanitary Diaphragm Valve with manual , pneumatic 1

     Product drawing (Micro actuator)

    1/4'' - 3/4'' 316L  Mini - type Sanitary Diaphragm Valve with manual , pneumatic 2

    1/4'' - 3/4'' 316L  Mini - type Sanitary Diaphragm Valve with manual , pneumatic 3

    Product drawing (Mini diaphragm vavle)


    1/4'' - 3/4'' 316L  Mini - type Sanitary Diaphragm Valve with manual , pneumatic 4


    If Need more inforamtion, please contact us directly.
