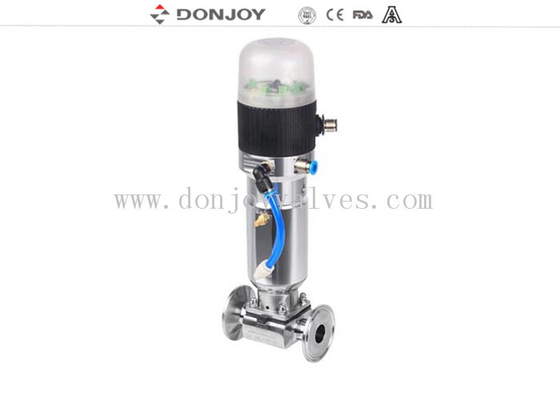

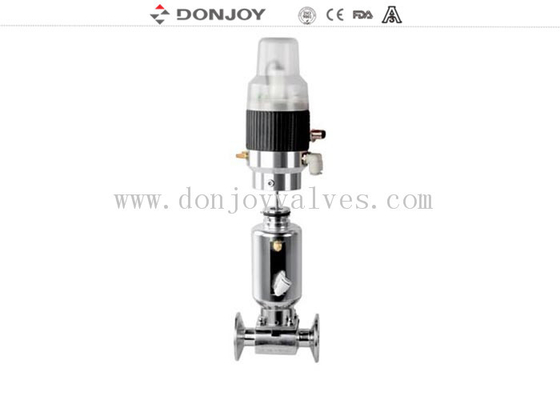

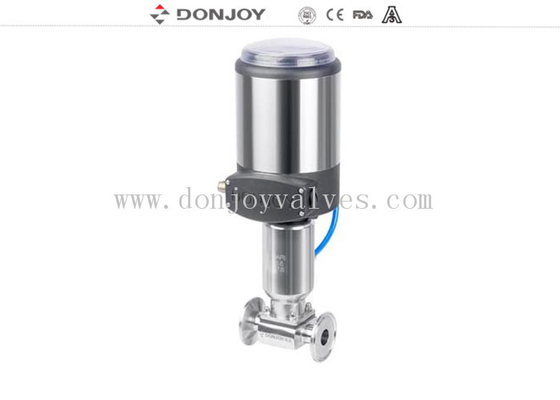

Mini Direct way Clamp Sanitary Pneumatic Diaphragm Valve with Control Unit

Large Image : Mini Direct way Clamp Sanitary Pneumatic Diaphragm Valve with Control Unit

Product Details:

Place of Origin:	China
Brand Name:	Donjoy
Certification:	CE,3A,FDA
Model Number:	NO.MINI - VGM0S1, NO.ZZ - K

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	carton box
Payment Terms:	T/T, LC, Credit Card

Contact Now

Detailed Product Description

Product Name:	Sanitary Mini Diaphragm Valve	Size:	1/4'' - 3/4''
Operation:	Stainless Steel Handwheel	Connection:	With Clamp Or Be Welded Etc.
Type:	Mini Type	Medium:	Fluid
Conveying Direction:	In Direct Way
Highlight:	sanitary sample valve , 3 way diaphragm valve

Mini Direct way Clamp Sanitary Diaphragm Valve with Stainless Steel handwheel

Specifications

Product Name:	316L SS Mini Direct way Clamp Diaphragm Valve with Stainless Steel handwheel for phamacy hygienic process
Valve Body Material:	SS316L
Seal Material:	Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM
MaxWorking Pressure:	8Bar
Max.WorkingTemperature:	150 degree C
Available size:	1/4”-3/4”, DN6-DN15
Available connection:	Clamp/weld/thread/special connection
Available standard:	3A/BPE/DIN/ISO/IDF
Operated:	Manual,Pneumatic
Available structure:	Straight, tee, U-type, tank bottom
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Optional:	Plastic cap on the outlets of valve
Actuator type:	Pneumatic with air input / output

Description

Various configuration of Diaphragm valve

1. Didaphragm valve with Pisitioner/Process Controller(IL-TOP)

2. Diaphragm valve with Control Unit(C-Top

3. Valve position Regulator

4. Position Sensor Module

5. Plastic Handle

6. Stainless steel handle

7. Stianless steel acutor

8. Electric Diaphragm valve

9. Plastic Acutor

10. Body: Casting / Forging

Packaging Details

Bubble pack for each valve. Outside packing are carton or plywood cases.

Or as per the request of customers.

Delivery details

Usually within 20 days after receiving T / T down payment.

Mini - type diaphragm valve

Mini Direct way Clamp Sanitary Pneumatic Diaphragm Valve with Control Unit 0
