| Place of Origin: | China |
| Brand Name: | DONJOY |
| Certification: | CE,3A,FDA |
| Model Number: | NO. |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 10-30 working days |
| Payment Terms: | T/T, LC, Credit Card |
| Supply Ability: | 20 sets 30 working days |
| Product Name: | Pneumatic Radial Diaphramg Valve | Outlet Connection: | Clamp Or Welding |
|---|---|---|---|
| Structure: | Multi-port Valve Body | Clamp: | Ss 316L |
| Standard: | 3A/BPE/DIN/ISO/IDF | Delivery: | Usually Within 20 Days After Reciveing T/T Down Payment |
| High Light: | sanitary sample valve,3 way diaphragm valve |
||

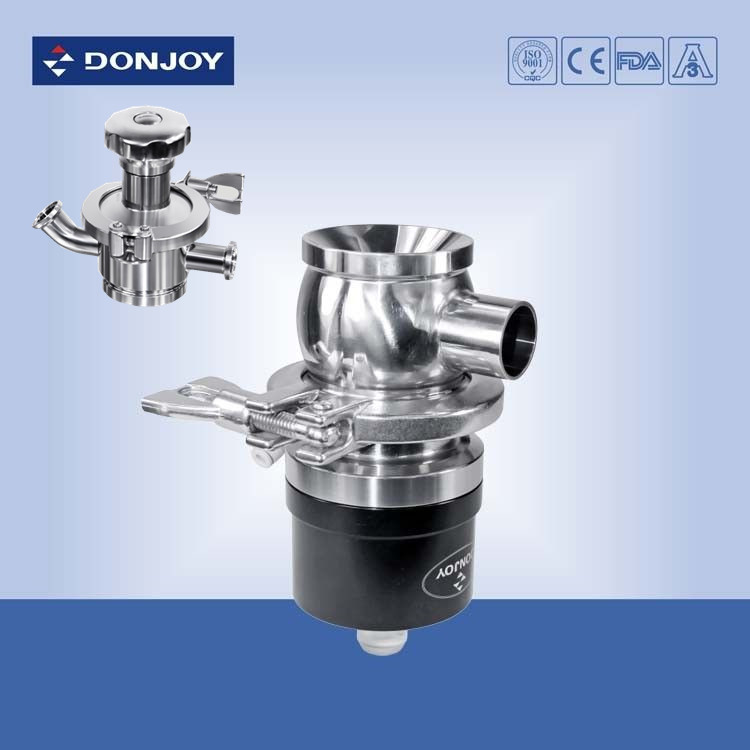

SS304 / 316 Pneumatic bottom tank valve with Plastic Actuator Welding Ends
Specification
|
Product Name: |
Pneumatic Tank Bottom Diaphragm Valve for phamacy hygienic process |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
Single sillcone gasket/ Adhesive PTFE + EPDM / Two pieces PTFE + EPDM |
|
MaxWorking Pressure: |
6 Bar |
|
Max.Working Temperature: |
120 degree C |
|
Availably size: |
3/4''-2.5'', DN20-DN65 |
|
Availably connection: |
Clamp/weld/thread/special connection |
|
Availably standard: |
3A/BPE/DIN/ISO/IDF |
|
Operated: |
Pneumatic |
|
Air pressure of actuator: |
5 bar - 6 bar |
|
Feature: |
Manual or pneumatic operation is interchangable. |
|
Availably structure: |
Straight, tee, U-type, tank bottom |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
Description
Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner/Process Controller (IL-TOP)
2. Diaphragm valve with Control Unit(C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor
10. Body: Casting / Forging
Application scope
In the industries of Dairy,food, beverage, pharmacy, cosmetic etc.
Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
Product display
