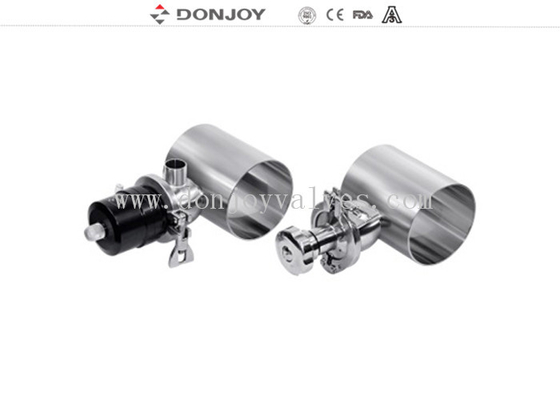

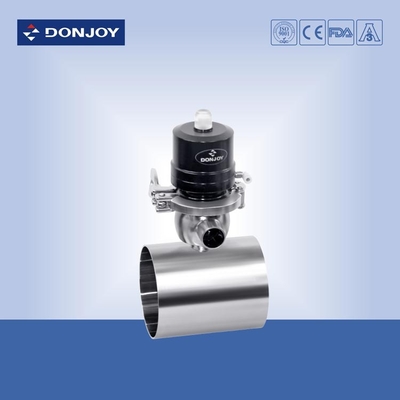

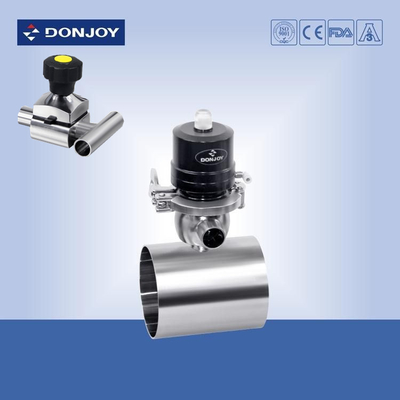

Stainless steel 316 Pneumatic Radial Diaphragm Valve flow control

Stainless steel 316 Pneumatic Radial Diaphragm Valve flow control

    • Stainless steel 316 Pneumatic Radial Diaphragm Valve flow control
    • Stainless steel 316 Pneumatic Radial Diaphragm Valve flow control
    • Stainless steel 316 Pneumatic Radial Diaphragm Valve flow control
  • Stainless steel 316 Pneumatic Radial Diaphragm Valve flow control

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Pneumatic Radial Diaphramg Valve With Cylindrical Port Conveying Port: 1 Or 2
    Logo: Donjoy Or Customized Feature: Regulating Fluid
    Position Of Actuator: Be Downward Max Pressure: 6bar
    High Light:

    sanitary sample valve

    ,

    3 way diaphragm valve

    Stainless steel 316 Pneumatic Radial Diaphragm Valve flow control



    Specifications

    Product Name:

    Pneumatic Radial Diaphragm Valve for phamacy hygienic process

    Valve Body Material:

    SS316L

    Seal Material:

    Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM

    MaxWorking Pressure:

    6 Bar

    Max.Working Temperature:

    120 degree C

    Availably  size:

    3/4''-2.5'', DN20-DN65

    Availably connection:

    Clamp/weld/thread/special connection

    Availably standard:

    3A/BPE/DIN/ISO/IDF

    Operated:

    Manual,Pneumatic

    Availably structure:

    Straight, tee, U-type, tank bottom

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc

    Logo of product:

    With "DONJOY" or customized

    Combination of valve and actuator:

    Flexible combination on valve body



    Description

    Various configuration of Diaphragm valve

    1.      Didaphragm valve with Pisitioner/Process Controller(IL-TOP)

    2.      Diaphragm valve with Control Unit(C-Top)

    3.      Valve position Regulator

    4.      Position Sensor Module

    5.      Plastic Handle

    6.      Stainless steel handle

    7.      Stianless steel acutor

    8.      Electric Diaphragm valve

    9.      Plastic Acutor

    10.    Body: Casting / Forging



    Certificate

    3A / 54-02 (1580), PED / 97 / 23 / EC, FDA. 177. 2600



    Packaging

    Bubble pack for each valve. Outside packing are carton or plywood cases.

    Or as per the request of customers.



    Delivery

    Usually within 20 days after receiving T/T down payment.



    Product drawing



    Stainless steel 316 Pneumatic Radial Diaphragm Valve flow control 0
