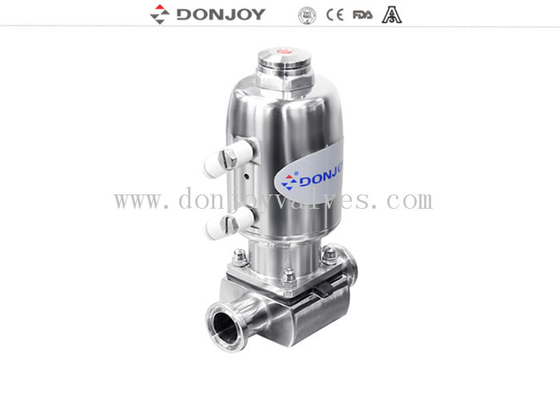

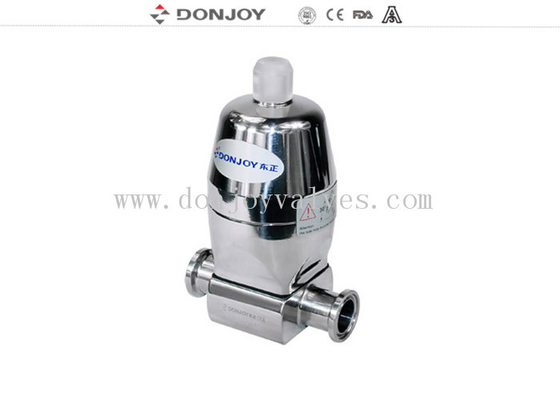

316L SS Direct way Clamp Sanitary Diaphragm Valve with Stainless steel actuator

Brand Name:	Donjoy
MOQ:	Negotiation
Price:	negotiation
Packaging Details:	carton box
Payment Terms:	T/T, LC, Credit Card

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,3A,FDA

Product Name:

Pneumatic Direct Way Diaphragm Valve

Materials:

SS316L / 1.4404

Size:

1'' - 4'', DN25 - DN100

Operation:

Stainless Steel Actuator

Connection:

Clamp / Weld / Thread

Gasket:

EPDM + PTFE

Valve Position:

Optional Combination

Pneumatic:

Double Location Cylinder

Highlight:

diaphragm check valve

sanitary sample valve

Product Description

DONJOY 316L SS Direct way Clamp Sanitary Diaphragm Valve with Stainless steel actuator

Tag
Sanitary Diaphragm Valve with Stainless steel actuator
Multi-function pneumatic diaphragm valve
Double location cylinder pneumatic diaphragm valve

Specifications

Product Name:	Donjoy Direct way Clamp Sanitary Diaphragm Valve with Stainless steel actuator
Valve Body Material:	SS316L
Seal Material:	Single sillcone gasket / Adhesive PTFE+EPDM /Two pieces PTFE+EPDM
MaxWorking Pressure:	8 Bar
Max.Working Temperature:	150 degree C
Availably size:	1''-4'', DN20-DN100
Availably connection:	Clamp/weld/thread/special connection
Availably standard:	3A/BPE/DIN/ISO/IDF
Operated:	Manual,Pneumatic
Availably structure:	Straight, tee, U-type, tank bottom
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Valve body:	Forging or casting
Configuration:	Flexible with various valve seat

Various configuration of Diaphragm valve

1. Didaphragm valve with Pisitioner/Process Controller (IL-TOP)

2. Diaphragm valve with Control Unit (C-Top)

3. Valve position Regulator

4. Position Sensor Module

5. Plastic Handle

6. Stainless steel handle

7. Stianless steel acutor

8. Electric Diaphragm valve

9. Plastic Acutor

10. Body: Casting / Forging

Multi-function diaphragm valve
The diaphragm valve has a double location cylinder,flow adjustable filling valve for rapid filling and prevent spillover or spatter material filling bottles

1# cylinder work flow as the largest

2# cylinder work flow to a minimum,also can through flow control device, regulating the flow of 2# cylinder at work

Technical Characteristics

Working Principle

Product drawings
