SS 316L pneumatic diaphragm valve for pharmaceutical industry

Large Image : SS 316L pneumatic diaphragm valve for pharmaceutical industry

Product Details:

Place of Origin:	China
Brand Name:	Donjoy
Certification:	CE,3A,FDA
Model Number:	12030902

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	carton box
Delivery Time:	10-30 working days
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	20 sets 30 working days

Contact Now

Detailed Product Description

Product Name:	Multiport Diaphragm Valve With Stainless Steel Handwheel	Materials:	SS316L / 1.4404
Size:	1"-3" DN25-DN80	Operation:	Stainless Steel Actuator
Connection:	Welding	Gasket:	EPDM + PTFE
Design Feature:	Dead Conner Minimized Design	Installation Of Handwheel:	On One Side Edge
Highlight:	diaphragm check valve , sanitary sample valve

SS 316L pneumatic diaphragm valve for pharmaceutical industry

Specifications

Product Name:	SS Sanitary Multiport Pneumatic Diaphragm Valve for pharmaceutical industry
Valve Body Material:	SS316L
Seal Material:	Single sillcone gasket/ Adhesive PTFE+EPDM/ Two pieces PTFE+EPDM
Max Working Pressure:	10 Bar
Max.Working Temperature:	130 degree C
Availably size:	1"-3" DN25-DN80
Availably connection:	Clamp/weld/thread/special connection
Availably standard:	3A/BPE/DIN/ISO/IDF
Operated:	Manual,Pneumatic
Availably structure:	Straight, tee, U-type, tank bottom
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Combination:	3 control valves, 5 ports
Structure:	Compact design

Description
Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
2. Diaphragm valve with Control Unit(C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor
10. Body: Casting / Forging

Max Working Pressure
10 Bar

Available structure
Clamped / welded / threaded / special connection

Available size
1" - 3" or DN25 - DN80

Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

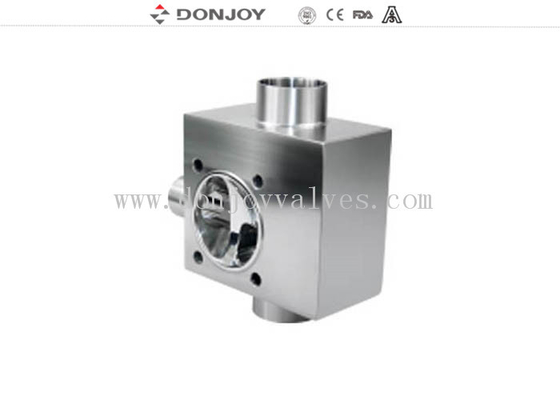

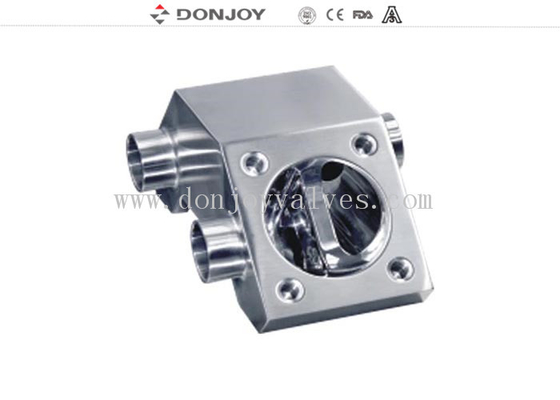

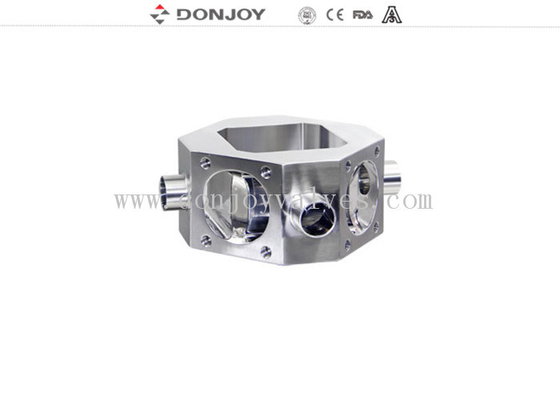

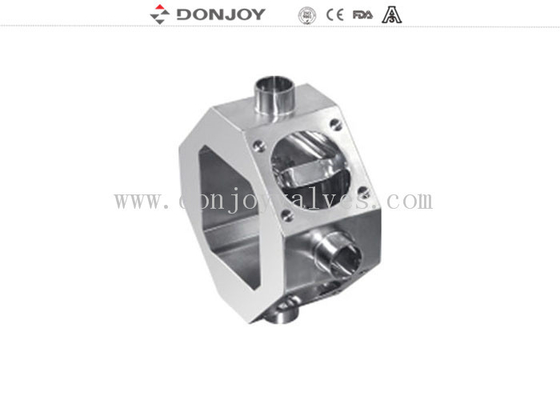

Product display
